LB104V03-A1 LG. LCD 10.4 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY
LB104V03-A1 LG. LCD 10.4 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY
LB104V03-A1 LG. LCD 10.4 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY
LB104V03-A1 LG. LCD 10.4 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY
LB104V03-A1 LG. LCD 10.4 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY
LB104V03-A1 LG. LCD 10.4 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY
LB104V03-A1 LG. LCD 10.4 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY
LB104V03-A1 LG. LCD 10.4 640(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
LG. LCD
Model Number :
LB104V03-A1
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
500PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
LB104V03-A1
BRAND :
LG. LCD
SIZE :
10.4INCH
BRIGHTNESS :
400CD/M2
Lamp Type :
WLED
RESOLUTION :
640(RGB)×480 (VGA) 76PPI
VIEWING ANGLEG :
60/60/40/50 (Typ.)(CR≥10)
TEMPERATURE RANGE :
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Description

LG. LCD LB104V03-A1 Application Details

Basic Detail : Manufacturer Model Name LB104V03-A1 1 Compatible
Panel Type a-Si TFT-LCD , LCM Another Name LB104V03 (A1)
Panel Size 10.4 inch Designed For
Maximum Ratings : OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C

LG. LCD LB104V03-A1 Optical Details

Basic Information : Luminance 400 cd/m² (Typ.) Contrast Ratio 300 : 1 (Typ.) (Transmissive)
Good View at 6 o'clock Response Speed 5/25 (Typ.)(Tr/Td) (ms)
Viewing Angle 60/60/40/50 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.295; Wy:0.325 Support Color 262K (6-bit)
Color Temperature 7588K White Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 60% sRGB 81% coverage
Adobe RGB 62% coverage DCI-P3 62% coverage
Rec.2020 44% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG. LCD LB104V03-A1 Mechanical Details

Pixel Features : Number of Pixel 640(RGB)×480 [VGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.110×0.330 mm Pixel Pitch(W×H) 0.330×0.330 mm [76PPI]
Physical Size : Active Viewing 211.2(W)×158.4(H) mm Overall Dim. 236(W)×180(H) mm
Bezel Opening 215.6(W)×163.0(H) mm Overall Depth 8.0/10.5 (Typ./Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style
Fixation : Side mounting holes (4-M2) on left, right bezel
Other Detail : Mass 490g (Max.) Surface Antiglare, Hard coating (3H)

LG. LCD LB104V03-A1 Interface Details

Signal Electrical : Input Current 175/200mA (Typ./Max.) Input Voltage 3.3V (Typ.)
Consumption 0.58/0.66W (Typ./Max.) Signal Interface Parallel RGB (1 ch, 6-bit)
Interface Features : Position Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
HRS KN10G-30S-1H 1 pcs 1.0 mm 30 pins DRGB-30P1C6B-110A

LG. LCD LB104V03-A1 Lightting Details

Lamp Features: Lamp Shape Straight Lamp Type CCFL Position Edge light type (Top and Bottom)
Exchange Replaceable Amount 2 pcs Life 40K(Min.) (Hours)
Lamp Electrical : Input Current 2.0/6.0/7.0mA (Min./Typ./Max.) Input Voltage 455/485/625V (Min./Typ./Max.)
Frequency 40/55/80KHz (Min./Typ./Max.) Turn-on Voltage 750/940V (Max.)(Ta=+25/0℃)
Consumption 5.8/6.4W (Typ./Max.)
Interface Features : Position Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST BHSR-02VS-1 2 pcs 3.5 mm 2 pins BLL-2PINS-HL
Backlight Driver : No

LG. LCD LB104V03-A1 Packing Details

Package Box : Amount Size (L×W×H) Weight
10 pcs / box 323×270×262 mm -

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

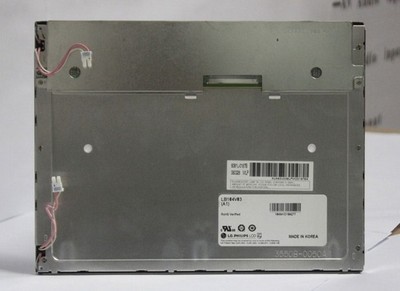

LB104V03-A1 LG. LCD 10.4

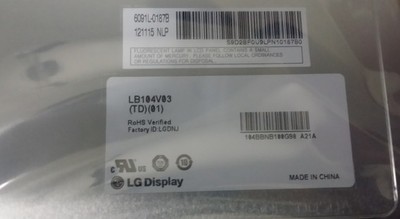

LB104V03-A1 LG. LCD 10.4
