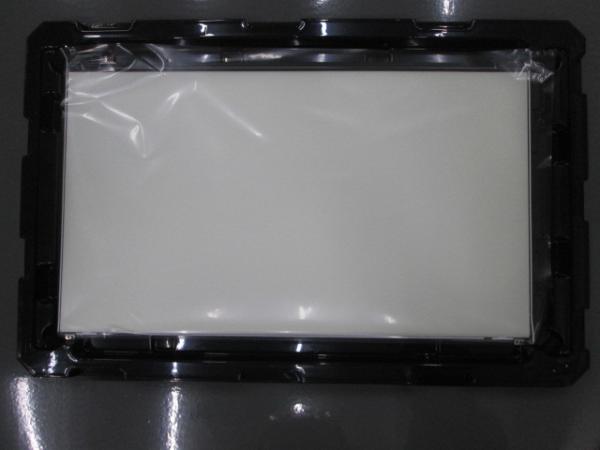

LP133WH2-SPB6 LG Display 13.3 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY
LP133WH2-SPB6 LG Display 13.3 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY
LP133WH2-SPB6 LG Display 13.3 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY
LP133WH2-SPB6 LG Display 13.3 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
LG DISPLAY
Model Number :
LP133WH2-SPB6
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
800PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
LP133WH2-SPB6
BRAND :
LG DISPLAY
SIZE :
13.3 inch
BRIGHTNESS :
250CD/M2
Lamp Type :
WLED
RESOLUTION :
1366(RGB)×768, WXGA, 118PPI
VIEWING ANGLEG :
85/85/85/85 (Typ.)(CR≥10)
TEMPERATURE RANGE :
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Description

LG Display LP133WH2-SPB6 Application Details

Basic Info :
Panel Brand

LP133WH2-SPB6Panel Model
Diagonal Size
13.3"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LP133WH2 (SP)(B6), LGD052E
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

1.0G (9.8 m/s²)Vibration Rating

LG Display LP133WH2-SPB6 Mechanical Details

Pixel Features :
Pixel Format
1366(RGB)×768, WXGA
Dot Pitch
0.0716×0.2148 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2148×0.2148 mm (H×V) [118PPI]
Mechanical Size :
Display Area
293.42×164.97 mm (H×V)
Bezel Area
296.45×168.3 mm (H×V)
Outline Dim.
306.3×195.2 mm (H×V)
Outline Depth
2.85 (Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Holes & Brackets :
Face mounting holes (8 pcs) on up, down slugs
Other Features :
Weight
275g (Max.)
Surface
Antiglare

LG Display LP133WH2-SPB6 Optical Details

Basic Information :
Brightness
250 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
35 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
47%
sRGB
65% coverage
Adobe RGB
49% coverage
DCI-P3
48% coverage
Rec.2020
35% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP133WH2-SPB6 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
12K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
6.0/12.0/21.0V (Min./Typ./Max.)
Current Input
198/213mA (Typ./Max.)
Consumption
2.37/2.55W (Typ./Max.)

LG Display LP133WH2-SPB6 Interface Detail

Signal Systerm :
eDP (1 Lane)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
215/245mA (Typ./Max.)
Consumption
0.70/0.90W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JAE
HD2S030HA1
0.5 mm
30 pins
1 pcs
EDP-30P1L-030A

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
