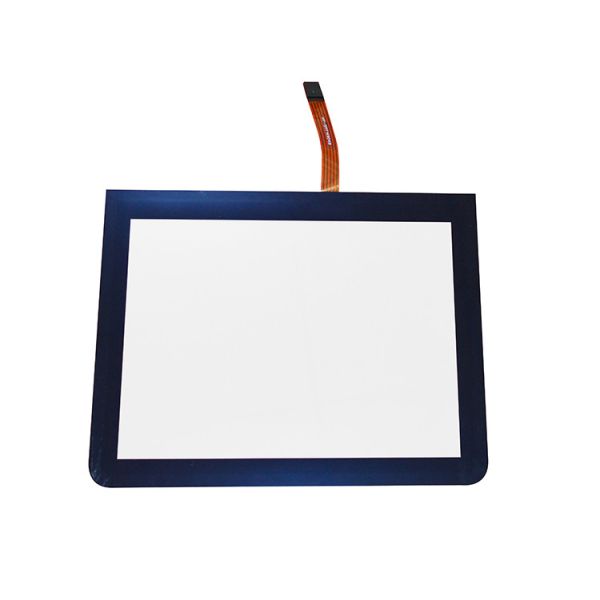

7 Inch Wire Resistive Touch Screen
7 Inch Wire Resistive Touch Screen
7 Inch Wire Resistive Touch Screen
7 Inch Wire Resistive Touch Screen
Specifications
Brand Name :
hainengzhichuang
Model Number :
custom
Place of Origin :
Shenzhen, China
MOQ :
custom
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Dimensions :
From 2'' to 24''
Conductive Film :
188 μm
Connector :
FPC, flexible printed circuit
Loop Resistance :
50~300Ω
Linearity :
≤1.5%
Insulation Resistance :
≥10MΩ, @25V (DC)
Chattering Time :
≤15ms
Response Time :
≤20ms
Description

Description:

7 inch wire Resistive Touch Screen for Car GPS navigation system

Specification:

Item Resistive Touch Screen
Dimensions From 2'' to 24''
Thickness 1.8mm or customize
Conductive Glass Thickness ITO 0.7mm, 1.1mm or 1.8mm
Conductive Film 188 μm
Structure Conductive film, ITO film
Insulation Distance 3 * 3mm
Connector FPC, flexible printed circuit
Electrical Performance
Loop Resistance 50~300Ω
Linearity ≤1.5%
Insulation Resistance ≥10MΩ, @25V (DC)
Maximum Operation Voltage 5V (DC), 1mA
Chattering Time ≤15ms
Response Time ≤20ms (from the touch moment to response)
Mechanical Behavior
Input Method Pen or Finger
Operation Force OD 2mm pen within 60g~150g pressure
Surface Hardness 3H
Transparency 83 ± 3% @550nm wave length
Environmental
Operation Temp -10~60°C
Storage Temp -20~70°C
Resistive Lifetime for Single Point > 1,000,000 times
Application

Telecommunication Devices

Telephone, Interphone, watch, radio, etc.

Home Appliances

Washing Machine, Refrigerator, Home Integrator

Industrial Control

Homotaxial Numerically-controlled machine tool

Instrument and Apparatus

Tester, Medical instruments

Vehical-mounted Digital

MP3, MP4 and vehical-mounted air conditioner

Mining

Mine's lamp charger, gas tester

Marine

Salinity tester

7 Inch Wire Resistive Touch Screen

Products quality assurance

(1) High-quality raw material supplier :

after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.

(2)Other materials:
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials
(3) Strict quality control:
Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC.
A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.

The terms of Shipping:

We will ship the items within 5 working days after the payment confirmed.
We can ship to you by DHL/FedEx/UPS/TNT/EMS. Please contact us directly and we will use your preferred ways.For the Countries & Regions where EMS cannot deliver,please choose other shipping ways.
We are not responsible for any accidents,delays or other issues caused by the forwarder.

Our Services:

programe evsluation
1 to 2 morking days
Drawings
2 to 3 working days
Customized products
3 to 4 weeks(after drawings confirmed)
Mass Production delivery
4 to 6 weeks
Software debugging
Capacity
100K per month(10.1 inches as a reference)
Process capability
G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF
Technical support
Engineers to provide door-to-door or remote access service within 24 hours
Stable supply chain for at least 3 years guarantee
One year warranty time for all of our products

FAQ:

Q1: What is the minimum order quantity?

Qty: 1 unit. Different order quantity different price.

Q2: What payment methods your company accept?

Refee: It’s usually wire transfer T/T. For partner relationship, we may consider other payment terms.

Q3: How long is the warranty time for your products?

We provide 1 year warranty for all of our products and supply life-time maintenance.

Q4: I haven't done business with your company before, how can i trust your company?

Our company is a registered golden member on Alibaba site for more than. Feel free to contact us for more cases and solution

Q5: what's the shipment terms and delivery time of your company?

It depends on order quantity, shipping address and shipping methods.

Q6: Do you give any discount ?

Yes, we are looking for long term business cooperation. We will always offer customers the reasonable price based on the right solution.

Q7: I would like to ask you if it's possible to have my logo on the product.

Logo printing service is available for mass order based on our M.O.Q

Q8: What kind of certification do you get?

We have ISO9001 Quality Control certification. Also CE/ROHS/FCC/ etc for different countries’ market.
