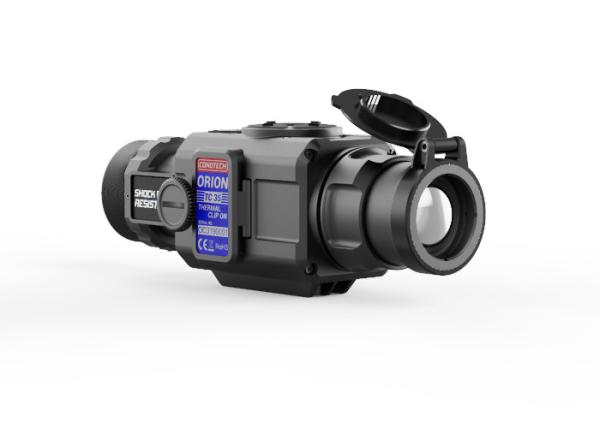

Professional ULIS Core Effectively Thermal Front Attachment 384×288 Resolution
Professional ULIS Core Effectively Thermal Front Attachment 384×288 Resolution
Specifications
Brand Name :
CONO
Model Number :
Orion335C
Certification :
ISO,CE,ROSH
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 PCS PER YEAR
Delivery Time :
7-30 Days
Packaging Details :
Negotiable
Type :
Uncooled FPGA
Resolution :
384×288
Frame Rate :
50Hz
Pitch :
17μm
Description

Professional ULIS Core Effectively Thermal Front Attachment 384×288 Resolution

The Orion introduces thermal imaging to any standard daytime optic—no re-zeroing needed.

Fastened in front of a magnified sight quick-release mount, it brings state-of-the-art thermal technology to an existing set-up in seconds.

Detect targets in complete darkness or through atmospheric obscurants without the need to remove daytime optics.

Features:

Precise Alignment

Precision optical alignment is essential for any front sight system to work properly. All NightSeers are adjusted on the laboratory test equipment with accuracy from 0.1 mrad to 0.3 mrad. The manufacturing process of the NightSeers ensures the shooting precision tolerance within 3 to 7 cm at 100 m.

Compatible With Various Day Optics

Attachment allows turning the majority of day sights with lens diameters from 42mm to 65mm into a thermal sight, ensuring the constant position of POI. Quick-release bayonet mount allows remove it from the scope in seconds.

Wide Range of Operating Temperatures

The ability to operate in normal mode at sub-zero temperatures is due to the use of a frost-resistant AMOLED 1024x768 display featuring fast response and provides a crisp image when observing a dynamic object.

Technical Data Sheet of Orion clip on
Orion335C Orion350C
Detector
Type Uncooled
Resolution 384×288
Frame Rate 50Hz
Pitch 17μm
Spectral range 8-14μm
NETD less then 50mk
Optical Characteristics
Objective lens 35mm 50mm
Magnification 1.4x 2.0x
FOV 10.6°×8.0° 7.4°×5.6°
Close-up range 5m
Eye Relief 60mm
Dioptre Adjustment -5D-4D
Functions
Zoom 2x/4x/PIP
Palette 10 optional(can be customized)
Start uptime less than 5 seconds
Startup image Can be customized
Menu and information GUI(Can be customized)
Image Enhancement DDE
Contrast and Brightness AGC
Online update Both code and GUI resources
reticle type 5 optional(Can be customized)
ballistic and zeroing 5 types can be created by user
Range finder Software Approximate ranging
Display
Type OLED
Resolution 1024×768
Power Supply
Battery 2×CR123
External Power Supply 5V micro USB
Operation Time 5h with WIFI OFF
2h with WIFI ON

Professional ULIS Core Effectively Thermal Front Attachment 384×288 Resolution
