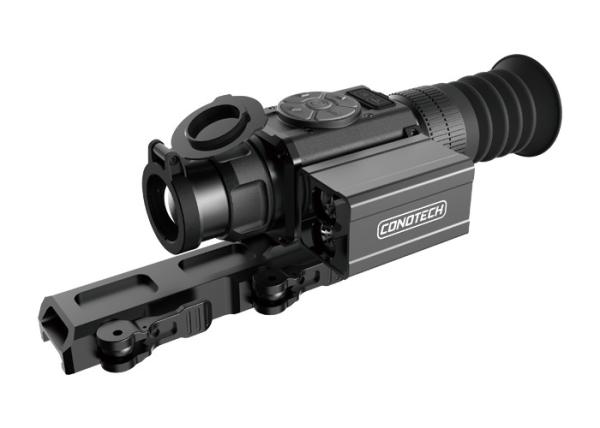

Continuous Measure Laser Rangefinder Mount Scope Orion 335RL Shock Resistant
Continuous Measure Laser Rangefinder Mount Scope Orion 335RL Shock Resistant
Specifications
Brand Name :
CONO
Model Number :
Orion 335RL
Certification :
ISO,CE,ROSH
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 PCS PER YEAR
Delivery Time :
7-30 Days
Packaging Details :
Negotiable
Detector type :
Uncooled
Frame Rate :
50Hz
Objective lens :
35mm
Magnification :
1.4x
FOV :
10.6°×8.0°
Eye Relief :
60mm
Size :
170×100×67mm
name :
Laser Rangefinder Mount Scope
Description

Continuous Measure Laser Rangefinder Mount Scope Orion 335RL Shock Resistant

Description

The Riflescope is designated for hunting, terrain surveillance and aimed shooting under any illumination (day, night, dusk and complete darkness) and any weather conditions (rain, fog, snowfall, etc.).
The operational principle of the Riflescope is based on the transformation of the infrared emission from subjects and objects into a visible image that is easy for perception.

Key Features

  • Zeroing profiles memorization
  • Built-in Wi-Fi module
  • Long detection distance
  • Frost resistant AMOLED screen
  • Built-in precise laser rangefinder
  • Smooth and incremental digital zoom
  • High refresh rate 50 Hz
  • Built-in video recorder
  • Quick-change long-life rechargeable battery packs
  • High-resolution thermal imaging sensor
  • “Picture-in-Picture” mode
  • Various observation modes
  • Variable electronic reticles
  • Manual contrast and brightness adjustment
Technical Data Sheet of Orion rifle+L series
　 Orion335L
Detector 　
Type Uncooled
Resolution 384×288
Frame Rate 50Hz
Pitch 17μm
Spectral range 8-14μm
NETD less then 50mk
Optical Characteristics 　
Objective lens 35mm
Magnification 1.4x
FOV 10.6°×8.0°
Close-up range 5m
Eye Relief 60mm
Dioptre Adjustment -5D-4D
Functions 　
Zoom 2x/4x/PIP
Palette 10 optional(can be customized)
Start uptime less than 5 seconds
Startup image Can be customized
Menu and information GUI(Can be customized)
Image Enhancement DDE
Contrast and Brightness AGC
Online update Both code and GUI resources
reticle type 5 optional(Can be customized)
ballistic and zeroing 5 types can be created by user
Range finder Software Approximate ranging
Display 　
Type OLED
Resolution 1024×768
Power Supply 　
Battery 2×CR123
External Power Supply 5V micro USB
Battery life 5h
Physical Characteristics 　
weight without battery 550g
size,(mm) 170×100×67
Environmental Compatibility 　
Waterproof IP67
Operating Temperature -25℃-50℃
Storage Temperature -40℃-70℃
shock tolerance 1200g/ms
Operating Temperature -25℃-50℃
Storage Temperature -40℃-70℃
shock tolerance 1200g/ms
Wi-fi 　
Frequency 2.4GHz
Standard 802,11 b/g/n
Line-of-sight reception range, m 15
Laser Rangefinder 　
Safety class for laser equipment 1
according to IEC 60825-1:2014
measuring range, m 5-600
Measurement accuracy, m ± 1


Continuous Measure Laser Rangefinder Mount Scope Orion 335RL Shock Resistant
We understand that lives may depend on the performance of our products, that is why every unit that leaves our facility must pass tough quality control standards testing.

It is our mission to continue to design, build, test and ship the very best optoelectronics devices on the market.
