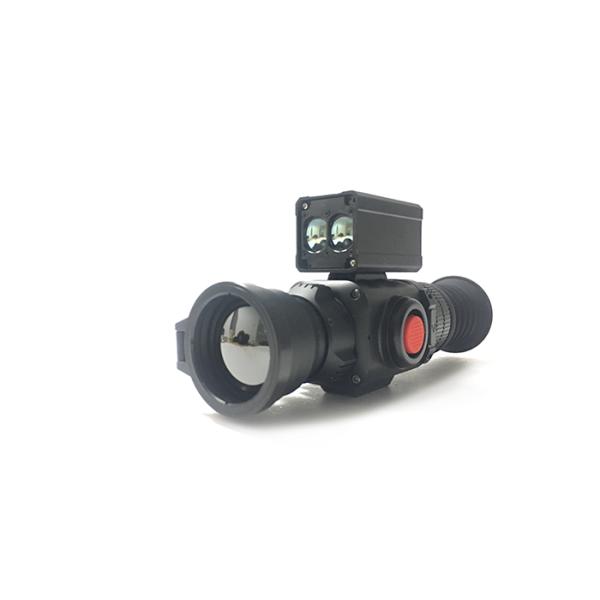

384x288 Compact Infrared Thermal Imaging Sight With Long Range Laser Finder
384x288 Compact Infrared Thermal Imaging Sight With Long Range Laser Finder
Specifications
Brand Name :
CONO
Model Number :
NS350RL
Certification :
ISO,CE,ROSH
Place of Origin :
China
MOQ :
1 Pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 PCS PER YEAR
Delivery Time :
7-30 Days
Packaging Details :
Negotiable
Zoom :
2x/4x/PIP
Palette :
10 optional(can be customized)
Startup time :
less than 5 seconds
Startup image :
Can be customized
Description

384x288 Compact Infrared Thermal Imaging Sight With Long Range Laser Finder

TRSL 3 series can be ordered with a state of the art 17µ pixel pitch 384 x 288 thermal sensor with an optional lens of 35mm and 50mm. A 1024*768 resolution display screen provides high contrast and sharp images.

Features :

◆A built-in laser rangefinder automatically captures and displays target distances up to 600 meters.

◆ Based on the proven 17Um microbolometer core, the NightSeer thermal hunting sight is an ideal product for force protection, border patrol officers, police SWAT officers, and special operations forces

◆ Offers superiors clarity, versatility, reliability, functionality and value

◆ Intelligent Coloration, The NIGHTSEER has Intelligent coloration technology. Intelligent coloration allows the user to better bring out the target or the background depending on conditions.

◆ Limited 2-year warranty

Item NS350RL
Detector
Resolution 384×288
Frame Rate 50Hz
Pitch 17μm
Spectral range 8-14μm
NETD less then 50mk
Optical Characteristics
Objective lens 50mm
Magnification 2.7X
FOV 7.4°×5.6°
Close-up range 5m
Eye Relief 60mm
Dioptre Adjustment -5D-4D
Functions
Zoom 2x/4x/PIP
Palette 10 optional(can be customized)
Startup time less than 5 seconds
Startup image Can be customized
Menu and information GUI(Can be customized)
Image Enhancement DDE
Contrast and Brightness AGC
Online update Both code and GUI resources
reticle type 5 optional(Can be customized)
ballistic and zeroing 5 types can be created by user
Range finder YES
Display
Type OLED
Resolution 1024×768
Power Supply
Battery 2×CR123
External Power Supply 5V micro USB
Battery life 5h
Physical Characteristics
weight without battery 515
size,(mm) 193*100*67
Environmental Compatibility
Waterproof IP66
Operating Temperature -25℃-50℃
Storage Temperature -40℃-70℃
shock tolerance 1200g/ms

SALES & SERVICE

We understand that as a manufacturer it is important to work tightly with our distributors to support customers from different regions. We try our best to make sure all customers can get proper training of our device and good after-sell service when any kind of failure occurs.
