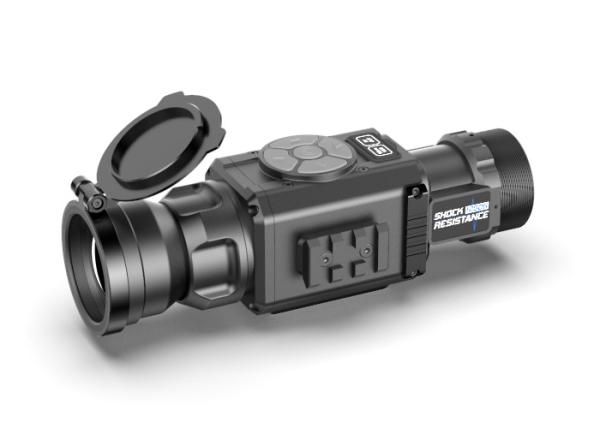

Sniper Scope Thermal Clip On With Brilliant Imagery And Accuracy
Sniper Scope Thermal Clip On With Brilliant Imagery And Accuracy
Specifications
Brand Name :
CONO
Model Number :
Orion35C
Certification :
ISO,CE,ROSH
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 PCS PER YEAR
Delivery Time :
7-30 Days
Packaging Details :
Negotiable
Detection range :
1800m
Close-up range :
5m
Eye Relief :
60mm
Dioptre Adjustment :
-5D-4D
Description

Sniper Scope Thermal Imaging Clip On With Brilliant Imagery and Accuracy <1 MOA

Converting any standard day scope into a thermal imager, the Orion detects and engages targets day or night. The Orion packs state-of-the-art technology into a rugged housing, providing sharp thermal imaging in the toughest conditions. Quick-release mounting makes installation possible in seconds and using an existing day scope reticle allows immediate shot precision—no re-zeroing required.

Features:

- Rugged with the best precision

- 1200g test on each unit before leaving the factory

- Full condition operation

- The military standard can work even at -40 degree

- Detection range 1800m for human size target

- High image frequency of 50Hz

- Compatible With Various Day Optics, no re-zeroing required

- Weather-dependent image optimization

- Fully Waterproof

Technical Data Sheet of Orion clipon
Orion350C
Detector
Type Uncooled
Resolution 384×288
Frame Rate 50Hz
Pitch 17μm
Spectral range 8-14μm
NETD less then 50mk
Optical Characteristics
Objective lens 50mm
Magnification 2.0x
FOV 7.4°×5.6°
Close-up range 5m
Eye Relief 60mm
Dioptre Adjustment -5D-4D
Functions
Zoom 2x/4x/PIP
Palette 10 optional(can be customized)
Startup time less than 5 seconds
Startup image Can be customized
Menu and information GUI(Can be customized)
Image Enhancement DDE
Contrast and Brightness AGC
Online update Both code and GUI resources
reticle type 5 optional(Can be customized)
ballistic and zeroing 5 types can be created by user
Range finder Software Approximate ranging
Display
Type OLED
Resolution 1024×768
Power Supply
Battery 2×CR123
External Power Supply 5V micro USB
Operation Time 5h with WIFI OFF
2h with WIFI ON
Physical Characteristics
weight without battery 500g
size,(mm) 180×61×65
Environmental Compatibility
Waterproof IP67
Operating Temperature -25℃-50℃
Storage Temperature -40℃-70℃
shock tolerance 1200g/ms
Operating Temperature -25℃-50℃
Storage Temperature -40℃-70℃
shock tolerance 1200g/ms
Wi-fi
Frequency 2.4GHz
Standard 802,11 b/g/n
Line-of-sight reception range, m 15
On-Board Recording
Capacity 32G

Sniper Scope Thermal Clip On With Brilliant Imagery And Accuracy <1 MOA
