Glass Fiber Reinforced PA Granules Polyamide Nylon66 High Impact Strength
Glass Fiber Reinforced PA Granules Polyamide Nylon66 High Impact Strength
Glass Fiber Reinforced PA Granules Polyamide Nylon66 High Impact Strength
Glass Fiber Reinforced PA Granules Polyamide Nylon66 High Impact Strength
Glass Fiber Reinforced PA Granules Polyamide Nylon66 High Impact Strength
Glass Fiber Reinforced PA Granules Polyamide Nylon66 High Impact Strength
Specifications
Brand Name :
Polywell
Model Number :
PA66GF25
Place of Origin :
China
Certification :
SGS
MOQ :
500 KGS
Price :
Negotiation
Packaging Details :
Nylon Bag
Delivery Time :
15 working days
Payment Terms :
50% T/T before production, 50% T/T before delivery
Supply Ability :
20 tons per month
Chemical Resistance :
Excellent
Elasticity modulus :
≥4500 MPa
Melting Point :
230-240°C
Color :
Black
Tensile Strength :
≥80 MPa
Density :
1.25-1.35 G/cm3
Impact Strength :
≥35 KJ/m2
Shore hardness :
80±5
Description

Product Description:

Polyamide Nylon 66, also known as PA66 or Nylon 66, is a semi-crystalline engineering thermoplastic that offers superior chemical, abrasion, and wear resistance. PA66GF25 pellets are a type of glass fiber reinforced plastic granules that are commonly used in the production of connectors, automotive components, and other industrial parts. The pellets have a Shore hardness of 80 ± 5, and a tensile strength of ≥ 80 MPa, making them highly resistant to abrasion and wear. With an impressive strength-to-weight ratio, PA66GF25 pellets are a cost-effective and reliable material for a variety of applications. These pellets are available in 25 Kg/bag packages.

Glass Fiber Reinforced PA Granules Polyamide Nylon66 High Impact StrengthGlass Fiber Reinforced PA Granules Polyamide Nylon66 High Impact Strength

Features:

  • Product Name: Polyamide Nylon 66
  • Type: Glass Fiber Reinforced Plastic Granules
  • Grade: Extrusion
  • Shore hardness: 80±5
  • Name: Polyamide Nylon 66
  • Elasticity modulus: ≥4500 MPa
Glass Fiber Reinforced PA Granules Polyamide Nylon66 High Impact StrengthGlass Fiber Reinforced PA Granules Polyamide Nylon66 High Impact Strength

Technical Parameters:

Polywell PA66 Granules Performance Table

NO. Item Unit GB/T 23615.1-2009 PW-Technical specification
  Material Properties
1 Density g/cm3 1.3±0.05 1.28-1.35
2 Linear expansion coefficient K-1 (2.3-3.5)*10-5 (2.3-3.5)*10-5
3 Vicat softening temperature ºC ≥230ºC ≥233ºC
4 Melting point ºC ≥240 ≥240
5 Testing for tensile cracks - No cracks No cracks
6 Shore hardness - 80±5 80-85
7 Impact strength(Unnotched) KJ/m2 ≥35 ≥38
8 Tensile strength(longitudinal) MPa ≥80a ≥82a
9 Elasticity modulus MPa ≥4500 ≥4550
10 Elongation at break % ≥2.5 ≥2.6
11 Tensile strength(transverse) MPa ≥70a ≥70a
12 High temperature tensile strength(transverse) MPa ≥45a ≥47a
13 Low temperature tensile strength(transverse) MPa ≥80a ≥81a
14 Water resistance tensile strength(transverse) MPa ≥35a ≥35a
15 Aging resistance tensile strength(transverse) MPa ≥50a ≥50a

1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

Applications:

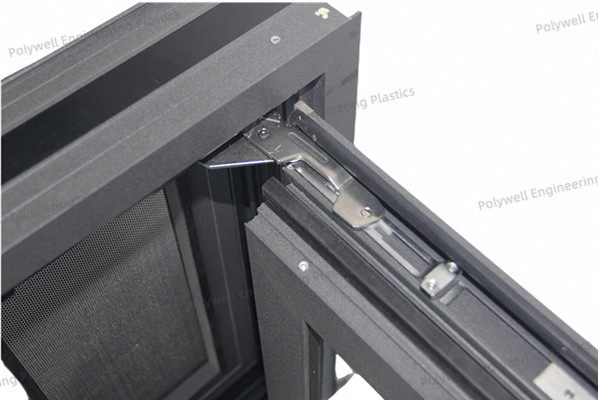

Specially used in thermal break strips, thermal bridge, heat insulation bar, etc.

Glass Fiber Reinforced PA Granules Polyamide Nylon66 High Impact StrengthGlass Fiber Reinforced PA Granules Polyamide Nylon66 High Impact Strength

FAQ:

Q: About Sample

A: Sample is Free, but the express fee is collect or you pay us the cost in advance.

Q: About MOQ

A: For the polyamide granules, MOQ is 1 ton. For the thermal break strips, MOQ is 5,000 meters.

Q: About Customizing Special shape of polyamide Profiles and its period

A: You can customize the special shape of polyamide strips. If we didn't meet this shape before, we will make new mold for you, and you should pay for the mold.

Q: About Customizing Package Style and Marks

A: You can customize the package style and marks.

Q: Why your price is higher/lower than others?

A: For years specializing in polyamide granules and thermal break strips has bestowed us experienced and skilled technical workers and production workers. We promise the stability of products and the high-quality of raw material. Furthermore, we can provide technical support from raw material to the final appliance. Believe in that you can get better products and service with lower price.

Q: About warranty

A: We are confident in our products, and pack them well before delivery, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately.

Q: About Payment or other question

A: 50% T/T deposit before production, 50% T/T balance before loading.

Packing and Shipping:

Packaging & Delivery:
Packaging details:25kg/bag
Delivery details: shipped in 5-10 working days after receiving the payment

Glass Fiber Reinforced PA Granules Polyamide Nylon66 High Impact Strength

Our Company:

Suzhou Polywell Engineering Plastics Company is located in the city of Zhangjiagang, Jiangsu Province, China. Our company has devoted more than ten years to the research and development and production of nylon extruding profiles. According to customer reaction, using our PA66 granules for production can get high yiedl, easy start-up, and get less scrap in the early start-up stage. There will be no lack or incomplete of profiles in the production process, thus avoiding material waste.

Glass Fiber Reinforced PA Granules Polyamide Nylon66 High Impact Strength

Contact us:

Pleass feel free to contact us if you have any questions.
Name: July

E-mail: july@szpolywell.cn

Tel: +86-15651895387 (WeChat)
WhatsApp: +86-15651895387

Address:Yangshe Town, Zhangjiagang City, Jiangsu Province, China
