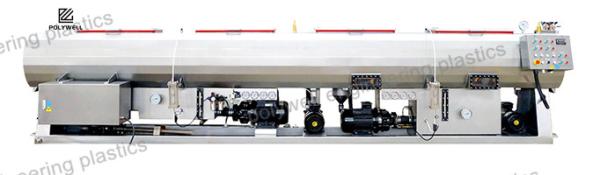

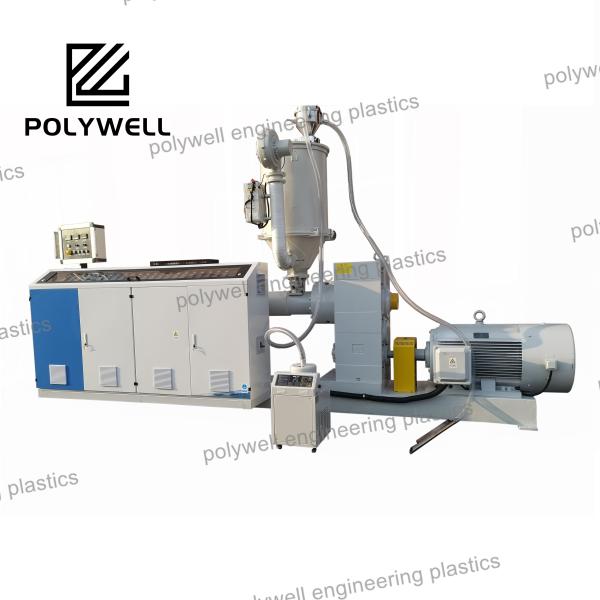

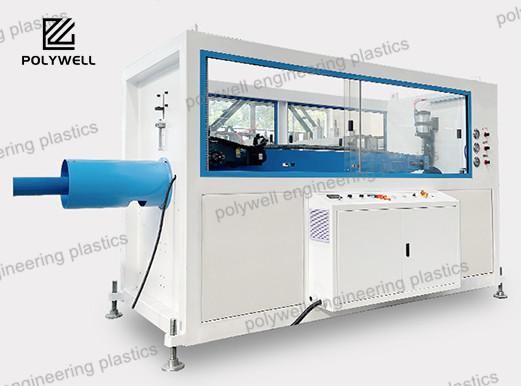

PE PPR Water Pipe Making Machine Production Line Pipe Plastic Extrusion Extruder
PE PPR Water Pipe Making Machine Production Line Pipe Plastic Extrusion Extruder
PE PPR Water Pipe Making Machine Production Line Pipe Plastic Extrusion Extruder
PE PPR Water Pipe Making Machine Production Line Pipe Plastic Extrusion Extruder
PE PPR Water Pipe Making Machine Production Line Pipe Plastic Extrusion Extruder
PE PPR Water Pipe Making Machine Production Line Pipe Plastic Extrusion Extruder
Specifications
Brand Name :
Polywell
Model Number :
PW-S65
Certification :
SGS、CE
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
USD 36,000- 51,000 / Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
28-35 Working Days
Packaging Details :
Plywood case or wrap film in container
Condition :
New
Plastic Processed :
PE, HDPE, LDPE
Application :
PIPE
Screw Design :
Single-screw
Screw Material :
38CrMoALA
Screw diameter (mm) :
65
Screw L/D Ratio :
33:1
Screw Speed (rpm) :
65 rpm
Voltage :
3~380V~50/60HZ
Dimension(L*W*H) :
20000*1400*2100 mm
Power (Kw) :
55
Weight :
6T
Warranty :
1 Year
Description

Company Introduction

Our company has always adhered to the business philosophy of "honest management and high-quality service", wholeheartedly providing customers with the highest quality service and the most reassuring products. We mainly operate plastic machinery such as PE pipe production lines, PVC pipe production lines, MPP power pipe production lines, PE hollow wall winding pipe production lines, PE/PVC double wall corrugated pipe production lines etc. We are a technology-based enterprise that integrates scientific research, production, sales, and service. Our company is located in Zhangjiagang, a national sanitary and civilized city.

PE PPR Water Pipe Making Machine Production Line Pipe Plastic Extrusion Extruder

PE pipe extrusion line for Application Description

This Extrusion Line can be used for different diameter PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred for ductwork system of gas, water pipe and agricultural irrigation pipe between city and village.

PE PPR Water Pipe Making Machine Production Line Pipe Plastic Extrusion Extruder

Technical Parameter for PE pipe extrusion line

Pipe range

(mm)

 16-63 20-110 75-160 90-250 110-315 160-450 315-630

Extruder

 65/30 65/33 75/30 75/33 90/33 90/33 120/33

Motor power

(kw)

 30/37 55/75 75/90 90/110 132 160 280

Capacity

(kg/h)

 100-150 200-300 220-350 300-400 350-450 500-600 700-900

Max.speed

 15m/min 10m/min 8m/min 6m/min 3m/min 1.2m/min 1.0m/min

PE PPR Water Pipe Making Machine Production Line Pipe Plastic Extrusion Extruder

Equipment characteristics

PE pipe production equipment is a type of equipment that adopts a basket type head or spiral split extrusion composite head design, which is convenient for adjustment, uniform material extrusion, and the sizing sleeve adopts a unique slotting process and water ring cooling to ensure the accuracy of pipe forming.

The PE pipe production line produced by our company has a unique structure, high degree of automation, convenient operation, and stable and reliable continuous production. The pipes produced by this plastic pipe production line have moderate rigidity, strength, good flexibility, creep resistance, environmental stress cracking resistance, and good hot melt performance, and have become a good choice for urban gas transmission pipelines and outdoor water supply pipes.

PE PPR Water Pipe Making Machine Production Line Pipe Plastic Extrusion Extruder

Packaging & delivery

Packaging: Packaging that meets transportation standards.

Delivery: 28-35 Working days

PE PPR Water Pipe Making Machine Production Line Pipe Plastic Extrusion Extruder

Company Introduction

Our company has always adhered to the business philosophy of "honest management and high-quality service", wholeheartedly providing customers with the highest quality service and the most reassuring products. We mainly operate plastic machinery such as PE pipe production lines, PVC pipe production lines, MPP power pipe production lines, PE hollow wall winding pipe production lines, PE/PVC double wall corrugated pipe production lines etc. We are a technology-based enterprise that integrates scientific research, production, sales, and service. Our company is located in Zhangjiagang, a national sanitary and civilized city.

If you have any questions, please feel free to contact me.

Lydia

Tel: 0086-15601568506 (WhatsApp)

E-mail: lydia@szpolywell.cn
