Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced
Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced
Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced
Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced
Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced
Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced
Specifications
Brand Name :
Polywell
Model Number :
PA66GF25
Place of Origin :
China
MOQ :
1 Ton
Price :
USD 1,500-1,900/T
Payment Terms :
T/T
Supply Ability :
20 Tons per Day
Delivery Time :
10-15 Working Days
Packaging Details :
25 kg per bag
Certification :
SGS
Color :
Black or Customized
Characteristics :
High strengh and abrasion resistant
Application :
Thermal Break Strips
Product Name :
reinforced flame retardant PA plastic raw material
Port :
Shanghai
Material :
GFRP, Polyamide
Density :
1.25-1.35 g/cm3
Glass filled :
25%-30%
Filler :
Glass Fiber Reinforced
Description

Heat Insulation Raw Material Glass Fiber Reinforced Polyamide66 Nyon Granules

Product Description

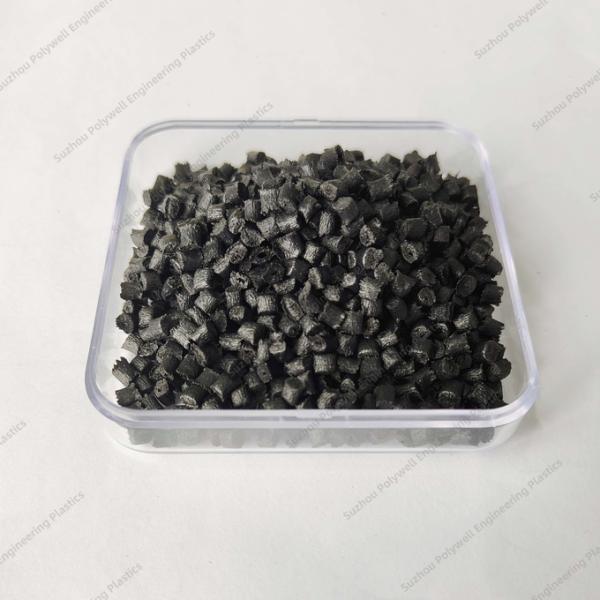

Glass fiber reinforced PA 6.6 granules with heat aging resistance extrusion moulding grade. It's good raw material for thermal break profiles of high stiffness and dimensional stability.

Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced

Application

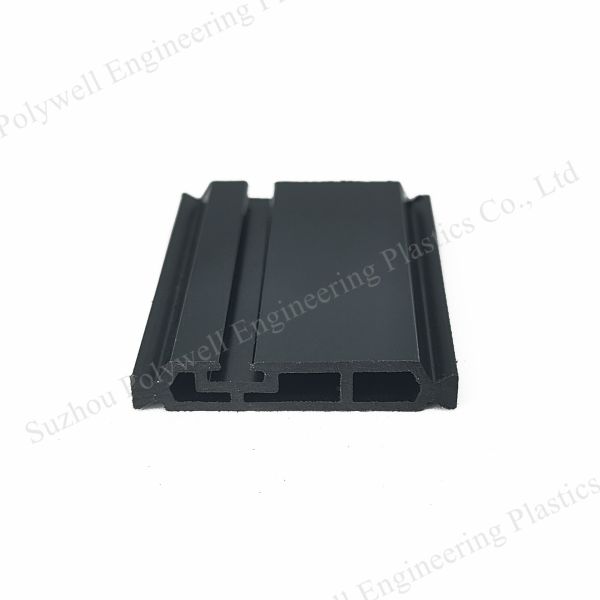

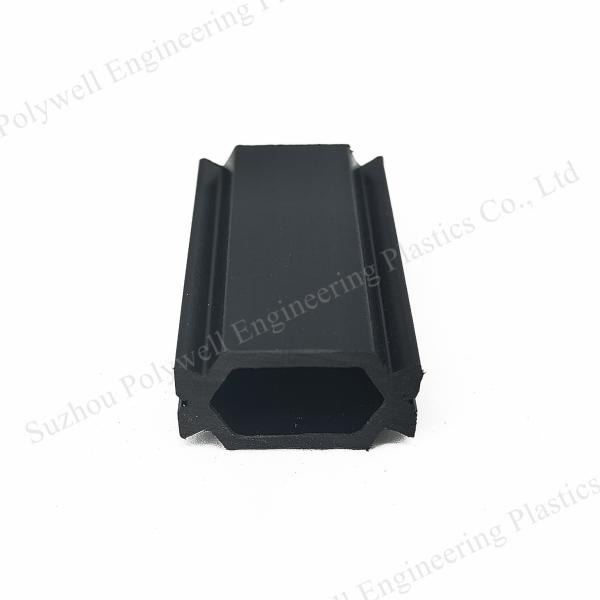

The PA66 granules with fiber glass are mainly used in thermal break strips, which are used in aluminum windows and doors. Our granules have good fluidity thus guaranteeing your smooth production. The good raw material can reduce the rate of rejects, and can produce high quality stips.

Polyamide66 Nyon Granules Heat Insulation Glass Fiber ReinforcedPolyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced

Detailed Infomation

Free sample support and short lead time

High mechanical strength

High toughness

High softening point

Good wear resistance

Self-lubrication

Long-term work at higher temperatures

High CTI value

Excellent electrical insulation

Low smoke and toxicity characteristics

Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced

Product Parameters
Item
 Unit GB/T 23615.1-2009 PW-Technical specification
Density
 g/cm3 1.3±0.05 1.28-1.35
Linear expansion coefficient
 K-1 (2.3-3.5)×10-5 (2.3-3.5)×10-5
Vicat softening temperature
 ºC ≥230ºC ≥233ºC
Melting point
 ºC ≥240 ≥240
Testing for tensile cracks
 - No cracks No cracks
Shore hardness
 - 80±5 80-85
Impact strength(Unnotched)
 KJ/m2 ≥35 ≥38
Tensile strength(longitudinal)
 MPa ≥80a ≥82a
Elasticity modulus
 MPa ≥4500 ≥4550
Elongation at break
 % ≥2.5 ≥2.6
Tensile strength(transverse)
 MPa ≥70a ≥70a
High temperature tensile strength(transverse)
 MPa ≥45a ≥47a
Low temperature tensile strength(transverse)
 MPa ≥80a ≥81a
Water resistance tensile strength(transverse)
 MPa
≥35a		 ≥35a
Aging resistance tensile strength(transverse)
 MPa ≥50a ≥50a

1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

Our Service&Company

Before sales

1. Introduce products in detail
2. Recommend suitable solutions
3. Provide with reference information

During manufacturing

1. Provide with layout and engineering conditions
2. Inform the processing status
3. Offer related documents

After Sales

1. Provide installation, commissioning and training
2. Offer spare parts
3. Provide with necessary technical support

Polyamide66 Nyon Granules Heat Insulation Glass Fiber Reinforced

Welcome to visit our company!

Please feel free to contact us if you have any questions.

Camille
E-mail:camille@szpolywell.cn
Phone:86+13584481777
Address:Jinfeng Town, Zhangjiagang City, Jiangsu Province, China
