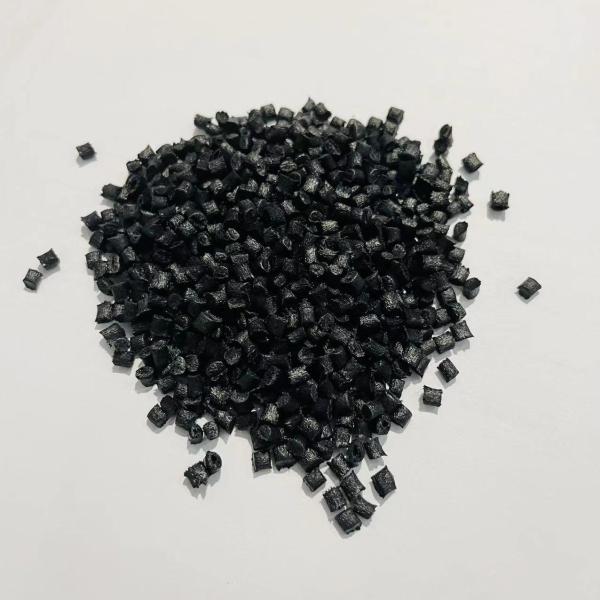

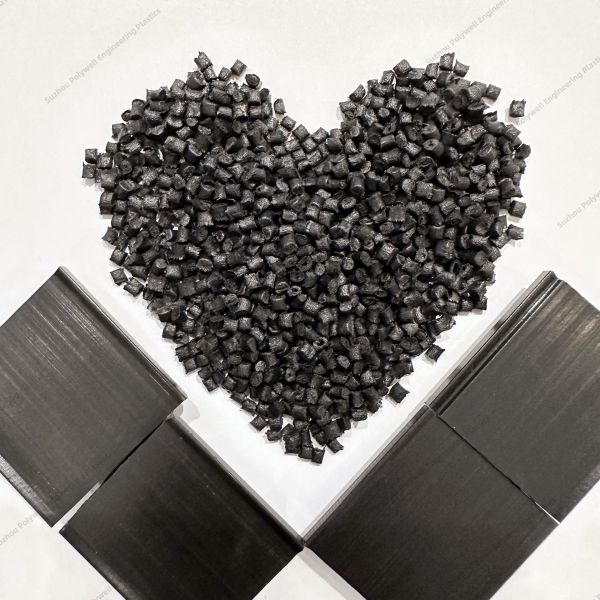

Customized Polyamide Nylon Granules PA6 PA66 Pellets Reinforced 25% Firberglass
Customized Polyamide Nylon Granules PA6 PA66 Pellets Reinforced 25% Firberglass
Customized Polyamide Nylon Granules PA6 PA66 Pellets Reinforced 25% Firberglass
Customized Polyamide Nylon Granules PA6 PA66 Pellets Reinforced 25% Firberglass
Specifications
Brand Name :
Polywell
Model Number :
PA66GF25
Place of Origin :
China
MOQ :
1 ton
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
20 tons per day
Delivery Time :
10-15 working days
Packaging Details :
25 kg per bag
Certification :
SGS
Application :
Thermal break strips
Type :
Glass Fiber Reinforced Plastic Granules
Shape :
Granules
Material :
Polyamide, Glass fiber
Fiber Content :
25%
Moulding Method :
Extrusion
Port :
Shanghai
Color :
Black
Description

Customized Polyamide Nylon Granules PA6 PA66 Pellets Reinforced 25% Firberglass

Introduction

  • Our granules have good fluidity thus guaranteeing your smooth production. The good raw material can reduce the rate of rejects, and can produce high quality strips.
  • Our PA66GF25 granules is special material for heat insulation profiles. It's extrusion grade modified plastics. It is different from PA66 resin.
  • Our PA66GF25 granules is reinforced by 25% glass fiber.

Customized Polyamide Nylon Granules PA6 PA66 Pellets Reinforced 25% Firberglass Customized Polyamide Nylon Granules PA6 PA66 Pellets Reinforced 25% Firberglass

Advantages

1. It has excellent mechanical properties, high strength, high toughness.

2. The material has excellent coloring ability, can achieve various requirements of color matching

3. The shrinkage rate of PA66 is between 1% and 2%. The addition of glass fiber additives can reduce the shrinkage rate to 0.2%~1%. The shrinkage ratio is large in the flow direction and in the direction perpendicular to the flow direction.

4. PA66 is resistant to many solvents, but is less resistant to acids and other chlorinating agents.

5. PA66 excellent flame retardant performance, by adding different flame retardants can achieve different levels of flame retardant effect.

Customized Polyamide Nylon Granules PA6 PA66 Pellets Reinforced 25% Firberglass

Application

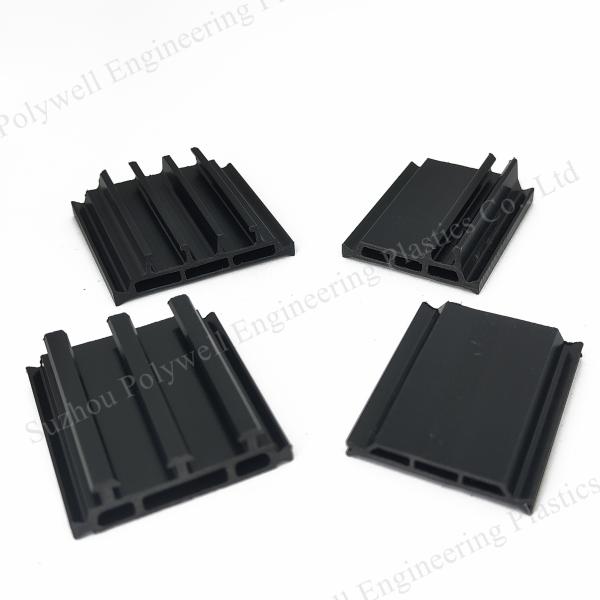

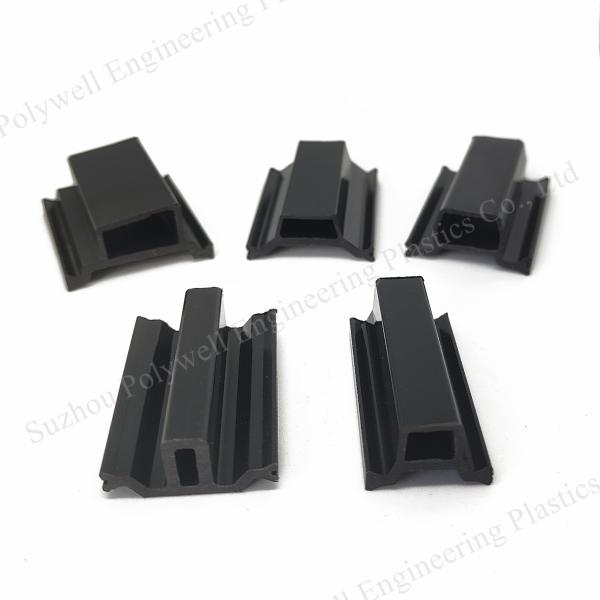

The PA66 granules with fiber glass are mainly used in thermal break strips, which are used in aluminum windows and doors.

Customized Polyamide Nylon Granules PA6 PA66 Pellets Reinforced 25% FirberglassCustomized Polyamide Nylon Granules PA6 PA66 Pellets Reinforced 25% Firberglass

Customized Polyamide Nylon Granules PA6 PA66 Pellets Reinforced 25% Firberglass

Product Parameters

Item

Unit

GB/T 23615.1-2009

PW-Technical specification

Density

g/cm3

1.3±0.05

1.28-1.35

Linear expansion coefficient

K-1

(2.3-3.5)×10-5

(2.3-3.5)×10-5

Vicat softening temperature

ºC

≥230ºC

≥233ºC

Melting point

ºC

≥240

≥240

Testing for tensile cracks

-

No cracks

No cracks

Shore hardness

-

80±5

80-85

Impact strength(Unnotched)

KJ/m2

≥35

≥38

Tensile strength(longitudinal)

MPa

≥80a

≥82a

Elasticity modulus

MPa

≥4500

≥4550

Elongation at break

%

≥2.5

≥2.6

Tensile strength(transverse)

MPa

≥70a

≥70a

High temperature tensile strength(transverse)

MPa

≥45a

≥47a

Low temperature tensile strength(transverse)

MPa

≥80a

≥81a

Water resistance tensile strength(transverse)

MPa


≥35a

≥35a

Aging resistance tensile strength(transverse)

MPa

≥50a

≥50a

1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

Customized Polyamide Nylon Granules PA6 PA66 Pellets Reinforced 25% Firberglass

Packing & Delivery

Packaging details: 25kg/bag
Delivery details: shipped in 10-15 working days after receiving the payment
