I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
Specifications
Place of Origin :
China
Brand Name :
Polywell
Model Number :
PW-I148
Supply Ability :
100000 meters per day
MOQ :
5000 meters
Price :
$0.20 - $1.00 / Meter
Packaging Details :
Linear or roll
Delivery Time :
10-15 working days
Payment Terms :
T/T
Certification :
SGS
Material :
Polyamide66 Reinforced by 25%Glass Fiber
Color :
black
Application :
For Thermal Break Aluminum Profile
Port :
Shanghai
Refractoriness :
200-450°C
Apparent Density :
1.25-1.35 g/cm3
Production Capacity :
100000 M/Day
Technical Performance :
GB/T 23615.1-2009
Life :
More Than 40 Years
Transport Package :
Roll or Linear
Description
Product Description

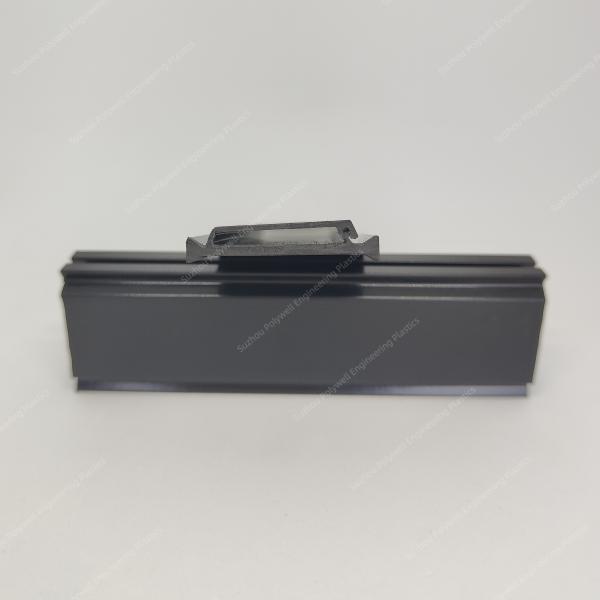

Over the years, polyamide heat-insulation strip has been widely used in glass curtain walls due to its good properties and low cost. Especially Polyamide 66 reinforced by 25% glass fiber thermal break strips, they are inserted into aluminum window, door and facade profile for thermal insulation.

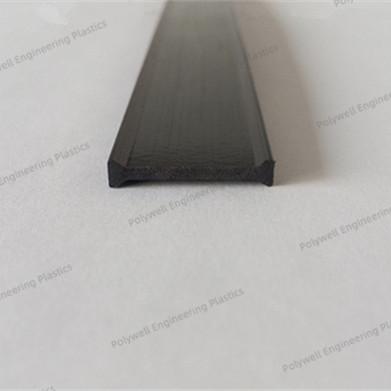

The shape I thermal barrier polyamide strip can prevent the window frame from dust and water, has a better mechanical performance, is the first generation and easiest shape of insulating strips.
For the shape I, we can provide the above size or customize according to customers' requirements.
I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
Advantages

1.Effectively increased thermal in the system property insulation.
2.Reduces condensation on the window.
3.Sound insulated.
4.Improve comfort and living condition.
5.Possible double color coatings provide better aesthetic effect.
6.Various shapes will be designed for the customer's requirements.
7.The working temperature of the thermal insulation strip is 220°C, Melting Point reaches to 246°C. This enables coating process after assembly of composite profiles.
8.High corrosion-resistance, weather-resistance, heat-resistance, alkali-resistance and long life of usage.
9.linear thermal dilation coefficient almost identical to that of aluminium profiles.

I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
Product Parameters
Name
Specification
Brand
Material
Polyamide Granules
PA66 GF25
Polywell
PA66, Fiberglass
Item
Unit
GB/T 23615.1-2009
PW-Technical specification
Density
g/cm3
1.3±0.05
1.25-1.35
Linear expansion coefficient
K-1
(2.3-3.5)×10-5
(2.3-3.5)×10-5
Vicat softening temperature
ºC
≥230ºC
≥230ºC
Melting point
ºC
≥240
≥240
Testing for tensile cracks
-
No cracks
No cracks
Shore hardness
-
80±5
76-85
Impact strength(Unnotched)
KJ/m2
≥35
≥35
Tensile strength(longitudinal)
MPa
≥80a
≥80a
Elasticity modulus
MPa
≥4500
≥4500
Elongation at break
%
≥2.5
≥2.5
Tensile strength(transverse)
MPa
≥70a
≥70a
High temperature tensile strength(transverse)
MPa
≥45a
≥45a
Low temperature tensile strength(transverse)
MPa
≥80a
≥80a
Water resistance tensile strength(transverse)
MPa
≥35a
≥35a
Aging resistance tensile strength(transverse)
MPa
≥50a
≥50a

1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.

3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

Packing & Delivery
I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows

Packaging details:For all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.For the Shape "I", "C", and some simple shapes, they can be packed in rolls. 400-600 meters/roll.
Delivery details: shipped in 10-20 working days after receiving the deposit

Our Service&Company
I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows
I Shape 18.6mm Extruded Polyamide Thermal Insulating Profile Heat Break Strips for Broken Bridge Aluminum Windows

Welcome to visit our company!

Please feel free to contact us if you have any questions.
Phone: +86-13812855067

Before sales

1. introduce products in detail
2. recommend suitable solutions
3. provide with reference information

During manufacturing

1. provide with layout and engineering conditions
2. inform the processing status
3. offer related documents

After Sales

1. provide installation, commissioning and training
2. offer spare parts
3. Provide with necessary technical support
