High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape
High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape
High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape
High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape
High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape
High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape
High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape
High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape
High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape
High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape
Specifications
Brand Name :
Polywell
Model Number :
PA66GF25
Place of Origin :
China
MOQ :
1 ton
Price :
$1500-2200/T
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
20 tons per day
Delivery Time :
10-15 working days
Packaging Details :
Nylon Bag or Paper Bag, 25kg/bag
Certification :
SGS
Raw Material :
glass fiber+PA66 resin
Glass Fiber Content :
25%
Plastic Properties After Heated :
Thermoplastic plastics
Density :
1.25-1.35 g/cm3
Usage :
To Produce Thermal break profiles
HS code :
390810
Color :
Black
Flame Retardant :
According to customer's requirements
Description

High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape

PA66 Features

1. It has excellent mechanical properties, high strength, high toughness.
2. The material has excellent coloring ability, can achieve various requirements of color matching
3. The shrinkage rate of PA66 is between 1% and 2%. The addition of glass fiber additives can reduce the shrinkage rate to 0.2%~1%. The shrinkage ratio is large in the flow direction and in the direction perpendicular to the flow direction.
4. PA66 is resistant to many solvents, but is less resistant to acids and other chlorinating agents.
5. PA66 excellent flame retardant performance, by adding different flame retardants can achieve different levels of flame retardant effect.

High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape

What is GF in plastic material?

Glass-filled nylon is a synthetic polyamide thermoplastic and it's one of the most important materials used in engineering thanks to its strength and heat resistance. It's made by adding powdered glass to nylon resin or by extruding the plastic with glass fibers.

High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape

PA66GF25 granules Introduction

Our PA66GF25 granules is special material for heat insulation profiles. It's extrusion grade modified plastics. It is different from PA66 resin.

Our PA66GF25 granules is reinforced by 25% glass fiber.

High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape

Application

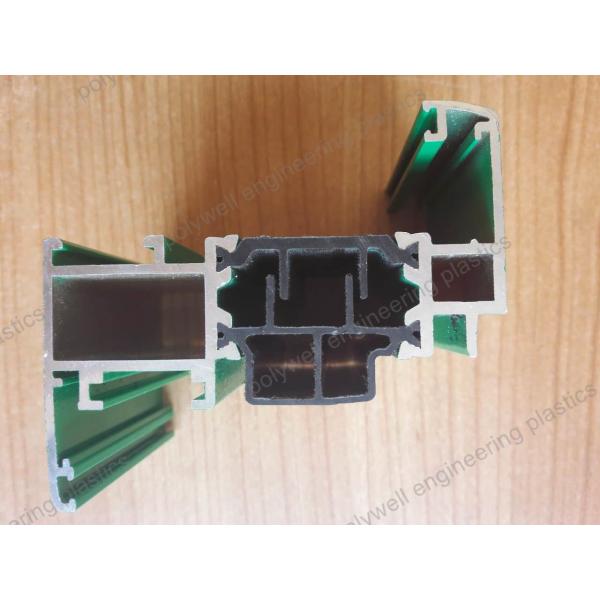

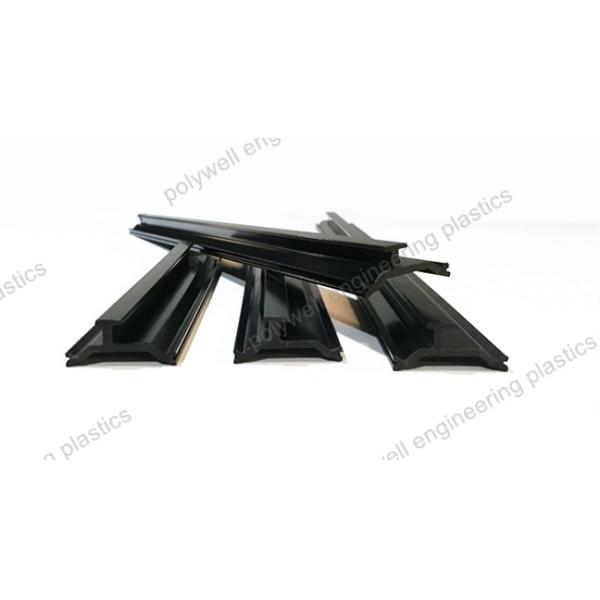

The PA66 granules with fiber glass are mainly used in thermal break strips, which are used in aluminum windows and doors. Our granules have good fluidity thus guaranteeing your smooth production. The good raw material can reduce the rate of rejects, and can produce high quality stips.

High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier TapeHigh Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape

Product Parameters
Item
 Unit GB/T 23615.1-2009 PW-Technical specification
Density
 g/cm3 1.3±0.05 1.28-1.35
Linear expansion coefficient
 K-1 (2.3-3.5)×10-5 (2.3-3.5)×10-5
Vicat softening temperature
 ºC ≥230ºC ≥233ºC
Melting point
 ºC ≥240 ≥240
Testing for tensile cracks
 - No cracks No cracks
Shore hardness
 - 80±5 80-85
Impact strength(Unnotched)
 KJ/m2 ≥35 ≥38
Tensile strength(longitudinal)
 MPa ≥80a ≥82a
Elasticity modulus
 MPa ≥4500 ≥4550
Elongation at break
 % ≥2.5 ≥2.6
Tensile strength(transverse)
 MPa ≥70a ≥70a
High temperature tensile strength(transverse)
 MPa ≥45a ≥47a
Low temperature tensile strength(transverse)
 MPa ≥80a ≥81a
Water resistance tensile strength(transverse)
 MPa
≥35a		 ≥35a
Aging resistance tensile strength(transverse)
 MPa ≥50a ≥50a

1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape

Packing & Delivery

Packaging details:25kg/bag
Delivery details: shipped in 10-15 working days after receiving the payment

High Toughness Glass Fiber Filled Nylon 66 Granules Reinforced Nylon 66 Polymer For Thermal Barrier Tape

Our Service

Before sales

1. introduce products in detail
2. recommend suitable solutions
3. provide with reference information

During manufacturing

1. provide with layout and engineering conditions
2. inform the processing status
3. offer related documents

After Sales

1. provide installation, commissioning and training
2. offer spare parts
3. Provide with necessary technical support

Welcome to visit our company!Please feel free to contact us if you have any questions.
