Specifications
Brand Name :
Polywell
Model Number :
PA66GF25
Place of Origin :
China
MOQ :
1 Ton
Price :
$1,600- $1,800 / Ton
Payment Terms :
T/T
Supply Ability :
20 Tons per Day
Delivery Time :
15-20 Working days
Packaging Details :
Nylon Bag 25kg/bag
Certification :
SGS
Material :
GFRP, Polyamide
Color :
Black or Customized
Grade :
Extrusion
Density :
1.25-1.35 g/cm3
Payment :
TT
HS Code :
390810
Description

Modified PA66 GF25 Plastic Raw Material Reinforced By Glass Fiber

Application

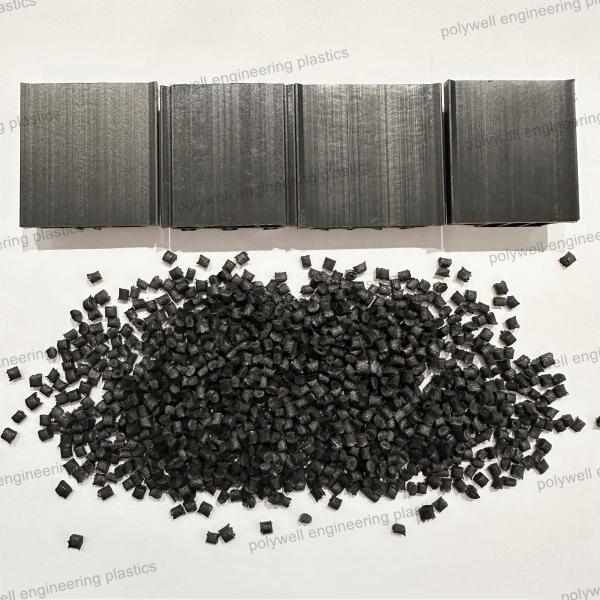

The PA66 granules with fiber glass are mainly used in thermal break strips, which are used in aluminum windows and doors. Our granules have good fluidity thus guaranteeing your smooth production. The good raw material can reduce the rate of rejects, and can produce high quality stips.

Modified PA66 GF25 Plastic Raw Material Reinforced By Glass Fiber Polyamide Granules for Heat Insulation Strip

Product Description

-PA66GF25 granules are reinforced by fiberglass. The final product performance of this raw material can meet the national standard.
-PA66GF25 granules are based on PA66 resin. Then the granules are formed by twin-screw extrusion machine after adding fiberglass, efficient flame retardants and various additives.

Modified PA66 GF25 Plastic Raw Material Reinforced By Glass Fiber Polyamide Granules for Heat Insulation Strip

Detailed Infomation

Free sample support and short lead time

High mechanical strength

High toughness

High softening point

Good wear resistance

Self-lubrication

Long-term work at higher temperatures

High CTI value

Excellent electrical insulation

Low smoke and toxicity characteristics

Product Parameters
Item
 Unit GB/T 23615.1-2009 PW-Technical specification
Density
 g/cm3 1.3±0.05 1.28-1.35
Linear expansion coefficient
 K-1 (2.3-3.5)×10-5 (2.3-3.5)×10-5
Vicat softening temperature
 ºC ≥230ºC ≥233ºC
Melting point
 ºC ≥240 ≥240
Testing for tensile cracks
 - No cracks No cracks
Shore hardness
 - 80±5 80-85
Impact strength(Unnotched)
 KJ/m2 ≥35 ≥38
Tensile strength(longitudinal)
 MPa ≥80a ≥82a
Elasticity modulus
 MPa ≥4500 ≥4550
Elongation at break
 % ≥2.5 ≥2.6
Tensile strength(transverse)
 MPa ≥70a ≥70a
High temperature tensile strength(transverse)
 MPa ≥45a ≥47a
Low temperature tensile strength(transverse)
 MPa ≥80a ≥81a
Water resistance tensile strength(transverse)
 MPa
≥35a		 ≥35a
Aging resistance tensile strength(transverse)
 MPa ≥50a ≥50a

1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

Modified PA66 GF25 Plastic Raw Material Reinforced By Glass Fiber Polyamide Granules for Heat Insulation Strip

Our Service&Company

Before sales

1. Introduce products in detail
2. Recommend suitable solutions
3. Provide with reference information

During manufacturing

1. Provide with layout and engineering conditions
2. Inform the processing status
3. Offer related documents

After Sales

1. Provide installation, commissioning and training
2. Offer spare parts
3. Provide with necessary technical support
