Vox 8 - 14um Thermal Imaging Module Uncooled Thermal Sensor 384 X 288 Resolution
Vox 8 - 14um Thermal Imaging Module Uncooled Thermal Sensor 384 X 288 Resolution
Vox 8 - 14um Thermal Imaging Module Uncooled Thermal Sensor 384 X 288 Resolution
Vox 8 - 14um Thermal Imaging Module Uncooled Thermal Sensor 384 X 288 Resolution
Vox 8 - 14um Thermal Imaging Module Uncooled Thermal Sensor 384 X 288 Resolution
Vox 8 - 14um Thermal Imaging Module Uncooled Thermal Sensor 384 X 288 Resolution
Specifications
Model Number :
A3817S
Place of Origin :
China
MOQ :
1
Payment Terms :
All are acceptable except L/C
Supply Ability :
500/Month
Delivery Time :
3-5days
Price :
Negotiation
Detector :
Uncooled VOx FPA
Wavelength :
8-14μm
NETD :
≤45mK@30°C
Resolution :
384 x 288
Pixel size :
17μm
Description

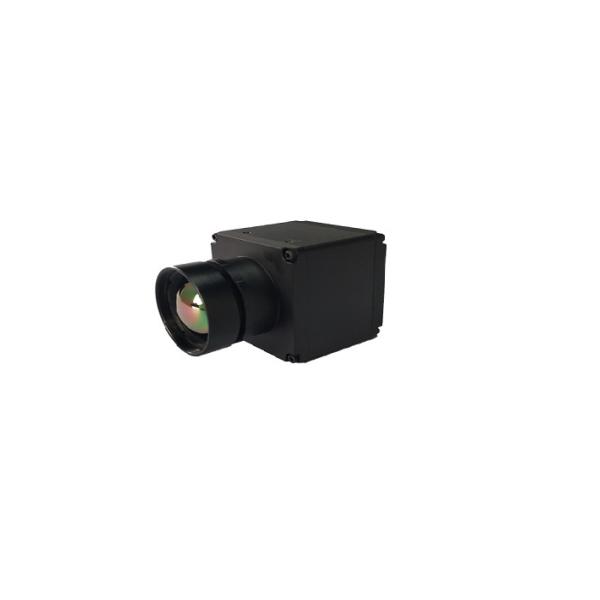

A3817S3-1 Compact LWIR Thermal Camera Core Vox 8-14um uncooled thermal sensor

With the advantage of small size,light weight; multifunctional,easy to extend;standard interface, the system is stable and reliable,easy for further integration and development.

Vox 8 - 14um Thermal Imaging Module Uncooled Thermal Sensor 384 X 288 Resolution

Product Description
Performance
FOV/Minimum Focus Distance 19° x14°/1m(19mm)
N.E.T.D ≤45mK@30°C, #F1.0
Detector Type Uncooled microthermal VOx FPA
Resolution 384 x 288
Wave range 8-14um
Spatial resolution 0.89mrad(19mm Athemalzation Lens)
Environment
Operating Temperature -40°C to +55°C
Storage Temperature -40°C to +70°C
Humility 95% Non-condensing
Protection Rate Customize
Physical
Weight ≤70g, Without Lens
Size ≤33mm(W)x32mm(H)x49mm(L), Without Lens
Interface & Electronics
Interface J30J-9(default),Mini CameraLink(Customize)
Power Supply DC 3-10V
Video Output Combined:PAL@50Hz(NTSC@60Hz optional)
Digital Output CameraLink Customize
Control RS232(default),RS485, RS422(Customize)
Power Consumption ≤1.5W(Static)
Start Up Time ≤20s
Optional Accessories
Lenses

7mm: 52.1゜×39.4゜

13mm: 28° x 21°

19mm: 19° x 14°

And all popular lenses
DRI [Human: 1.7m x 0.6m]
Detect 400m
Recognize 200m
Verify 100m

FAQ

Q: Who are you?
A: We are a thermal camera module manufacturer,who is special with uncooled thermal camera module and cooling thermal module product and related product.

Q: How long is your delivery time?
A: Generally uncooled thermal module it is 4-5 weeks after deposit,cooling thermal module it is 3-4 mouths adter deposit.


Q: Do you provide samples ?
A: No, we provide a complete solution.

Q: Can you do customized product?
A: Yes, we do.

Q: What is your terms of payment ?
A: T/T, L/C, etc.


Q. Do you provide warranty for your products?
A: Yes, we promise one year warranty for all our products.

Q.What is your method of payment?
A: Pay via T/T, Western Union, Paypal, Escrow is welcome.

Q.What is Minimum Order Quantity?
A: Sample order is welcome, but the price is depend on the quantity.

Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, TNT, UPS etc.

For big order, we also have cooperated forwarders.

Q:Compare to other companies, what superiorities do you have?
A: We have independent core technology of thermal imaging, we are specialized at manufacturing thermal camera & system solution. We devote to thermal module field and related technology to supply best products & service to customers worldwide.

Q: Do you accept OEM/ODM?
A: Yes! If you have OEM or ODM plans , highly welcome to negotiate with our sales person, we can provide you guaranteed products, and pretty competitive prices.

Q: Where is your loading port?
A: Shanghai; ningbo,shenzhen

Vox 8 - 14um Thermal Imaging Module Uncooled Thermal Sensor 384 X 288 Resolution
