Fixed AHT3210U 320×240 9Hz 14μM Thermal Vision Camera
Fixed AHT3210U 320×240 9Hz 14μM Thermal Vision Camera
Specifications
Brand Name :
AOI
Model Number :
AHT3210U
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Delivery Time :
5-8 work days
Model :
AHT3210U
Display Screen :
3.2 inch full viewing angle TFT display
Infrared Resolution :
320×240
Visible Light Resolution :
300,000 pixels
LCD Resolution :
320×240
FOV :
35°×26°
Minimum Focal Length :
0.15m
Thermal Sensitivity :
0.07℃
Measurement Range Of TEMP :
-20℃ to 300℃（-4°F to 572°F）
Accuracy Of TEMP :
±2℃/ ±2%
Emissivity :
0.01 to 1.00 adjustable
Frame Rate of thermal image :
9Hz
Description

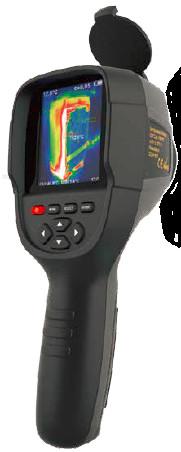

AHT3210U 320×240 9Hz 8μm-14μm Handheld Temperature Measurement Infrared Camera

Introduction

AHT3210U is an infrared thermal imager that combines surface temperature measurement and real-time thermal images. Traditional infrared thermometers need to measure each part one by one, but infrared thermal imaging cameras do not need to do so, thus saving time. Potential problems can be clearly displayed on the color display, and the center point measurement cursor can quickly and accurately locate and measure the temperature of the target object.

In order to increase recognition, the product is also equipped with a visible light camera. Both thermal image and visible light image can be saved to the device, read the image via USB or save it to the computer for report generation and printing.

The product is small in size, easy to operate, and powerful. It is an ideal choice for electric power, electronic manufacturing, industrial inspection and other fields.

The following functions increase the measurement accuracy and usability of the product:

1. The emissivity can be adjusted to improve the accuracy of semi-reflective surface measurement.

2. The maximum and minimum temperature cursors can guide the user to the areas with the highest and lowest temperature of the thermal image.

3. With optional color palette.

Model

AHT2210U

AHT3210U

Display Screen

3.2 inch full viewing angle TFT display

3.2 inch full viewing angle TFT display

Infrared Resolution

220×160

320×240

Visible Light Resolution

300,000 pixels

LCD Resolution

320×240

FOV

35°×26°

Minimum Focal Length

0.15m

Thermal Sensitivity

0.07℃

Measurement Range Of TEMP

-20℃ to 300℃(-4°F to 572°F)

Accuracy Of TEMP

±2℃/ ±2%

Emissivity

0.01 to 1.00 adjustable

Frame Rate of thermal image

9Hz

Pixel Range

8μm-14μm

Focusing method

Fixed

Color palette

Rainbow/ Iron Red/ Cool Color/ White Hot/ Black Hot

Storage

Built-in 3G (can store more than 20,000 images)

Image Format

JPG

USB

Micro USB 2.0

Battery

Built-in rechargeable 18650 mAh battery

Operating Time

2 to 3 hours

Automatic Shutdown Time

Optional: 5 minutes/ 20 minutes/ no automatic shutdown

Set Command

Unit, Language, Date, Time, Information

Language

Chinese, English, German, Italian

Size

90mm×105mm×223mm

Weight

389g

Operating Temperature

0℃ to 45℃

Storage Temperature

-20℃ to 60℃

Humidity

＜85%RH
