Specifications
Model Number :
A6417S
Place of Origin :
China
MOQ :
1
Payment Terms :
All are acceptable except L/C
Supply Ability :
500/Month
Delivery Time :
3-5days
Price :
Negotiation
Special Features :
Waterproof / Weatherproof
Spectral Response :
8-14 μm
Pixel Pitch :
17um
Control Port :
RS232
Dimension :
40x40x48mm
Technology :
Infrared
IR Resolution :
640x512
NETD :
45mk@30°C, #F1.0
Detector :
Uncooled VOX FPA
weight :
100g
Description

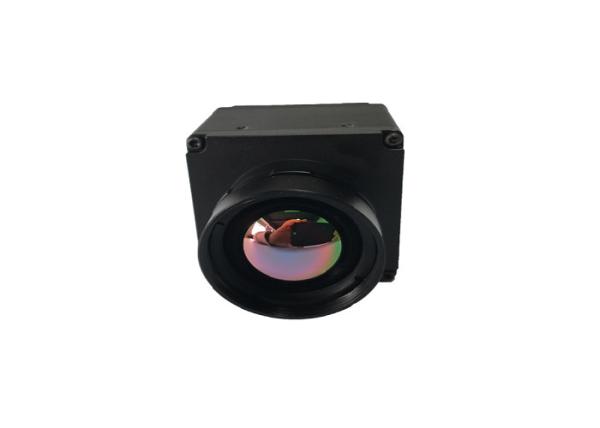

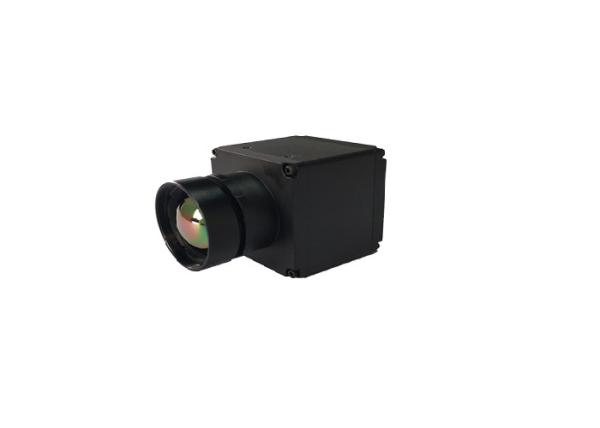

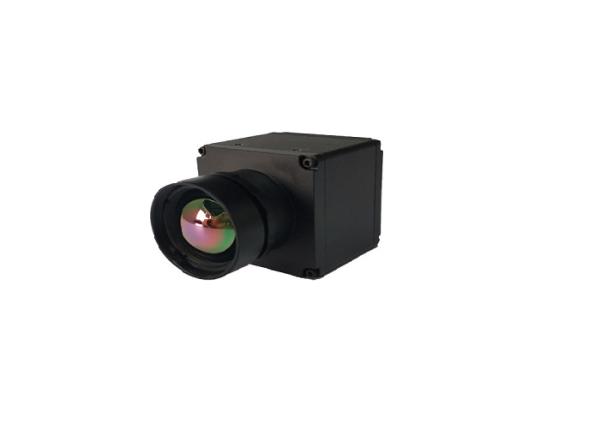

Uncooled Infrared Thermal Module A6417s VOX LWIR infrared heating systems VOX infrared sensor

The A6417s core is thermal imaging module based on a VOx or A-Si detector and using a circular circuit board design.
With the advantage of small size,light weight; multifunctional,easy to extend;standard interface, the system is stable and reliable,easy for further integration and development.
640x512 17um Thermal Camera Module 40 X 40 X 48mm Dimension Infrared Technology NETD45mk

Performance
FOV/Minimum Focus Distance31° x25°/1m(19mm)
N.E.T.D≤45mK@30°C, #F1.0
Detector TypeUncooled microthermal VOx FPA
Resolution640X512
Wave range8-14um
Spatial resolution0.89mrad(19mm Lens)
Environment
Operating Temperature-40°C to +55°C
Storage Temperature-40°C to +70°C
Humility95% Non-condensing
Protection RateCustomize
Physical
Weight≤100g, Without Lens
Size≤40mm(W)x40mm(H)x48mm(L), Without Lens
Interface & Electronics
InterfaceJ30J-9(default),Mini CameraLink(Customize)
Power SupplyDC 3-10V
Video OutputCombined:PAL@50Hz(NTSC@60Hz customize)
Digital OutputCameraLink Customize
ControlRS232(default),RS485, RS422(Customize)
Power Consumption≤2.0W(Static)
Start Up Time≤20s
Optional Accessories
Lenses

13mm: 45° x 37°
19mm: 31° x 25°
35mm: 17.7゜×13.3゜ And all popular lenses

DRI [Human: 1.7m x 0.6m]
Detect400m
Recognize200m
Verify100m


Company Information

Jiangsu Ascendent Optronics INC. (AOI) was established in 2016, where in National High Tech Development Zone of Suzhou Industrial Park. AOI have R&D center which with world-class core technology, it able to development, designing and producing of commercial infrared thermal imaging module and related products and systems.
The company main business is optoelectronic products and high-performance integrated circuit research and development, production and sales, meanwhile engaged in thermal lenses development and sales.
AOI promotes the spirit of Technological convergence, talent convergence and activity convergence by creating a company culture that is guided by a set of common values.
In the future, company will increase R & D investment and expand production scale, and strive to become a leading company in China, also a development of optoelectronic products manufacturer.

Packaging & Shipping

640x512 17um Thermal Camera Module 40 X 40 X 48mm Dimension Infrared Technology NETD45mk

FAQ

Q: Who are you?
A: We are a thermal camera module manufacturer,who is special with uncooled thermal camera module and cooling thermal module product and related product.


Q: How long is your delivery time?
A: Generally uncooled thermal module it is 4-5 weeks after deposit,cooling thermal module it is 3-4 mouths adter deposit.

Q: Do you provide samples ?
A: No, we provide a complete solution.


Q: Can you do customized product?
A: Yes, we do.


Q: What is your terms of payment ?
A: T/T, L/C, etc.

Q. Do you provide warranty for your products?
A: Yes, we promise one year warranty for all our products.
Q.What is your method of payment?
A: Pay via T/T, Western Union, Paypal, Escrow is welcome.


Q.What is Minimum Order Quantity?
A: Sample order is welcome, but the price is depend on the quantity.
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, TNT, UPS etc.

For big order, we also have cooperated forwarders.

Q:Compare to other companies, what superiorities do you have?
A: We have independent core technology of thermal imaging, we are specialized at manufacturing thermal camera & system solution. We devote to thermal module field and related technology to supply best products & service to customers worldwide.
Q: Do you accept OEM/ODM?
A: Yes! If you have OEM or ODM plans , highly welcome to negotiate with our sales person, we can provide you guaranteed products, and pretty competitive prices.
Q: Where is your loading port?
A: Shanghai; ningbo,shenzhen
