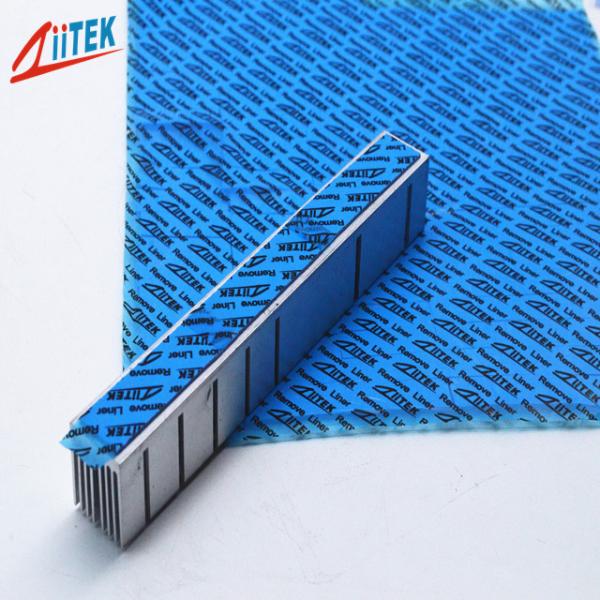

2.5mm T Thickness Thermal Gap Filler Pad , 3W / MK LED Lighting Thermal Pad
2.5mm T Thickness Thermal Gap Filler Pad , 3W / MK LED Lighting Thermal Pad
2.5mm T Thickness Thermal Gap Filler Pad , 3W / MK LED Lighting Thermal Pad
2.5mm T Thickness Thermal Gap Filler Pad , 3W / MK LED Lighting Thermal Pad
2.5mm T Thickness Thermal Gap Filler Pad , 3W / MK LED Lighting Thermal Pad
2.5mm T Thickness Thermal Gap Filler Pad , 3W / MK LED Lighting Thermal Pad
Specifications
Brand Name :
ZIITEK
Model Number :
TIF 140-32-05S
Certification :
RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
thickness :
2.5mmT
PRODUCT NAME :
thermal gap filler
material :
silicone thermal pads
application :
LED Lighting
Description

Ziitek thermal conductive interface materials are widely recognized and trusted by users and can meet continuously developing economic and social needs.

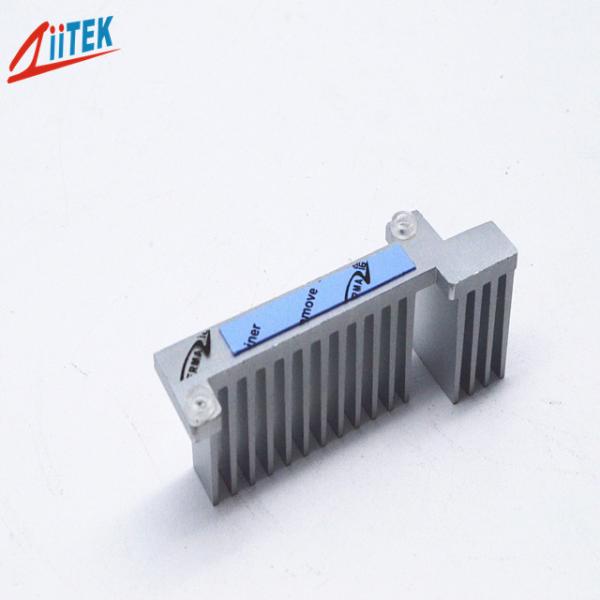

2.5mm T Thickness Thermal Gap Filler Pad , 3W / MK LED Lighting Thermal Pad

The TIF5100S use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.


Features:

Fiberglass reinforced for puncture, shear and tear resistance 3 W/mK
Easy release construction
Electrically isolating
High durability

Applications:

AD-DC Power Adapters
Rainproof LED Power
Waterproof LED Power
SMD LED module
LED Flesible strip, LED bar
LED PanelLight
LED floor light
routers

Typical Properties of TIF 5100S
Color

BLUE

 Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
 *** 10mils / 0.254 mm

0.55
20mils / 0.508 mm

0.82
Specific Gravity

2.87 g/cc

 ASTM D297

30mils / 0.762 mm

1.01

40mils / 1.016 mm

1.11
Heat Capacity

1 l/g-K

 ASTM C351

50mils / 1.270 mm

1.27

60mils / 1.524 mm

1.45
Hardness
 40
(Shore 00)		 ASTM 2240

70mils / 1.778 mm

1.61

80mils / 2.032 mm

1.77

Tensile Strength

40 psi

 ASTM D412

90mils / 2.286 mm

1.91

100mils / 2.540 mm

2.05
Continuos Use Temp
 -50 to 200℃

***

110mils / 2.794 mm

2.16

120mils / 3.048 mm

2.29

Dielectric Breakdown Voltage
 >1500～>5500 VAC ASTM D149

130mils / 3.302mm

2.44

140mils / 3.556 mm

2.56
Dielectric Constant
 5.5 MHz ASTM D150

150mils / 3.810 mm

2.67

160mils / 4.064 mm

2.77
Volume Resistivity
 4.0X10"
Ohm-meter		 ASTM D257

170mils / 4.318 mm

2.89

180mils / 4.572 mm

2.98
Fire rating
 94 V0

equivalent UL

190mils / 4.826 mm

3.05

200mils / 5.080 mm

3.14
Thermal conductivity
 3W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Standard Thicknesses:
0.100" (2.5mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.
2.5mm T Thickness Thermal Gap Filler Pad , 3W / MK LED Lighting Thermal Pad

Our services

Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL
