0.5mm T Fiberglass Reinforced Thermal Gap Filler Pad For Heat Sinking Housing
0.5mm T Fiberglass Reinforced Thermal Gap Filler Pad For Heat Sinking Housing
0.5mm T Fiberglass Reinforced Thermal Gap Filler Pad For Heat Sinking Housing
0.5mm T Fiberglass Reinforced Thermal Gap Filler Pad For Heat Sinking Housing
0.5mm T Fiberglass Reinforced Thermal Gap Filler Pad For Heat Sinking Housing
0.5mm T Fiberglass Reinforced Thermal Gap Filler Pad For Heat Sinking Housing
Specifications
Brand Name :
ZIITEK
Model Number :
TIF120FG-14S
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Color :
PINK
thickness :
0.5mmT
Brand :
Ziitek
PRODUCT NAME :
TIF120FG-14S
keyword :
fiberglass reinforced thermal gap filler
application :

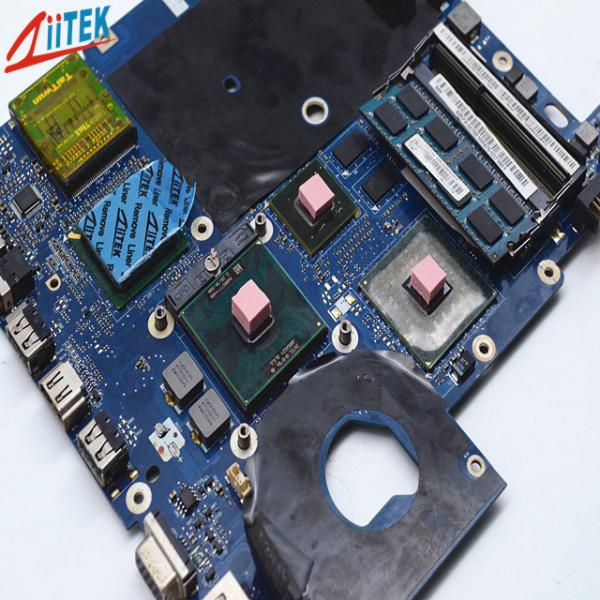

Heat Sinking Housing at LED-lit BLU in LCD
Description

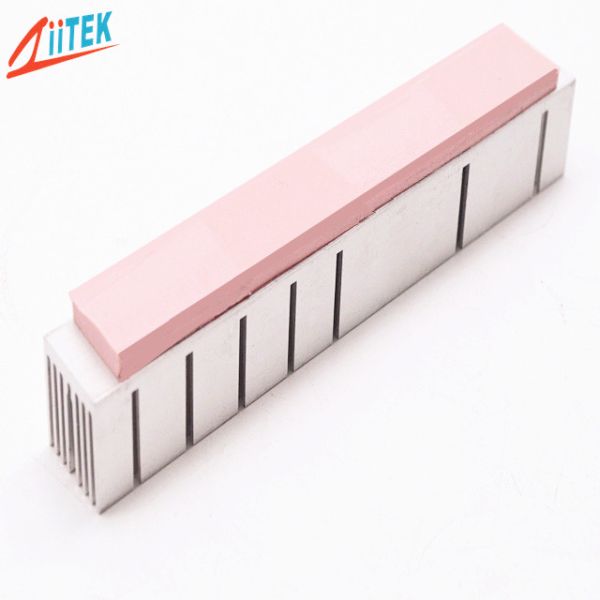

0.5mm T Fiberglass Reinforced Thermal Gap Filler Pad For Heat Sinking Housing

The TIF120FG-14S is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.


Features:

Broad range of hardnesses available 1.5 W/mK
Moldability for complex parts
Outstanding thermal performance
High tack surface reduces contact resistance
RoHS compliant
UL recognized

Applications:

notebook
power supply
Heat pipe thermal solutions
Memory Modules
Mass storage devices
Automotive electronics
Set top boxes
Audio and video components
IT infrastructure

Typical Properties of TIF 120FG-14S
Color

pink

 Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
 *** 10mils / 0.254 mm

0.55
20mils / 0.508 mm

0.82
Specific Gravity

2.87 g/cc

 ASTM D297

30mils / 0.762 mm

1.01

40mils / 1.016 mm

1.11
Heat Capacity

1 l/g-K

 ASTM C351

50mils / 1.270 mm

1.27

60mils / 1.524 mm

1.45
Hardness
 45
(Shore 00)		 ASTM 2240

70mils / 1.778 mm

1.61

80mils / 2.032 mm

1.77

Tensile Strength

40 psi

 ASTM D412

90mils / 2.286 mm

1.91

100mils / 2.540 mm

2.05
Continuos Use Temp
 -50 to 200℃

***

110mils / 2.794 mm

2.16

120mils / 3.048 mm

2.29

Dielectric Breakdown Voltage
 >1500～>5500 VAC ASTM D149

130mils / 3.302mm

2.44

140mils / 3.556 mm

2.56
Dielectric Constant
 5.5 MHz ASTM D150

150mils / 3.810 mm

2.67

160mils / 4.064 mm

2.77
Volume Resistivity
 4.0X10"
Ohm-meter		 ASTM D257

170mils / 4.318 mm

2.89

180mils / 4.572 mm

2.98
Fire rating
 94 V0

equivalent UL

190mils / 4.826 mm

3.05

200mils / 5.080 mm

3.14
Thermal conductivity
 1.5 W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470
Standard Thicknesses:
0.010" (0.25mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.
0.5mm T Fiberglass Reinforced Thermal Gap Filler Pad For Heat Sinking Housing

Standard Thicknesses:

0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.
