2W / MK Cooling Thermal Conductive Silicone Adhesive Gap Insulation Pad
2W / MK Cooling Thermal Conductive Silicone Adhesive Gap Insulation Pad
2W / MK Cooling Thermal Conductive Silicone Adhesive Gap Insulation Pad
2W / MK Cooling Thermal Conductive Silicone Adhesive Gap Insulation Pad
2W / MK Cooling Thermal Conductive Silicone Adhesive Gap Insulation Pad
2W / MK Cooling Thermal Conductive Silicone Adhesive Gap Insulation Pad
Specifications
Brand Name :
ZIITEK
Model Number :
TIF120FG-20-15S
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
HARDNESS :
45SHORE00
thickness :
0.5mmT
Brand :
Ziitek
PRODUCT NAME :
TIF120FG-20-15S
keyword :
INSULATION thermal gap pad
application :
LED lighting
Description

2W / MK Cooling Thermal Conductive Silicone Adhesive Gap Insulation Pad

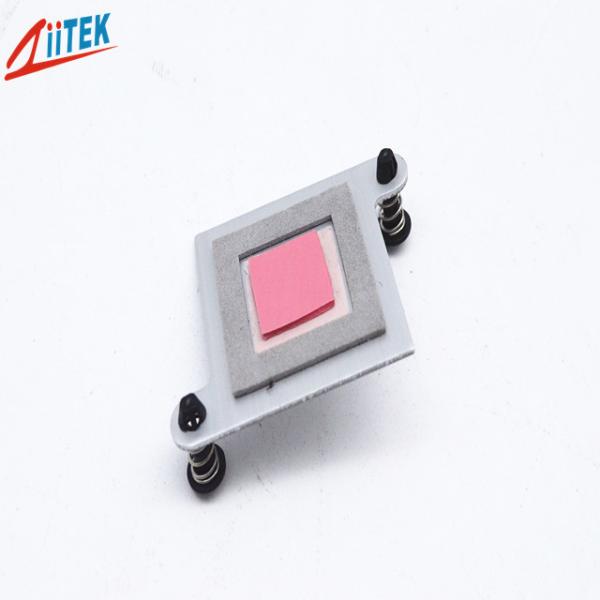

The TIF120FG-20-15S is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling


Features:

Good thermal conductive 2 W/mK
Moldability for complex parts
Soft and compressible for low stress applications
Naturally tacky needing no further adhesive coating 2 W/mK
Available in varies thicknesses

Applications:

CPU
display card
mainboard/mother board
notebook
power supply

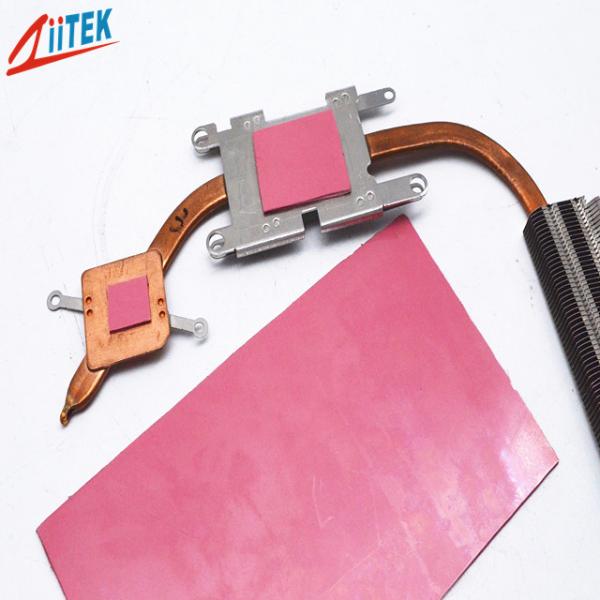

Heat pipe thermal solutions
Memory Modules
Mass storage devices
Automotive electronics

Typical Properties of TIF 120FG-20-15S
Color

pink

 Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
 *** 10mils / 0.254 mm

0.55
20mils / 0.508 mm

0.82
Specific Gravity

2.87 g/cc

 ASTM D297

30mils / 0.762 mm

1.01

40mils / 1.016 mm

1.11
Heat Capacity

1 l/g-K

 ASTM C351

50mils / 1.270 mm

1.27

60mils / 1.524 mm

1.45
Hardness
 45
(Shore 00)		 ASTM 2240

70mils / 1.778 mm

1.61

80mils / 2.032 mm

1.77

Tensile Strength

40 psi

 ASTM D412

90mils / 2.286 mm

1.91

100mils / 2.540 mm

2.05
Continuos Use Temp
 -50 to 200℃

***

110mils / 2.794 mm

2.16

120mils / 3.048 mm

2.29

Dielectric Breakdown Voltage
 >1500～>5500 VAC ASTM D149

130mils / 3.302mm

2.44

140mils / 3.556 mm

2.56
Dielectric Constant
 5.5 MHz ASTM D150

150mils / 3.810 mm

2.67

160mils / 4.064 mm

2.77
Volume Resistivity
 4.0X10"
Ohm-meter		 ASTM D257

170mils / 4.318 mm

2.89

180mils / 4.572 mm

2.98
Fire rating
 94 V0

equivalent UL

190mils / 4.826 mm

3.05

200mils / 5.080 mm

3.14
Thermal conductivity
 2 W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470
Standard Thicknesses:
0.0203" (0.5mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.
2W / MK Cooling Thermal Conductive Silicone Adhesive Gap Insulation Pad

Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.

Standard Thicknesses:

0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.
