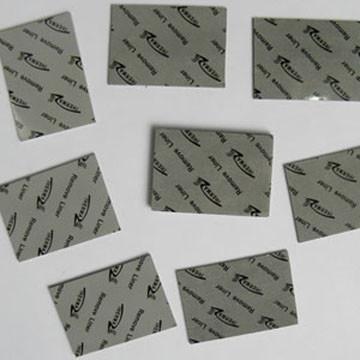

Telecommunication Hardware 3.0W/m-K Thermal Gap Fillers Materials With High Thermal Conductivity 45 shore00

The TIF100-30-02US thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:

> Good thermal conductive:3.0 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.

Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.

Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.

TIF100-30-02US Datasheet-REV02.pdf
