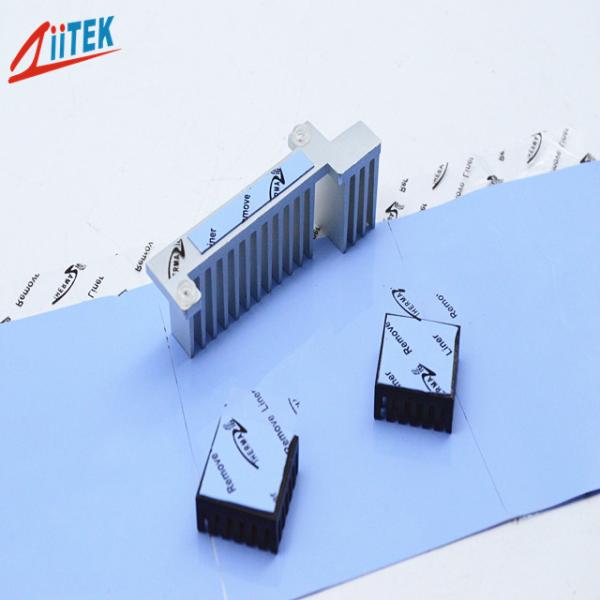

Thermal Gap Filler TIF100-30-05U 3.0 W/mK blue ultra soft natually tacky silicone gap pad -50 to 200℃
Thermal Gap Filler TIF100-30-05U 3.0 W/mK blue ultra soft natually tacky silicone gap pad -50 to 200℃
Thermal Gap Filler TIF100-30-05U 3.0 W/mK blue ultra soft natually tacky silicone gap pad -50 to 200℃
Thermal Gap Filler TIF100-30-05U 3.0 W/mK blue ultra soft natually tacky silicone gap pad -50 to 200℃
Thermal Gap Filler TIF100-30-05U 3.0 W/mK blue ultra soft natually tacky silicone gap pad -50 to 200℃
Thermal Gap Filler TIF100-30-05U 3.0 W/mK blue ultra soft natually tacky silicone gap pad -50 to 200℃
Thermal Gap Filler TIF100-30-05U 3.0 W/mK blue ultra soft natually tacky silicone gap pad -50 to 200℃
Thermal Gap Filler TIF100-30-05U 3.0 W/mK blue ultra soft natually tacky silicone gap pad -50 to 200℃
Specifications
Brand Name :
ZIITEK
Model Number :
TIF100-30-05U
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Volume Resistivity :
8X1012Ohm-meter
Specific Gravity :
2.85 g/cc
Heat Capacity :
1 l /g-K
Color :
Blue
Continuos Use Temp :
-50 to 200℃
Hardness :
27 Shore 00
Description

Thermal Gap Filler TIF100-30-05U 3.0 W/mK blue ultra soft natually tacky silicone gap pad -50 to 200℃
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

The TIF100-30-05U is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF100-30-05U is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Features:
> Good thermal conductive: 3.0 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

Typical Properties of TIF™ 100-30-05U Series
Color

Blue

VisualComposite ThicknesshermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
***10mils / 0.254 mm0.21
20mils / 0.508 mm0.27
Specific Gravity
2.80 g /ccASTM D297

30mils / 0.762 mm

0.39

40mils / 1.016 mm

0.43
Heat Capacity
1 l /g-KASTM C351

50mils / 1.270 mm

0.50

60mils / 1.524 mm

0.58

Hardness
27 Shore 00ASTM 2240

70mils / 1.778 mm

0.65

80mils / 2.032 mm

0.76
Tensile Strength

55 ps

ASTM D412

90mils / 2.286 mm

0.85

100mils / 2.540 mm

0.94
Continuos Use Temp
-50 to 200℃

***

110mils / 2.794 mm

1.00

120mils / 3.048 mm

1.07
Dielectric Breakdown Voltage
>10000 VACASTM D149

130mils / 3.302mm

1.16

140mils / 3.556 mm

1.25
Dielectric Constant
7.5 MHzASTM D150

150mils / 3.810 mm

1.31

160mils / 4.064 mm

1.38
Volume Resistivity
8X1012Ohm-meterASTM D257

170mils / 4.318 mm

1.43

180mils / 4.572 mm

1.50
Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

1.60

200mils / 5.080 mm

1.72
Thermal conductivity
3.0 W/m-KASTM D5470Visua l/ ASTM D751ASTM D5470

Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Packaging Details & Lead time

The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated

Thermal Gap Filler TIF100-30-05U 3.0 W/mK blue ultra soft natually tacky silicone gap pad -50 to 200℃

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract


Ziitek Culture

Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
