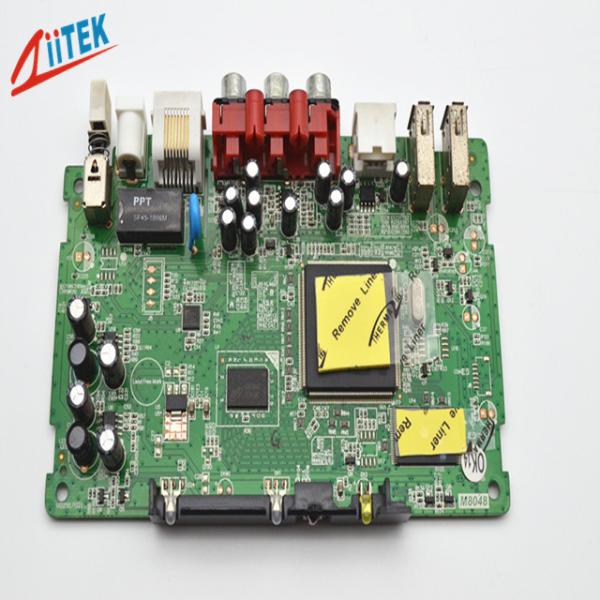

0.95W/mK YELLOW Thermal Phase Changing Materials TIC™805Y with 0.024℃-in² / W
0.95W/mK YELLOW Thermal Phase Changing Materials TIC™805Y with 0.024℃-in² / W
0.95W/mK YELLOW Thermal Phase Changing Materials TIC™805Y with 0.024℃-in² / W
0.95W/mK YELLOW Thermal Phase Changing Materials TIC™805Y with 0.024℃-in² / W
0.95W/mK YELLOW Thermal Phase Changing Materials TIC™805Y with 0.024℃-in² / W
0.95W/mK YELLOW Thermal Phase Changing Materials TIC™805Y with 0.024℃-in² / W
0.95W/mK YELLOW Thermal Phase Changing Materials TIC™805Y with 0.024℃-in² / W
0.95W/mK YELLOW Thermal Phase Changing Materials TIC™805Y with 0.024℃-in² / W
Specifications
Brand Name :
Ziitek
Model Number :
TIC™805Y
Certification :
RoHs
Place of Origin :
China
MOQ :
1000PCS
Price :
negotiation
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
1000pcs/bay
Product Name :
Phase Changing Materials
Color :
Yellow
Thermal Conductivity :
0.95 W/mK
Density :
2.2g/cc
Temperature range :
-25℃～125℃
Description

0.95W/mK YELLOW Thermal Phase Changing Materials TIC™805Y with 0.024℃-in² / W

The TIC™805Y Series is low melting point thermal interface material. At 50℃, The TIC™805Y Series begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance.The TIC™805Y Series is a flexible solid at room temperature and freestanding without reinforcing components that reduce thermal performance.

The TIC™805Y Series shows no thermal performance degradation after 1,000 hours@130℃,or after 500 cycles, from -25℃ to 125℃.The material softens and does not fully change state resulting in minimal migration (pump out)at operating temperatures.

Features


>0.024℃-in² /W thermal resistance
>Naturally tacky at room temperature, no adhesive required
>No heat sink preheating required

Applications

High Frequency Microprocessors
Notebook
Computer Serves
Memory Modules
Cache Chips
IGBTs
COB Led
Desktop PCs
CPU
Microprocessors
Chipsets
Graphic Processing Chips
Custom ASICs
Servers
Memory Modules
Power semiconductors
Power conversion modules
LED Power Supply
LED Controller
LED Lights
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters

0.95W/mK YELLOW Thermal Phase Changing Materials TIC™805Y with 0.024℃-in² / W

Typical Properties of TIC™805Y Series
Product Name TICTM805Y Testing standards
Color Yellow Visual
Composite Thickness

 0.005"
(0.126mm)		 　
Thickness Tolerance ±0.0008"
(±0.019mm)		 　
Density 2.2g/cc Helium Pycnometer
Work temperature -25℃～125℃ 　
phase transition temperature 50℃~60℃ 　
Thermal conductivity 0.95 W/mK ASTM D5470 (modified)
Thermal lmpedance @ 50 psi(345 KPa) 0.024℃-in²/W ASTM D5470 (modified)
0.15℃-cm²/W
Standard Thicknesses:

0.003"(0.076mm) 0.005"(0.127mm) 0.008"(0.203mm) 0.010"(0.254mm)
Consult the factory alternate thickness.
0.95W/mK YELLOW Thermal Phase Changing Materials TIC™805Y with 0.024℃-in² / W

Standard Sizes:

9" x 18"(228mm x 457mm) 9" x 400'(228mm x 121M)
TIC™800 series are supplied with a white release paper and a bottom liner. TIC™800 series is available in kiss cut an extended pull tab liner or individual die cut shapes.

Peressure Sensitive Adhesive:

Peressure Sensitive Adhesive is not applicable for TIC™800 series products.

Reinforcement:

No reinforcement is necessary.
