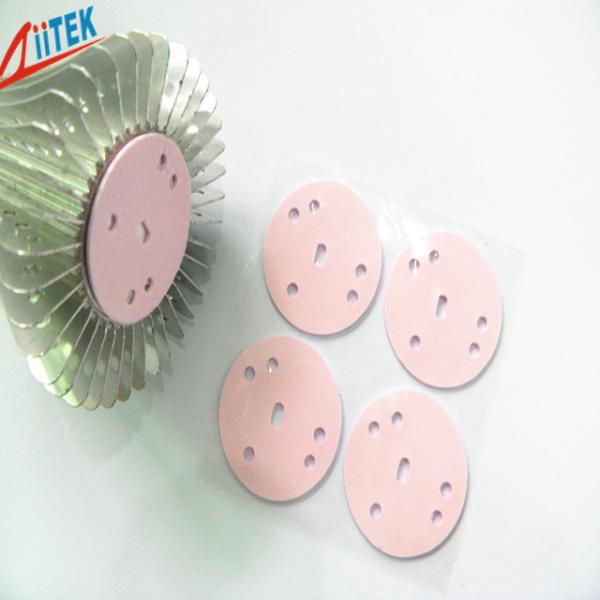

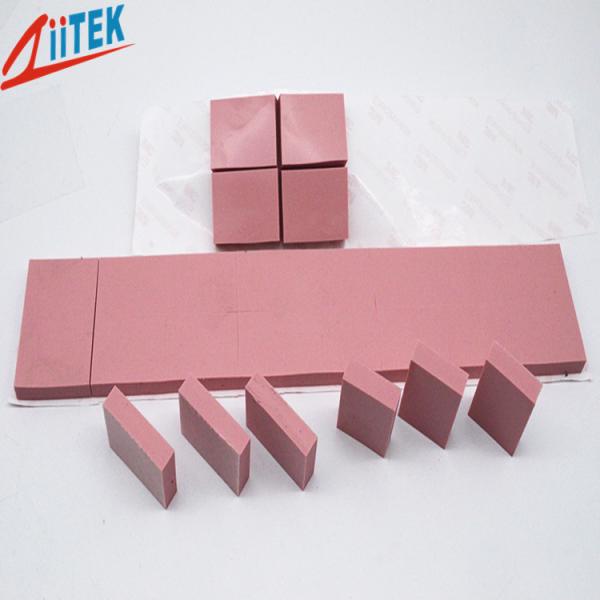

UL Recognized 45 Shore 00 Thermal Conductive Pad Pink Silicone Sheet 2.5W/mK For High Speed Mass Storage Drives
UL Recognized 45 Shore 00 Thermal Conductive Pad Pink Silicone Sheet 2.5W/mK For High Speed Mass Storage Drives
UL Recognized 45 Shore 00 Thermal Conductive Pad Pink Silicone Sheet 2.5W/mK For High Speed Mass Storage Drives
UL Recognized 45 Shore 00 Thermal Conductive Pad Pink Silicone Sheet 2.5W/mK For High Speed Mass Storage Drives
UL Recognized 45 Shore 00 Thermal Conductive Pad Pink Silicone Sheet 2.5W/mK For High Speed Mass Storage Drives
UL Recognized 45 Shore 00 Thermal Conductive Pad Pink Silicone Sheet 2.5W/mK For High Speed Mass Storage Drives
UL Recognized 45 Shore 00 Thermal Conductive Pad Pink Silicone Sheet 2.5W/mK For High Speed Mass Storage Drives
UL Recognized 45 Shore 00 Thermal Conductive Pad Pink Silicone Sheet 2.5W/mK For High Speed Mass Storage Drives
Specifications
Brand Name :
ZIITEK
Model Number :
TIF100-25-48s
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
100000pcs/day
Delivery Time :
3-5 days
Packaging Details :
1000pcs/bag
Color :
Light Gray
Thermal conductivity :
2.5W/mK
Hardness :
45 Shore 00
Specific Gravity :
2.50 g/cc
Dielectric Constant :
7.5 MHz
Continuos Use Temp :
-50 to 200℃
Description

UL Recognized 45 Shore 00 Thermal Conductive Pad Pink Silicone Sheet 2.5W/mK For High Speed Mass Storage Drives

The TIF100-25-48s Series This product can be applied to LED lights and LED TVS. Thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.


Features:

> Good thermal conductive: 2.5W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness


Applications:


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

Typical Properties of TIF100-25-48s Series
Color
 Pink Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
 *** 10mils / 0.254 mm

0.48
20mils / 0.508 mm

0.56
Specific Gravity

2.50 g/cc

 ASTM D297

30mils / 0.762 mm

0.71

40mils / 1.016 mm

0.80
Heat Capacity

1 l/g-K

 ASTM C351

50mils / 1.270 mm

0.91

60mils / 1.524 mm

0.94
Hardness
 45 Shore 00 ASTM 2240

70mils / 1.778 mm

1.05

80mils / 2.032 mm

1.15

Tensile Strength

40 psi

 ASTM D412

90mils / 2.286 mm

1.25

100mils / 2.540 mm

1.34

Continuos Use Temp
 -50 to 200℃

***

110mils / 2.794 mm

1.43

120mils / 3.048 mm

1.52

Dielectric Breakdown Voltage
 >10000 VAC ASTM D149

130mils / 3.302mm

1.63

140mils / 3.556 mm

1.71
Dielectric Constant
 7.5 MHz ASTM D150

150mils / 3.810 mm

1.81

160mils / 4.064 mm

 1.89
Volume Resistivity
 7.8X10" Ohm-meter ASTM D257

170mils / 4.318 mm

1.98

180mils / 4.572 mm

2.07

Fire rating
 94 V0

equivalent UL

190mils / 4.826 mm

2.14

200mils / 5.080 mm

2.22

Thermal conductivity
 2.5W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
