Thermal Conductive Compound Grease -45℃ - 200℃ never dry 0.009℃-in²/W @ 50 psi(344 KPa) Metal oxide filled silicone oil
Thermal Conductive Compound Grease -45℃ - 200℃ never dry 0.009℃-in²/W @ 50 psi(344 KPa) Metal oxide filled silicone oil
Thermal Conductive Compound Grease -45℃ - 200℃ never dry 0.009℃-in²/W @ 50 psi(344 KPa) Metal oxide filled silicone oil
Thermal Conductive Compound Grease -45℃ - 200℃ never dry 0.009℃-in²/W @ 50 psi(344 KPa) Metal oxide filled silicone oil
Thermal Conductive Compound Grease -45℃ - 200℃ never dry 0.009℃-in²/W @ 50 psi(344 KPa) Metal oxide filled silicone oil
Thermal Conductive Compound Grease -45℃ - 200℃ never dry 0.009℃-in²/W @ 50 psi(344 KPa) Metal oxide filled silicone oil
Specifications
Brand Name :
Ziitek
Model Number :
TIG780-50
Certification :
RoHs
Place of Origin :
China
MOQ :
1KG
Supply Ability :
100KG/Days
Delivery Time :
3-5 work days
Packaging Details :
1KG/CAN
Product Name :
TIG780-50
Color :
Gray
Construction & Compostion :
Metal oxide filled silicone oil
Thermal Conductivity :
5.0 W/mK
Evaporation :
0.15% / 200℃@24hrs
Viscosity :
2300K cps @.25℃
Description

Thermal Conductive Compound Grease -45℃ - 200℃ never dry 0.009℃-in²/W @ 50 psi(344 KPa) Metal oxide filled silicone oil

The TIG™780-50 products are the high-efficiency heat dissipation ones for the fillings between the electronic components and the heat dissipation fins. They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance. Consequently, the heat dissipation efficiency is far superior to that offered by others.

Features

> 0.009 ℃-in² /W thermal resistance
> One component paste like interface material, never dry
> Thermal compound formulated to maximize the heat transfer
> Outstanding electrical insulation properties and will not harden on long exposure to elevated temperatures
> Non-toxic and environmentally safe

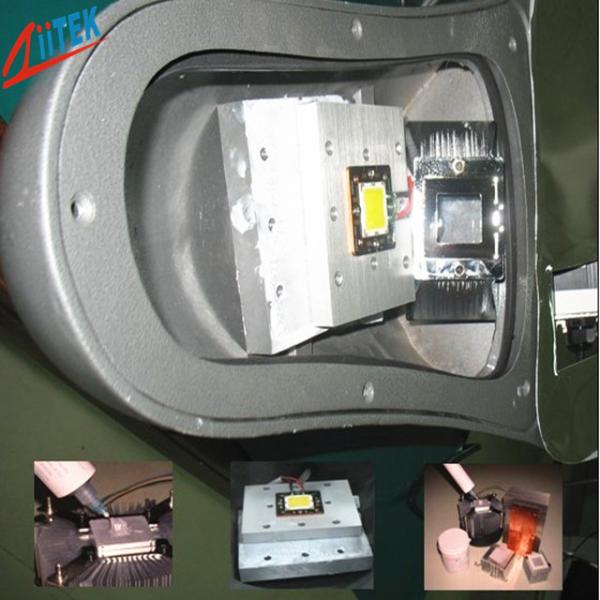

Applications
Semiconductor cases and heat sinks
Power resistors and chassis, thermostats and mating surfaces, and thermoelectric cooling devices
CPUs and GPUs
Automatic dispensing and screen-printing
Mobile, desktop
Engine and transmission control modules
Memory modules
Power conversion equipment
Power supplies and UPS
Power semiconductors
Integrated Gate Bipolar Transistors (IGBT)
Between any heat generating semiconductor and heat sink
Custom power modules
Telecommunications and automotive electronics
LED Power Supply
LED Controller
LED Lights
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters
Rainproof LED Power Supply
Waterproof LED Power Supply
Piranha wroof and common lED module
LED module for Channelletters
SMD LED module
Typical Properties of TIG™780-50 Series
ProductName
TIGTM780-50
Test Method
Color
Gray
Visual
Construction &
Compostion
Metal oxide filled silicone oil
Viscosity
2300K cps @.25℃
Brookfield RVF,#7

Specific Gravity
2.7 g/cm3
Continuous Use Temp
-49℉ to 392℉ / -45℃ to 200℃
*****
Evaporation
0.13% / 200℃@24hrs
*****
Thermal Conductivity
5.0 W/mK
ASTM D5470
Thermal lmpedance
0.009℃-in²/W @ 50 psi(344 KPa)
ASTM D5469

Package:
TIG™780 series is available in 1kg (pint container), 3kg (quart container), and 10kg (gallon container) or custom packaged in syringes for automated applications.

Thermal Conductive Compound Grease -45℃ - 200℃ never dry 0.009℃-in²/W @ 50 psi(344 KPa) Metal oxide filled silicone oil
