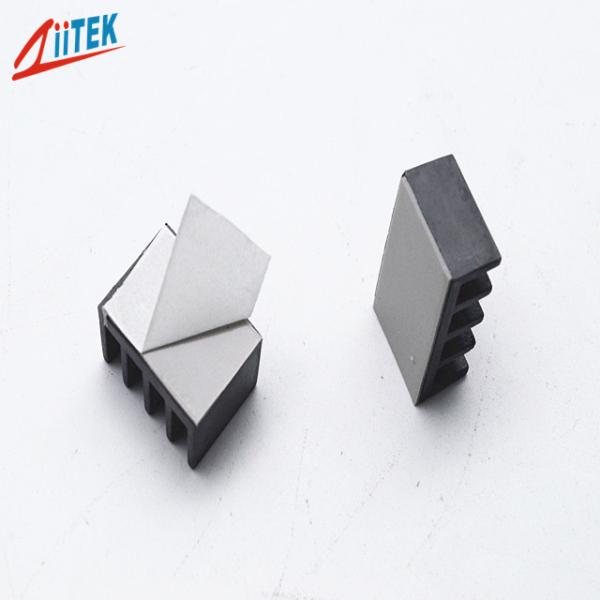

Silicone Thermal Conductivity Pad Sheets 0.40% For Mass Storage Devices
Silicone Thermal Conductivity Pad Sheets 0.40% For Mass Storage Devices
Silicone Thermal Conductivity Pad Sheets 0.40% For Mass Storage Devices
Silicone Thermal Conductivity Pad Sheets 0.40% For Mass Storage Devices
Specifications
Brand Name :
ZIITEK
Model Number :
TIF1180-50-11US
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
1000pcs/bag
Certifications :
UL
Outgassing(TML) :
0.40%
Colour :
gray
Continuos Use Temp :
-40 to 160℃
Thermal conductivity :
5.0 W/m-K
name :
Silicone Thermal Conductivity Pad Sheets 0.40% For Mass Storage Devices
keyword :
thermal gap pad
Description

Broad range of hardnesses available silicone sheets for Mass storage devices , 0.40%

The TIF1180-50-11US is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling

TIF100-50-11US-Datasheet-REV02.pdf

Features

> Good thermal conductive: 5.0 W/mK

>Thickness:4.5mmT

>hardness:20 shore00

>Colour: Gray

>Easy release construction

>Electrically isolating

>High durability

Applications

>LED Power Supply

>LED Controller

>LED Ceilinglamp

>Monitoring the Power Box

>AD-DC Power Adapters

>Rainproof LED Power

Typical Properties of TIF1180-50-11US Series
Color
gray
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity
2.9g/cc
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness
4.5mmT
***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness
20 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Outgassing(TML)
0.40%
ASTM E595
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
>5500 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant
4.2 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
1.0X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
5.0 W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

TIF™ series Individual die cut shapes can be supplied.

Silicone Thermal Conductivity Pad Sheets 0.40% For Mass Storage Devices

FAQ:

Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
