1.5mmT Thermal Gap Pad 2.5g/Cc 18 Shore 00 UL Recognized
1.5mmT Thermal Gap Pad 2.5g/Cc 18 Shore 00 UL Recognized
1.5mmT Thermal Gap Pad 2.5g/Cc 18 Shore 00 UL Recognized
1.5mmT Thermal Gap Pad 2.5g/Cc 18 Shore 00 UL Recognized
1.5mmT Thermal Gap Pad 2.5g/Cc 18 Shore 00 UL Recognized
1.5mmT Thermal Gap Pad 2.5g/Cc 18 Shore 00 UL Recognized
Specifications
Brand Name :
ZIITEK
Model Number :
TIF180-18-01US
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
1000pcs/bag
Heat Capacity :
1 l/g-K
Thermal conductivity :
1.8 W/m-K
Hardness :
18 Shore 00
Density :
2.5 g/cc
Continuos Use Temp :
-40 to 160℃
Flame rating :
94 V0
Description

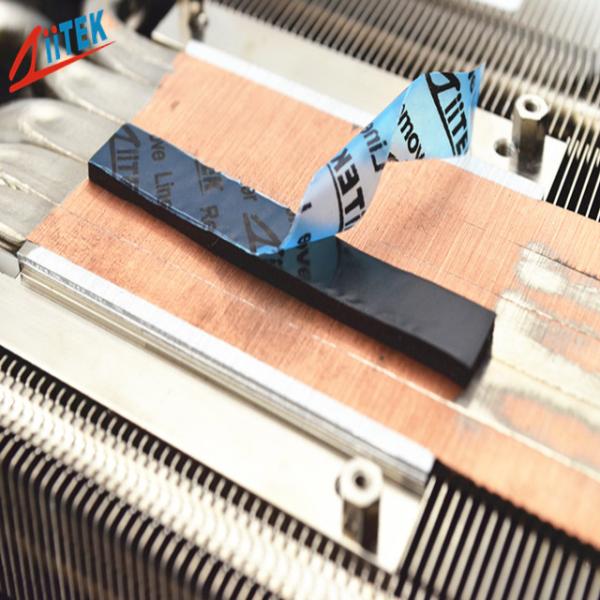

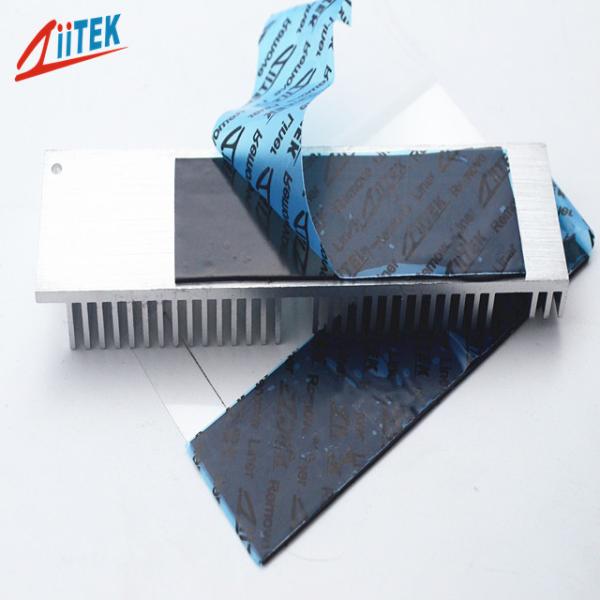

UL Recognized 1.5mmT Thermal Gap Pad, 2.5g/cc, 18 Shore 00 for Audio Video Components

The TIF180-18-01US thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

TIF100-18-01US-Specification-sheet.pdf


Features

> Good thermal conductive: 1.8 W/mK

>Thickness:2.0mmT

>hardness:18 shore00

>Colour: black

>Easy release construction

>High tack surface reduces contact resistance

>Outstanding thermal performance


Applications

>Mass storage devices

>Automotive electronics

>Set top boxes

>Audio and video components

>IT infrastructure

>Micro heat pipe thermal solutions

>Automotive engine control units

>Telecommunication hardware

Typical Properties of TIF180-18-01US Series
Color
black
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity
2.5g/cc
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness
2.0mmT
***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness
18 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Outgassing(TML)
0.45%
ASTM E595
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
>5500 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant
4.5 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
1.0X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
1.8 W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

1.5mmT Thermal Gap Pad 2.5g/Cc 18 Shore 00 UL Recognized

FAQ

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
