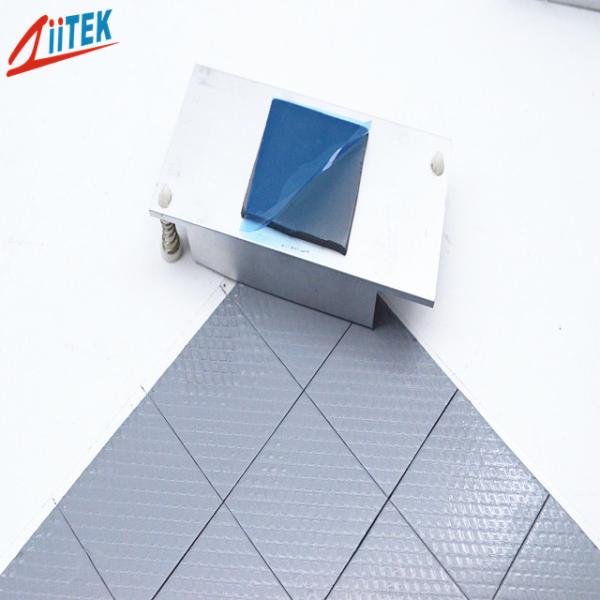

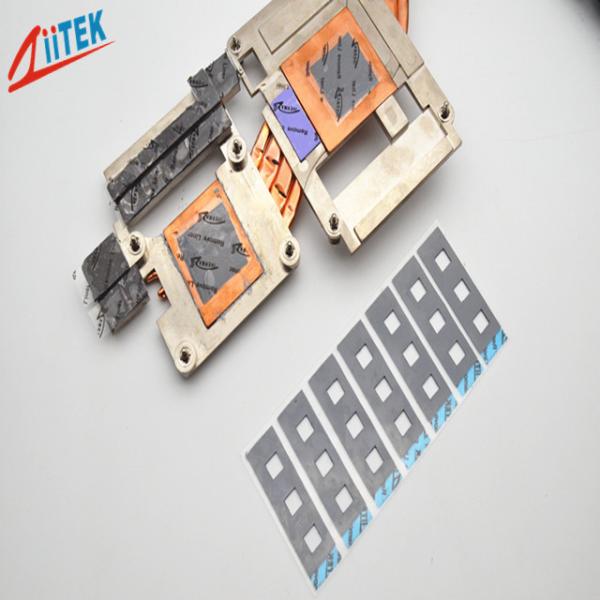

Large Tolerance Stack Ups Thermal Conductive Gap Pad 20 Shore 00 For Routers 4.0W
Large Tolerance Stack Ups Thermal Conductive Gap Pad 20 Shore 00 For Routers 4.0W
Large Tolerance Stack Ups Thermal Conductive Gap Pad 20 Shore 00 For Routers 4.0W
Large Tolerance Stack Ups Thermal Conductive Gap Pad 20 Shore 00 For Routers 4.0W
Large Tolerance Stack Ups Thermal Conductive Gap Pad 20 Shore 00 For Routers 4.0W
Large Tolerance Stack Ups Thermal Conductive Gap Pad 20 Shore 00 For Routers 4.0W
Specifications
Brand Name :
ZIITEK
Model Number :
TIF540-40-11US
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Hardness :
20 Shore 00
Specific Gravity :
3.1 g/cc
Dielectric Breakdown Voltage :
>5500 VAC
Fire rating :
94-V0
Construction & Compostion :
Ceramic filled silicone rubber
Tensile Strength :
40 psi
Description

Large tolerance stack ups thermal conductive gap pad 20 Shore 00 for routers 4.0W silicone pads for gap filling


The TIF540-40-11US is a highly compliant Gap Pad material that is ideal for fragile component leads. The material is fiberglass reinforced for improved puncture resistance and handling TIF540-40-11US maintains a conformable, yet elastic nature that provides excellent interfacing and wet-out characteristics, even to surfaces with high roughness or uneven topography. TIF540-40-11US features an inherent tack on both sides of the material, eliminating the need for thermally impeding adhesive layers.Options and ConfigurationsStandard sheet size - 8" x 16" or custom configurationStandard thickness available - 0.020", 0.040", 0.060", 0.080", 0.100", 0.125", 0.160", 0.200", 0.250"Custom made configurations available upon request

TIF500-40-11US Datasheet-REV02.pdf

Features:
> Good thermal conductive: 4.0 W/mK
>Thickness:1.0mmT
>hardnesses :20 (Shore 00)
>Moldability for complex parts
>Outstanding thermal performance

Applications:
>Automotive engine control units
>Telecommunication hardware
>Handheld portable electronics
>Semiconductor automated test equipment (ATE)
>CPU
>display card
>mainboard/mother board
>notebook
>power supply
>Heat pipe thermal solutions

Typical Properties of TIF540-40-11US Series
Color

gray

 Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
 *** 10mils / 0.254 mm

0.55
20mils / 0.508 mm

0.82
Specific Gravity

3.1 g/cc

 ASTM D297

30mils / 0.762 mm

1.01

40mils / 1.016 mm

1.11
Thickness

1.0mmT

 ***

50mils / 1.270 mm

1.27

60mils / 1.524 mm

1.45
Hardness
 20 (Shore 00) ASTM 2240

70mils / 1.778 mm

1.61

80mils / 2.032 mm

1.77

Tensile Strength

40 psi

 ASTM D412

90mils / 2.286 mm

1.91

100mils / 2.540 mm

2.05
Continuos Use Temp
 -40 to 160℃

***

110mils / 2.794 mm

2.16

120mils / 3.048 mm

2.29

Dielectric Breakdown Voltage
 >5500 VAC ASTM D149

130mils / 3.302mm

2.44

140mils / 3.556 mm

2.56
Dielectric Constant
 4.0 MHz ASTM D150

150mils / 3.810 mm

2.67

160mils / 4.064 mm

2.77
Volume Resistivity
 6.0X1013
Ohm-meter		 ASTM D257

170mils / 4.318 mm

2.89

180mils / 4.572 mm

2.98
Fire rating
 94 V0

equivalent UL

190mils / 4.826 mm

3.05

200mils / 5.080 mm

3.14
Thermal conductivity
4.0 W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Large Tolerance Stack Ups Thermal Conductive Gap Pad 20 Shore 00 For Routers 4.0W

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
