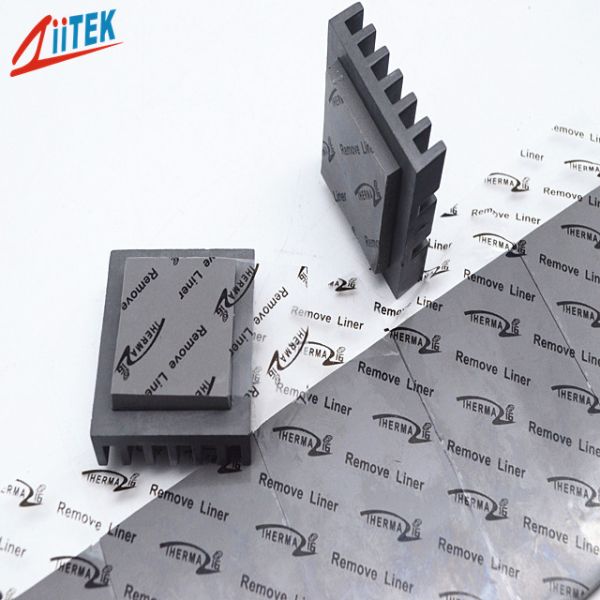

Gray Ultra Soft Heat Sink Pad For LED Ceilinglamp Electrically Isolating
Gray Ultra Soft Heat Sink Pad For LED Ceilinglamp Electrically Isolating
Gray Ultra Soft Heat Sink Pad For LED Ceilinglamp Electrically Isolating
Gray Ultra Soft Heat Sink Pad For LED Ceilinglamp Electrically Isolating
Gray Ultra Soft Heat Sink Pad For LED Ceilinglamp Electrically Isolating
Gray Ultra Soft Heat Sink Pad For LED Ceilinglamp Electrically Isolating
Specifications
Brand Name :
ZIITEK
Model Number :
TIF1140-30-11ES
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
1000pcs/bag
Heat Capacity :
1 l/g-K
Thermal conductivity :
3.0 W/m-K
Hardness :
12 Shore 00
Density :
2.9 g/cc
Continuos Use Temp :
-40 to 160℃
Flame rating :
94 V0
Description

The gray ultra soft heat sink pad for LED Ceilinglamp,Electrically isolating:dielectric Breakdown Voltage over 5500

The TIF1140-30-11ES is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. TIF1140-30-11ES is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

TIF100-30-11ES-Datasheet-REV02.pdf


Features

> Good thermal conductive: 3.0 W/mK

>Thickness:3.5mmT

>hardness:12 shore00

>Colour: gray

>Soft and compressible for low stress applications

>Naturally tacky needing no further adhesive coating


Applications

>LED Ceilinglamp

>Monitoring the Power Box

>AD-DC Power Adapters

>Semiconductor automated test equipment (ATE)

>CPU

>display card

Typical Properties of TIF1140-30-11ES Series
Color
gray
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity
2.9g/cc
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness
3.5mmT
***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness
12 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Outgassing(TML)
0.35%
ASTM E595
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
>5500 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant
2.9 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
1.0X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
3.0 W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Gray Ultra Soft Heat Sink Pad For LED Ceilinglamp Electrically Isolating

Advantage

Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.
