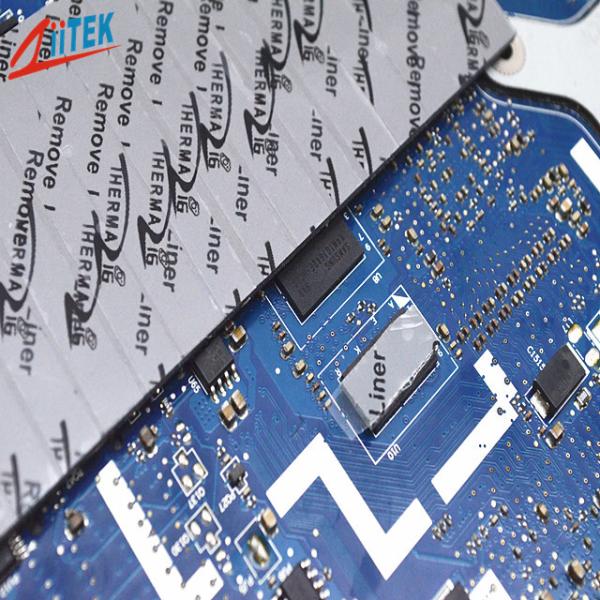

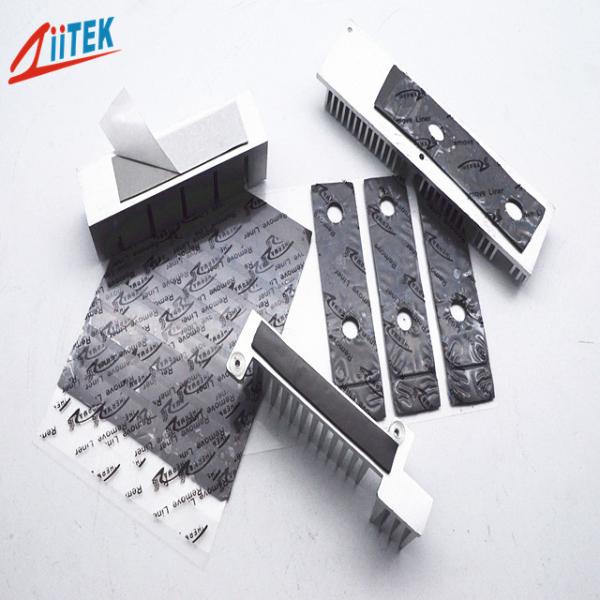

4w/MK Thermal Conductive Gap Pad UL 94-V0 For Automotive Engine Control Units
4w/MK Thermal Conductive Gap Pad UL 94-V0 For Automotive Engine Control Units
4w/MK Thermal Conductive Gap Pad UL 94-V0 For Automotive Engine Control Units
4w/MK Thermal Conductive Gap Pad UL 94-V0 For Automotive Engine Control Units
4w/MK Thermal Conductive Gap Pad UL 94-V0 For Automotive Engine Control Units
4w/MK Thermal Conductive Gap Pad UL 94-V0 For Automotive Engine Control Units
Specifications
Brand Name :
ZIITEK
Model Number :
TIF5160-40-11US
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Hardness :
20 Shore 00
Specific Gravity :
3.1 g/cc
Dielectric Breakdown Voltage :
>5500 VAC
Fire rating :
94-V0
Construction & Compostion :
Ceramic filled silicone rubber
Tensile Strength :
40 psi
Description

high cost-effective thermal conductive gap pad 4w/mK, Fire rating:UL 94-V0 for automotive engine control units

The TIF5160-40-11US is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

TIF500-40-11US Datasheet-REV02.pdf

Features:
> Good thermal conductive: 4.0 W/mK
>Thickness:4.0mmT
>hardnesses :20 (Shore 00)

>Fiberglass reinforced for puncture, shear and tear resistance

>Easy release construction

>Electrically isolating


Applications:

>Automotive engine control units

>Telecommunication hardware

>Handheld portable electronics

>GPS navigation and other portable devices

>CD-Rom, DVD-Rom cooling

>LED Power Supply

>LED Controller

Typical Properties of TIF5160-40-11US Series
Color

gray

 Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
 *** 10mils / 0.254 mm

0.55
20mils / 0.508 mm

0.82
Specific Gravity

3.1 g/cc

 ASTM D297

30mils / 0.762 mm

1.01

40mils / 1.016 mm

1.11
Thickness

4.0mmT

 ***

50mils / 1.270 mm

1.27

60mils / 1.524 mm

1.45
Hardness
 20 (Shore 00) ASTM 2240

70mils / 1.778 mm

1.61

80mils / 2.032 mm

1.77

Tensile Strength

40 psi

 ASTM D412

90mils / 2.286 mm

1.91

100mils / 2.540 mm

2.05
Continuos Use Temp
 -40 to 160℃

***

110mils / 2.794 mm

2.16

120mils / 3.048 mm

2.29

Dielectric Breakdown Voltage
 >5500 VAC ASTM D149

130mils / 3.302mm

2.44

140mils / 3.556 mm

2.56
Dielectric Constant
 4.0 MHz ASTM D150

150mils / 3.810 mm

2.67

160mils / 4.064 mm

2.77
Volume Resistivity
 6.0X1013
Ohm-meter		 ASTM D257

170mils / 4.318 mm

2.89

180mils / 4.572 mm

2.98
Fire rating
 94 V0

equivalent UL

190mils / 4.826 mm

3.05

200mils / 5.080 mm

3.14
Thermal conductivity
4.0 W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

TIF™ series Individual die cut shapes can be supplied.

4w/MK Thermal Conductive Gap Pad UL 94-V0 For Automotive Engine Control Units

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

FAQ:

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: What is your terms of payment ?

A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.
