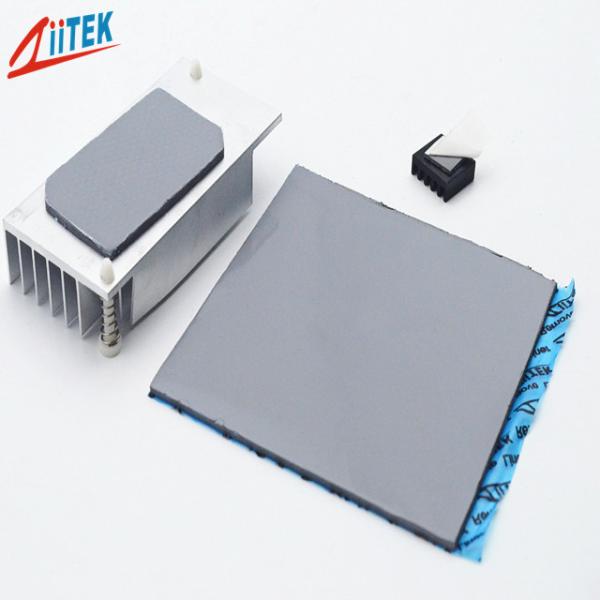

5.0mmT Outstanding Thermal Performance Silicone Pads For Audio And Video Component
5.0mmT Outstanding Thermal Performance Silicone Pads For Audio And Video Component
5.0mmT Outstanding Thermal Performance Silicone Pads For Audio And Video Component
5.0mmT Outstanding Thermal Performance Silicone Pads For Audio And Video Component
Specifications
Brand Name :
ZIITEK
Model Number :
TIF1200N-50-10F thermal pad
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
1000pcs/bag
keyword :
thermal gap pad
Color :
Gray
Applications :
Automotive electronics
hardness :
55±5 shore 00
name :
5.0mmT Outstanding Thermal Performance Silicone Pads for Audio and Video Component
part number :
TIF1200N-50-10F
Description

5.0mmT Outstanding Thermal Performance Silicone Pads for Audio and Video Component

The TIF1200N-50-10F is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

TIF100N-40-10F-Specification-sheet.pdf

Features

> Good thermal conductive: 5.0 W/mK

> Thickness: 5.0mmT

> hardness:55±5 shore 00

> Colour: Gray

> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant

Applications

> Automotive electronics

> Set top boxes

> Audio and video component

> IT infrastructure

> GPS navigation and other portable devices

> CD-Rom, DVD-Rom cooling

Typical Properties of TIF1200N-50-10F Series
Color
 Gray
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity

2.1 g/cm3

ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness
5.0mmT
***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness

55±5 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Thermal conductivity
5.0W/mk
ISO22007-2.2
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
>5500 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant

4.7 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
1.0X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity

5.0 W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470

Company Profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

5.0mmT Outstanding Thermal Performance Silicone Pads For Audio And Video Component

FAQ:

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
