94-V0 Rated Thermal Gap Filler for Effective Heat Transfer in Electrical Applications
94-V0 Rated Thermal Gap Filler for Effective Heat Transfer in Electrical Applications
94-V0 Rated Thermal Gap Filler for Effective Heat Transfer in Electrical Applications
94-V0 Rated Thermal Gap Filler for Effective Heat Transfer in Electrical Applications
Specifications
Brand Name :
Ziitek
Model Number :
TIS109-05
Certification :
RoHs and UL
Place of Origin :
China
MOQ :
1000PCS
Supply Ability :
100000PCS/Day
Delivery Time :
2-3Word days
Packaging Details :
1000pcs/bag
Products name :
Heat Thermal Insulation Materials Thermal Gap Filler Cooling Electrical Heat Transfer Thermal Insulation Sheet
Color :
Blue
Dielectric Constant :
5.5 MHz
Specific Gravity :
1.72g/cc
Continuos Use Temp :
-45 to 180℃
Hardness :
50 Shore 00
Fire rating :
94-V0
Thermal conductivity :
1.0W/mK
Description

Heat Thermal Insulation Materials Thermal Gap Filler Cooling Electrical Heat Transfer Thermal Insulation Sheet

The TIS™109-05 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

TIS100-05 Series Datasheet-(E)-REV01.pdf

94-V0 Rated Thermal Gap Filler for Effective Heat Transfer in Electrical Applications
Features


> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and high dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures


Applications


> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components

Typical Properties of TIS100-05 series
Product Name TIS109-05 TIS112-05 TIS118-05 Test Method
Color blue Visual
Construction &Compostion Ceramic filled silicone elastomer / Fiberglass *******
Composite Thickness 0.23mm 0.3mm 0.45mm ASTM D374
Hardness 50 Shore 00 ASTM D751
Specific Gravity 1.72g/cc ASTM D297
Tensile Strength 425 Kpsi ASTM D412
Continuous Use Temp -45 to 180℃ *******
Dielectric Breakdown Voltage >3500 VAC ASTM D149
Dielectric Constant 5.5 MHz ASTM D150
Volume Resistivity 4.0X10¹³ Ohm-meter ASTM D257
Flame Rating 94 V0 E331100
Thermal conductivity 1.0 W/mK ASTM D5470

Standard Thicknesses:
0.o09"(0.228mm),0.012"(0.304mm),0.018"(0.457mm)

Consult the factory alternate thickness.


Peressure Sensitive Adhesive:

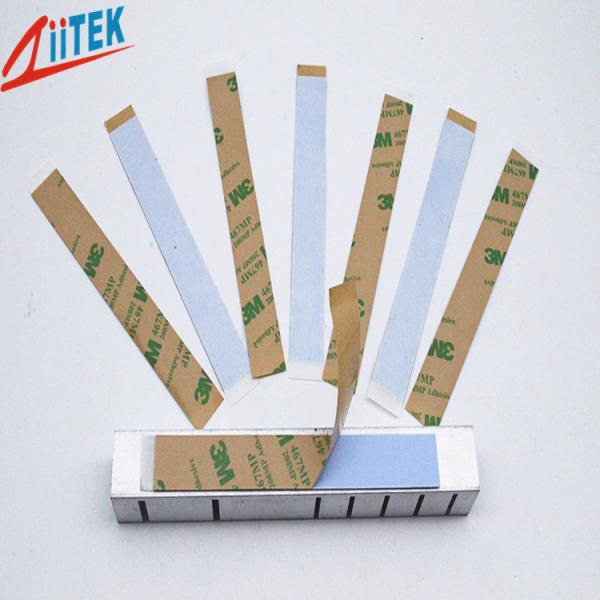

Request adhesive on one side with "A1" suffix.

Request adhesive on doule side with "A2" suffix.

Standard Sizes:
12" x 160(304mm x 48.76M)
lndividual die cut shapes can be supplied.

94-V0 Rated Thermal Gap Filler for Effective Heat Transfer in Electrical Applications
