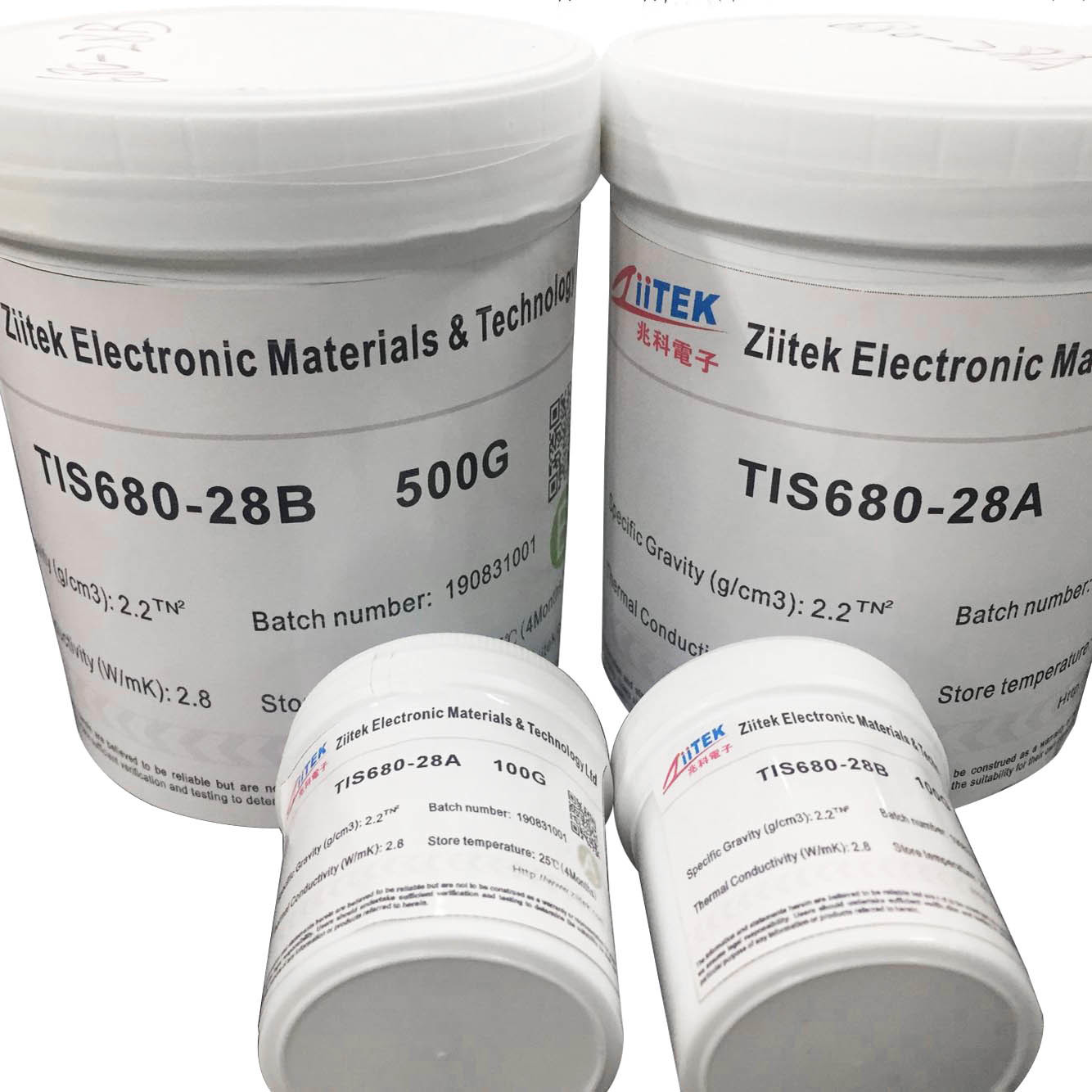

Two Parts Used for LED Panel Light Potting 2.8W/m-K Thermal Conductive Adhesive Potting
Two Parts Used for LED Panel Light Potting 2.8W/m-K Thermal Conductive Adhesive Potting
Two Parts Used for LED Panel Light Potting 2.8W/m-K Thermal Conductive Adhesive Potting
Two Parts Used for LED Panel Light Potting 2.8W/m-K Thermal Conductive Adhesive Potting
Specifications
Brand Name :
Ziitek
Model Number :
TIS™680-28AB
Certification :
RoHs
Place of Origin :
China
MOQ :
1KG/PC
Supply Ability :
100KG
Delivery Time :
2-3 work day
Packaging Details :
1kg/can
Name :
Two Parts Used for LED Panel Light Potting 2.8W/m-K Thermal Conductive Adhesive Potting
Thermal Conductivity :
2.8W/m-K
Specific Gravity@25℃ :
2.2 g/cc
Viscosity @25℃ Brookfieldl @25°C :
6000 mPa.s
Packing :
1kg/can
Components :
Two Component
Keywords :
Thermal Conductive Potting
Description

Two Parts Used for LED Panel Light Potting 2.8W/m-K Thermal Conductive Adhesive Potting

Product Summary:

TIS™ 680-28AB Series is a two-component, high thermal conductive, low temperature cured, long pot life, fire resistant Silica encapsulant glue. lt is design for potting of capacitors and electrical devices.Their flexibility and elasticity make them suited to the coating of the very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components .

Two Parts Used for LED Panel Light Potting 2.8W/m-K Thermal Conductive Adhesive Potting

Features

> Good thermal conductive: 2.8W/mK

> Excellent insulation and smoothly sourface.

> Low shrinkage

> Low viscosity, expediting air releaseed.

> Excellent in solvents and water proof.

> Longer life time.

> Excellent thermal shock efficiecy and impact resistance

Application

> To potting LED Lighting heat spreaderand power- driver.
> Ferrite cements; tip type LED; goodcementation to aromatic polyester

> Relay sealant; Good adhesion torubber, ceramics, PCB and plastics

> Power transformers and coils; Potting capacitors; Potting of small electrical devices
> Adhesion to metal glass and plastic;LCD &substrates adhesion; Coatingand sealant; Coil ; IGBTS;
> Transformer; Fire retardant
> Optical / medical component adhesive

Typical Properties of TIS™ 680-28AB Series
Typical Uncured Material
TISTM680-28A(Resin) Mixing ratio (weight ratio)
Color white A:B=1 :1
Viscosity @25℃ Brookfield 6000 mPa.s Viscosity @25℃ Brookfield 6000 mPa.s
specific Gravity 2.2g/cc³ specific Gravity 2.2g/cc³
Shelf life @25℃ in sealed container 6 months Working pot life(250g @25℃) 30 mins
TISTM680-28B(Hardener) Cure Schedule
Color White Cure at 25C 3 hrs
Viscosity @25℃ Brookfield 6000 cPs
Shelf life @25℃ in sealed container 6 months Cure at 7o°c 20 mins
Cured Properties
Hardness (Shore A)@25℃ 65 Shore A
Operating temperature -40℃ ~160℃
Glass transition temperature Tg 92℃
Elongation 4.00%
Coefficient of thermal expansion, /℃ 5.0x 10^(-5)
Fire resistance uL 94 V-0
Moisture absorption % wt gain 24 hours water immersion @25℃ < 0.1
Thermal Conductivity 2.8W/m-K
Thermal Impedance @10psi 0.28℃*in²/W
Dielectric Breakdown Voltage 400 volts / mil
Dielectric Constant@1MHz 4.2
volume resistivity, ohm-cm @ 25℃ 3.0x 10^13

Packing detais:

1KG A/B for each tank.

5KG A/B each.

10KG A/B each.

Company profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Two Parts Used for LED Panel Light Potting 2.8W/m-K Thermal Conductive Adhesive Potting

Our services

Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
