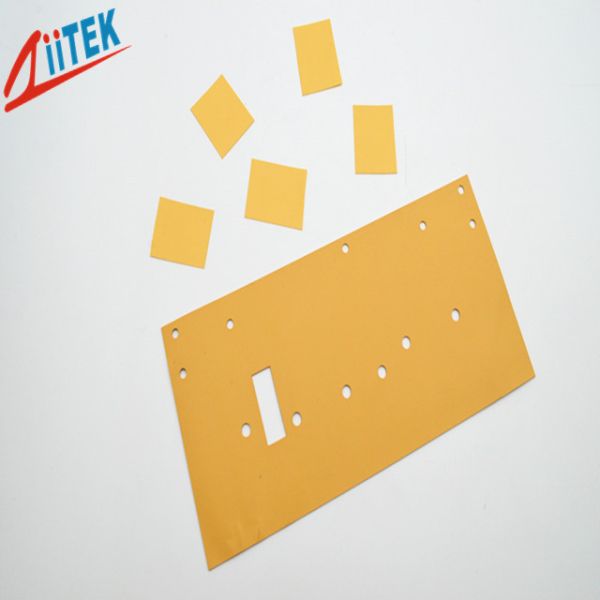

High Voltage Silicone Thermal Insulation Sheet Materials for CPU GPU Gap Filling
High Voltage Silicone Thermal Insulation Sheet Materials for CPU GPU Gap Filling
High Voltage Silicone Thermal Insulation Sheet Materials for CPU GPU Gap Filling
High Voltage Silicone Thermal Insulation Sheet Materials for CPU GPU Gap Filling
Specifications
Brand Name :
Ziitek
Model Number :
TIS100-03 Series
Certification :
RoHs and UL
Place of Origin :
China
MOQ :
1000PCS
Supply Ability :
100000PCS/Day
Delivery Time :
2-3Word days
Packaging Details :
1000pcs/bag
Color :
Yellow
Construction & Compostion :
Ceramic Filled Silicone Elastomer / Fiberglass
Specific Gravity :
1.768 g/cc
Continuos Use Temp :
-45 to 180℃
Keywords :
Thermal Insulation Sheet
Fire rating :
94-V0
Description

High Voltage Silicone Thermal Insulation Sheet Materials for CPU GPU Gap Filling

The TIS™100-02 products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

TIS100-03-Series-Datasheet (1).pdf

High Voltage Silicone Thermal Insulation Sheet Materials for CPU GPU Gap Filling


Features


> Soft and High thermal conductive
> High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures


Applications


> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface

Typical Properties TIFTM100-03 Series
Color Yellow Visual
Construction & Composition Ceramic filled silicone elastomer / Fiberglass ******
Thickness range 0.15mm-0.5mm ASTM D374
Hardness 50 Shore 00 ASTM D2240
Specific Gravity 1.768 g/cc ASTM D297
Tensile Strength 425 Kpsi ASTM D412
Continuous Use Temperature -45~180℃ ******
Dielectric breakdown voltage ＞3500VAC ASTM D149
Dielectric Constant@1MHz 5.5 ASTM D150
Volume Resistivity ＞4*10
13 Ohm-cm		 ASTM D257
Thermal Conductivity 1.0W/mk ASTM D5470
Flame Rating 94 V0 UL E331100

Product Specification

Product Thicknesses

TIS 106-03 : 0.15mm

TIS 108-03 : 0.20mm

TIS 109-03 : 0.23mm

TIS 112-03 : 0.30mm

TIS 120-03 : 0.50mm

Product Sizes
12" x 160"(304mm x 48.76M)
lndividual die cut shapes and custom thickness can be supplied.

Please contact us for confirming.

The product come standard with fiberglass reinforcement designated by the suffix " FG".

High Voltage Silicone Thermal Insulation Sheet Materials for CPU GPU Gap Filling

Company proffile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
