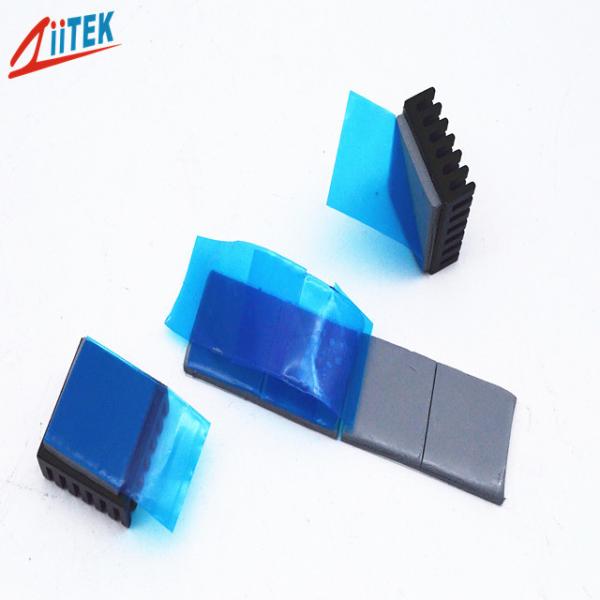

Highly Efficient Thermal Conductivity 8.0 W/MK Heat Resistant Silicone Thermal Pads
Highly Efficient Thermal Conductivity 8.0 W/MK Heat Resistant Silicone Thermal Pads
Highly Efficient Thermal Conductivity 8.0 W/MK Heat Resistant Silicone Thermal Pads
Highly Efficient Thermal Conductivity 8.0 W/MK Heat Resistant Silicone Thermal Pads
Specifications
Brand Name :
ZIITEK
Model Number :
TIF7100QE
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Products name :
Highly Efficient Thermal Conductivity 8.0 W/MK Heat Resistant Silicone Thermal Pads
Thermal conductivity& Compostion :
8.0 W/m-K
Specific Gravity :
3.5g/cc
Thickness :
2.5mmT
Color :
Gray
Continuos Use Temp :
-45℃ to 200℃
Hardness :
35±10 Shore 00
Construction :
Ceramic filled silicone elastomer
Keywords :
Thermal Conductive Pad
Description

Highly Efficient Thermal Conductivity 8.0 W/MK Heat Resistant Silicone Thermal Pads

The TIF7100QE is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.


Features:


> Good thermal conductive:8.0W/MK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance


Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Typical Properties of TIF7100QE Series
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Specific Gravity 3.5g/cc ASTM D297
thickness 2.5mmT ASTM D374
Hardness 35±10 (Shore 00) ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant 5.5MHz ASTM D150
Volume Resistivity 1.0X10¹²Ohm-meter ASTM D257
Fire rating 94 V0 equivalent UL
Thermal conductivity 8.0W/m-K ASTM D5470

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.


Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Highly Efficient Thermal Conductivity 8.0 W/MK Heat Resistant Silicone Thermal Pads

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract
