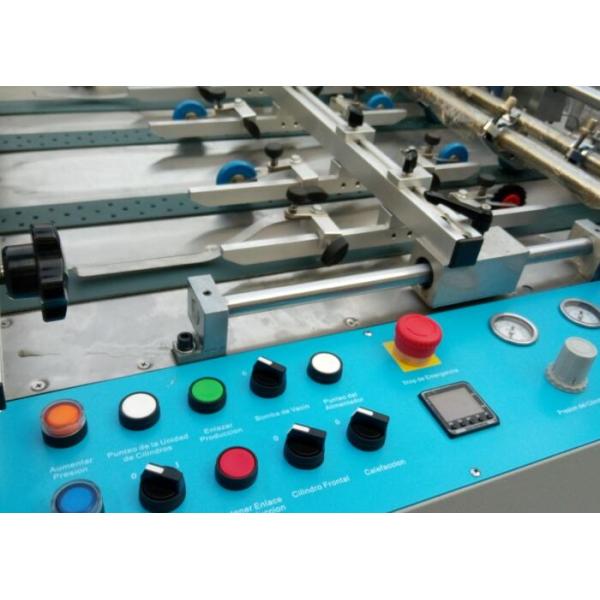

Industrial Paper Lamination Machine Servo Control 560*820mm smooth operation
Industrial Paper Lamination Machine Servo Control 560*820mm smooth operation
Industrial Paper Lamination Machine Servo Control 560*820mm smooth operation
Industrial Paper Lamination Machine Servo Control 560*820mm smooth operation
Specifications
Brand Name :
GUANGMING
Model Number :
SW-560
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negoitable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50 SETS PER MONTH
Delivery Time :
5-35 DAYS
Packaging Details :
FUMIGATION WOODEN CASE
Max Paper Size :
560x820 mm
Paper GSM :
90-600g/m2
AUTOMATION :
FUull aumotic
LANGUAGE :
English
Film Type :
BOPP
Voltage :
380V/220V
Frequency :
50HZ
Description

Max size 560x820 mm Paper Lamination Machine for Printing Post-processing Industry

Side register system: servo control, synchronous running with feeder, precisely controlled by mechanical cam, ensure paper sides in good order.

Applications

It suits one side for pre-glued film. It is widely used for magazines,paper,books,

and packs for food, medicine, cosmetics and so on.

This machine centralizes the features of high automation, high precision of lamination, humanized configuration and easy operation, and is the best choice with high cost performance for large and medium-size enterprises.

Configuration

Item Configuration Brand Supplier
1 Touch Screen DELTA
2

Relay

OMRON
3 Inverter DELTA
4 Photoelectric Switch Panasonic
5 Servo Drive DELTA
6 PLC DELTA
7 Servo Motor DELTA
8 Servo Gear Reducer DELTA

Industrial Paper Lamination Machine Servo Control 560*820mm smooth operation

Technical Parameters

Model SW-560
Max paper width 560*820mm
Min paper size : 210*300mm
Paper thickness 100-500g/m2
Max Laminating Speed 0-60m/min
Laminating Temperature 80-110c
Gross Power 20 kw
Total Weight 2600kg
Overall Dimension 4600*1350*1600mm

Industrial Paper Lamination Machine Servo Control 560*820mm smooth operation

Tips to place order on us.

Step one,to confirm the suitable models with our sales,such as max paper size,paper thickness,process capacity,film types and etc..

Step two,to confirm the price,price terms,delivery time,destination port and etc..

Step three,sign the proforma invoice and make 30% deposit to produce the machine.

Step four,when the machine is ready to deliver,make the 70% balance payment to deliver the machine.

Step five,to confirm shipment by sea,by train or by air,then decide to ship in one full container or LCL.After loading,confirm bill of lading and other documents such as invoice,packing list and etc..

Step six,when the machine arrive your side,install the machine yourself with our technical support or ask our technician to install the machine(only for fully automatic machine),the buyer need to arrange the route tickets,accommodation,transportation and etc..

Dimension of wooden case for SW-560 :

Model Name Dimension CBM Net Weight(kgs) Gross Weight(kgs)
SW-560 Machine 4020*1600*1900mm 12.2 2423 2720
Stacker 1390*1120*1450mm 2.26 273 360
Compressor 1300*530*1020mm 0.7 120 150

Package:
