Flooring Underlay Acoustic Crosslink Pe Foam , Building Insulation Foam Soundproof
Flooring Underlay Acoustic Crosslink Pe Foam , Building Insulation Foam Soundproof
Flooring Underlay Acoustic Crosslink Pe Foam , Building Insulation Foam Soundproof
Flooring Underlay Acoustic Crosslink Pe Foam , Building Insulation Foam Soundproof
Flooring Underlay Acoustic Crosslink Pe Foam , Building Insulation Foam Soundproof
Flooring Underlay Acoustic Crosslink Pe Foam , Building Insulation Foam Soundproof
Specifications
Brand Name :
CYG
Model Number :
CYG-2572
Certification :
ISO9001,REACH,ROSH,SGS,IATF16949,CE
Place of Origin :
China
MOQ :
3000 Square Meter/Square
Price :
$0.27 - $8.28 / Square Meters
Payment Terms :
L/C, D/P, T/T, D/A, , Western Union, MoneyGram
Supply Ability :
500 tons per month
Delivery Time :
16-25 Work days
Packaging Details :
Wrapped foam sheet inside and polybag outside
Thickness :
1~50 mm
Size :
as request
Type :
Other Waterproofing Materials
Density :
25-330KG/M3
Function :
underlayment roll flooring
Width :
1.2-1.8 M
Application :
flooring
Feature :
waterproof acoustic foam
Name :
Insulation materials for building
Description

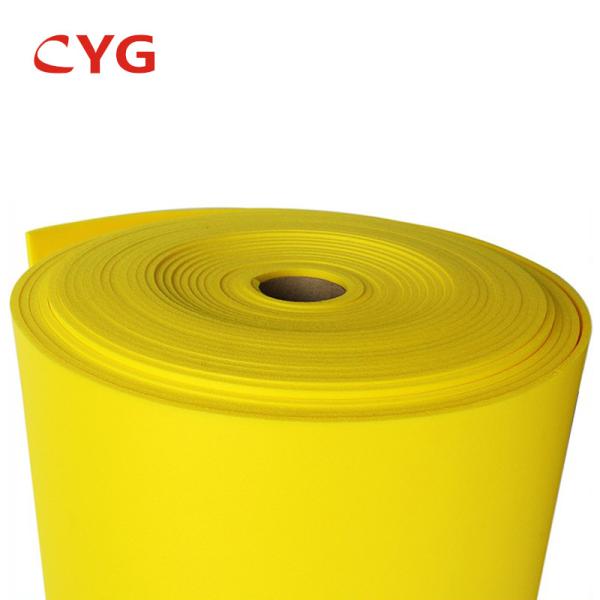

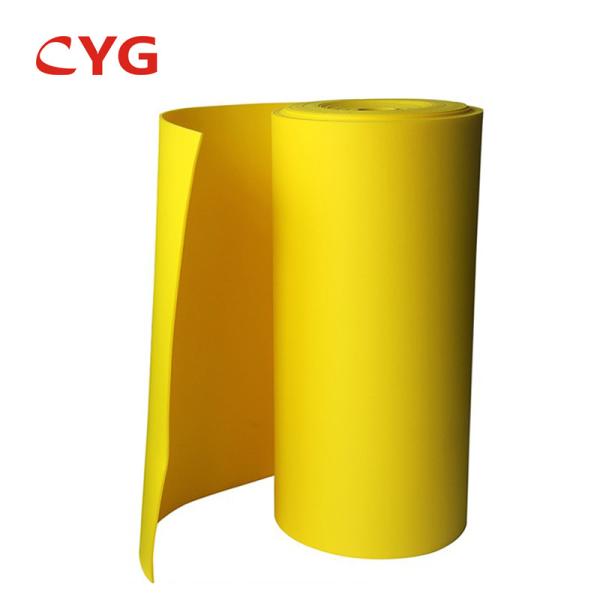

Flooring Underlay Soundproof Acoustic Crosslink Pe Foam

Specifications

  • Foam Type: IXPE FOAM / IXLPE FOAM
Property Standard Unit Value
Density - Kg/m³ 66.70
Tensile Strength Transverse ISO-1798 MPa 0.57~0.60
Longitudinal 0.68~0.70
Elongation Transverse ISO-1798 % 246.20~255.30
Longitudinal 218.40~243.20
Tearing Strength Transverse

ISO-8067

 Kn/m 2.90~3.06
Longitudinal 3.77~4.03
Operating Temperature Range Internal °C (-40,+80)
Water Absorption % Volume (Maximum) Internal % 0.30
Thermal Conductivity JIS A1412-2 W/mK 0.065
Shore - C ASTM D2240 °C 32
Flammability FMVSS302 mm/min -

Advantages

  • With a single material, sound and heat insulation is provided between the floors (vertical and horizontal).
  • It provides resistance against shocks, it does not cave-in.
  • Thanks to its elasticity and weight, it is applied to easy and fast.
  • It preserves persistence and features along life of structure.
  • It is environmentally-friendly, HCFC-free.
  • It is anti-bacterial.
  • It can be produced with flame-proof feature.

Features

  • Ideal for wood floors of all kinds, provides moisture protection and sound-dampening, great in both commercial and residential settings.
  • Insulates chilly subfloors, sound-dampening, meets building standards, durable compressive strength.
  • Reflective foil bottom layer reflects heat back into the room in winter.
  • Low density foam for superior cushioning and wear resistance.

About us

CYG TEFA Co., Ltd, a national high-tech company, established in December of 2002. Now we have 2 production bases in Shenzhen, Hangzhou, Chongqing, 8 production lines of all kinds, with annual production capacity of 6000 tons;
We are the leading manufacturer for XPE , IXPE foam,ESD foam for more than 17 years, all our products can be used for thermal insulation,waterproof,shockproof,etc. and also our products get the UL, ISO, SGS, Rohs, Reach , CE approval. and we have 17 production lines for production.Hope to cooperate with you.

  • Management control system: Kingdee / OA / Oracle

  • On-going project

IXPP project (three years: Proposal stage - Develop - Sampling - Approved product- Small quantity supply for testing

  • R & D team

11 employee
Investment rate: 4% to 10%
Responsible for : Improving available product / Technology improving / New product development / New devices
