Specifications
Brand Name :
CYG
Model Number :
XPE
Certification :
RoHs, RE,REACH,UL.ISO14001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
500 tons per month
Delivery Time :
15-20 days
Packaging Details :
PE Bag
Thickness :
0.5-100mm
Type :
Physical crosslinked and chemical crosslinked
Fire retardant :
BS 476 ,UL,ASTM
Length :
100m, customized
Application :
for hot and chilled water supply
Width :
1m/1.2m/1.4m/1.5m
Description

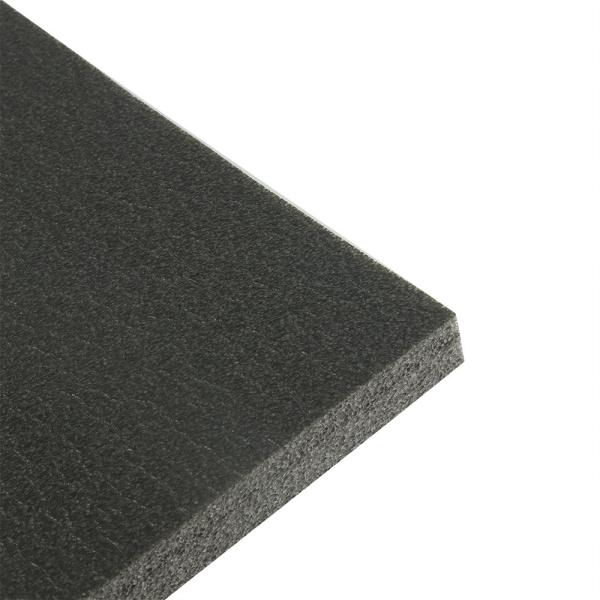

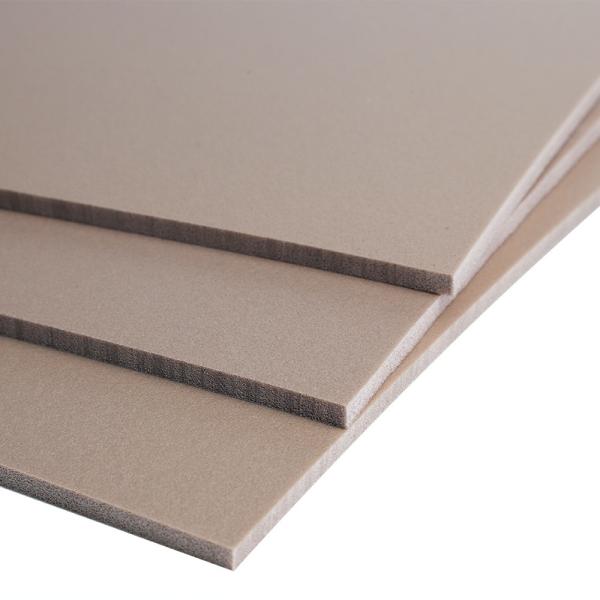

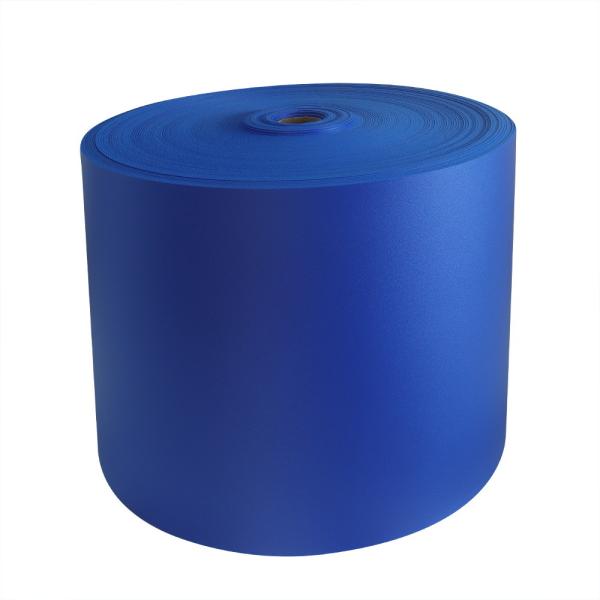

Laminated Closed Cell Sheet Polyethylene Foam Air Conditioner Insulation Foam

Polyethylene foam is a strong, resilient closed-cell foam. Ideally suited as the material or part of a material required in products requiring a shock absorbing, vibration dampening, insulation, barrier or buoyancy component, and as a material for cushioning products in packaging applications. Polyethylene foam's excellent buoyancy allows it to be used in flotation equipment, and other nautical products.


Feature


· Light weight, good elasticity
· Incumbustible and waterproof
· Flame retardant
· Water absorption, Sound absorption
· Heat isolation
· Elastic and flexibility
· Anti-skidding, shock absorption and cold pressure.

Specifications

Density 200 ± 30 125 ± 15 100 ± 10 66.7 ± 8 50 ± 6 40 ± 4 33.3 ± 3
Hardness 60-70 50-60 45-50 35-45 30-35 2-30 18-25
Water absorption
(23 ° C 24h)g/ cm ³
≤ 0.02 ≤ 0.02 ≤ 0.03 ≤ 0.03 ≤ 0.04 ≤ 0.04 ≤ 0.05
Thermal conductivity ≤ 0.092 ≤ 0.082 ≤ 0.07 ≤ 0.062 ≤ 0.053 ≤ 0.047 ≤ 0.041
Tensile strength(mpa) L ≥ 1.35 ≥ 1.12 ≥ 0.88 ≥ 0.68 ≥ 0.39 ≥ 0.33 ≥ 0.25
M ≥ 1.08 ≥ 0.89 ≥ 0.71 ≥ 0.56 ≥ 0.33 ≥ 0.25 ≥ 0.20
Tesibility L ≥ 260 ≥ 230 ≥ 210 ≥ 190 ≥ 170 ≥ 160 ≥ 140
M ≥ 220 ≥ 200 ≥ 185 ≥ 170 ≥ 150 ≥ 135 ≥ 130
Tearing strength L ≥ 5.90 ≥ 4.80 ≥ 3.60 ≥ 2.80 ≥ 1.80 ≥ 1.60 ≥ 1.35
M ≥ 7.10 ≥ 5.40 ≥ 4.00 ≥ 3.30 ≥ 2.30 ≥ 2.00 ≥ 1.70

Property


1. It has no nocuous substance and accord with the standards of ISO9001: 2008, ISO14001: 2004. It also does not generate any pollutant bringing harm to peoples health when being installed and in use.
2. It is a high quality material for warm-keeping and energy-saving, which is the killer of dew forming and the transmission of cold and heat. It insulates any heat media with a stable and low thermal conductivity.
3. Its light in weight. It could absorb sound, reduce noise, and provide cushioning function.
4. Its water and leak proof, anti-flaming, easy to be processed and installed.
5. Its durable in use and endurable to heat, cold and chemical reaction

Advantages


1. Heat Insulation:
Single-foaming structure can reduce the loss of heat between air convections, suitable for making heat preservation pipes and boards. Good anti-dew capability, suitable for humid environments like refrigerators, air-conditioners and ice houses, etc.
2. Cushion Capability:
Semi-hard quality foams have good rebound capabilities after strong impact, suitable for the packing of instruments, semi-conductors and electronics, etc.
3. Sound Absorption:
Good sound and noise absorption capability, suitable for sound absorption and insulation parts of automobiles, electro-motors and other equipment and environments with loud noises.
4. Shaping Capability:
Good heat endurance and ductility capability with even density, suitable for making deep interior parts like shaping in vacuum and hot environments, like the air conditioning vaporizing tank of automobiles, hot-shaped peak canopy of vehicles and shoes, etc.
5. Good chemical, oil, acid and alkali durability capabilities.
It is safe and odorless, easy for machining and casting, and can be mixed with many other materials. It has a wide developing area as a new environmentally-safe material.

Our services


Factory direct selling with lower price, sooner leadtime, better customized services.
Samples in stock can be arranged in one working day.

Company info


CYG TEFA Co., Ltd has 16 years of production experience. We're the biggest and the most professional irradiation crosslinked polyethylene conductive foam manufacturer in China and has the most complete crosslinked polyethylene foam products. Our main products are Crosslinked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc. Now, we have 2 factories and 17 production lines...
