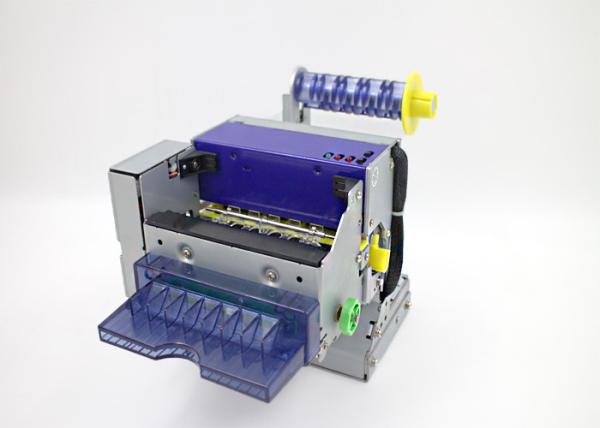

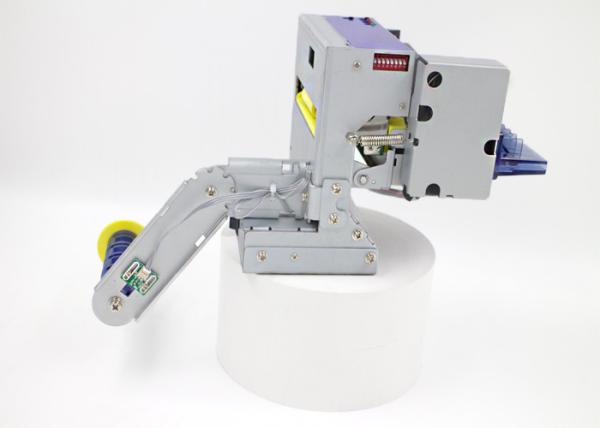

All In One Structure Kiosk Thermal Printer , Self Service Kiosk Receipt Printer
All In One Structure Kiosk Thermal Printer , Self Service Kiosk Receipt Printer
All In One Structure Kiosk Thermal Printer , Self Service Kiosk Receipt Printer
All In One Structure Kiosk Thermal Printer , Self Service Kiosk Receipt Printer
All In One Structure Kiosk Thermal Printer , Self Service Kiosk Receipt Printer
All In One Structure Kiosk Thermal Printer , Self Service Kiosk Receipt Printer
All In One Structure Kiosk Thermal Printer , Self Service Kiosk Receipt Printer
All In One Structure Kiosk Thermal Printer , Self Service Kiosk Receipt Printer
All In One Structure Kiosk Thermal Printer , Self Service Kiosk Receipt Printer
All In One Structure Kiosk Thermal Printer , Self Service Kiosk Receipt Printer
Specifications
Brand Name :
MASUNG
Model Number :
EP800-TMP
Certification :
CE; ROSH
Place of Origin :
China
MOQ :
1
Price :
USD 220~300/piece
Payment Terms :
T/T/Paypal/Western union
Supply Ability :
3,500 units/monthly
Delivery Time :
5~8 days
Packaging Details :
Carton
Mechanism: :
CAPD347
Printing method :
Thermal dot line printing
Dots/line :
576 dots/line
Paper width :
80 mm
Printing width :
72 mm
Paper thickness :
54~78 um
Printing speed :
200 mm/s
Cutting type :
Full/partial ( by adjustable)
Dimension (L*W*H) :
227.5*127.8*131.45 mm
Weight :
Approx 1.92 kg
nterface :
RS-232 /USB/Parallel
Driver :
Parallel/USB driver
Type :
thermal printer
Firmware location :
512KB Flash memory
System :
Windows/Android/Linux OS
Description

All In One Structure Kiosk Thermal Printer , Self Service Kiosk Receipt Printer

Quick details:

► Brand name printer mechanism

► Brand name paper presenter

► Print label sticker kiosk thermal printer

► Original printer mechanism CAPD347

► Multiple barcodes support

► With LED indication design

► Cost-effective print machine

► With high quality

►Free SDK Provided

Specification:

Mechanism:

CAPD347

Printing method

Thermal dot line printing

Dots/line

576 dots/line

Dot pitch

8 dot/mm

Paper width

80 mm

Printing width

72 mm

Roll diameter

Max 90 mm ( external roll support)

Paper thickness

54~78 um

Printing speed

200 mm/s

Paper feed direction

180° horizontal

Sensors

Head temperature

Thermistor

Paper press shaft

Mechanical switch

Paper end

Photo interrupter

Cutting type

Full/partial ( by adjustable)

Font size

ASCII:9*17;12*24;

Chinese: 24*24

Power supply

Logic circuit

4.75~5.25 V

Motor

21.6~26.4 V

Dimension (L*W*H)

227.5*127.8*131.45 mm

Weight

Approx 1.92 kg

Reliability

Circuit: over 1,000,000,000 pulses

Cutter: over 7,000,000 cuts

Thermal head: over 100 km

MCBF: 37,000,000 lines

Ambient environment

Work temperature

-10 ℃~50℃

Work humidity

20~85% RH

Storage temperature

-25℃~70℃

Storage temperature

10~90% RH

Controlling board:

Interface

RS-232 /USB/Parallel

power supply

DC 24V/2.5A

Command set

ESC/POS

Barcode

supported

Firmware location

512KB Flash memory

Buffer

32 KB

SRAM

64KB (extra)

Driver

Parallel/USB driver

System

Windows/Android/Linux OS

Accessories:

Sensors

paper near end sensor;

paper jam sensor;

dragging paper sensor;

Paper holding unit;

Paper bezel(paper guide mouth)

Interface connector;

Power supply unit

Cable


Application:

parking system; payment kiosk; ticket vendor; Self-service terminal; coupon machine; ATM; queuing management system; lottery machine; industrial heavy duty printer and more


Competitive Advantage:

  1. high speed
  2. Small order accepted
  3. Buyer label offer
  4. Customization offer
  5. Prompt delivery
  6. Product performance

All In One Structure Kiosk Thermal Printer , Self Service Kiosk Receipt Printer

Thank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
