Low Cost 58mm Thermal Printer Module For 2-Inch Thermal Receipt Printer
Low Cost 58mm Thermal Printer Module For 2-Inch Thermal Receipt Printer
Low Cost 58mm Thermal Printer Module For 2-Inch Thermal Receipt Printer
Low Cost 58mm Thermal Printer Module For 2-Inch Thermal Receipt Printer
Low Cost 58mm Thermal Printer Module For 2-Inch Thermal Receipt Printer
Low Cost 58mm Thermal Printer Module For 2-Inch Thermal Receipt Printer
Low Cost 58mm Thermal Printer Module For 2-Inch Thermal Receipt Printer
Low Cost 58mm Thermal Printer Module For 2-Inch Thermal Receipt Printer
Specifications
Brand Name :
MASUNG
Model Number :
MS-C628
Certification :
CE; ROSH
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T/Paypal/Western union
Supply Ability :
5,000 units/monthly
Delivery Time :
5~8 days
Packaging Details :
carton and foam mterials
Price :
USD20~50/piece
Type :
Printer Pro Solutions
Printing width :
48 mm
Printing speed :
80 mm/s
Paper width :
58 mm
Paper thickness :
60-100 um
Description

customization original printer mechanism 58mm Printer Pro Solutions

Quick Detail:

► Compatible with kinds printer heads

► Compact and light design

► Low power consumption

► Width work voltage DC5~8.5V

► Flexibly integrate in mother system

Description:

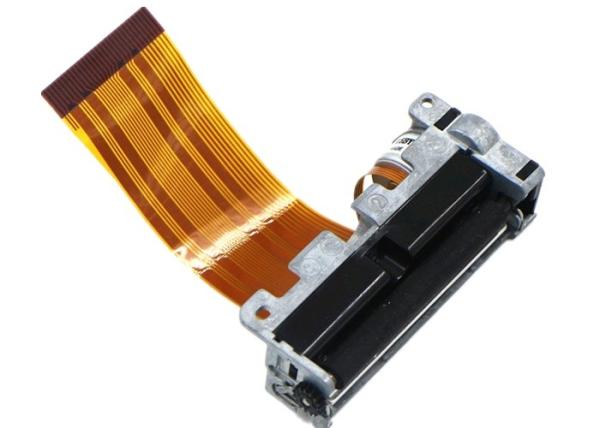

MS-C628 is designed as 2-inch thermal receipt printer solution, it meet all mobile and mini device which needs printer functions. With compact and light design, it is easily built in any equipment systems.

Specification:

Mechanism

MS-C628

Printing method

Thermal dot line printing

Dot structure

384 dots/line

Dot pitch

8 dots/mm

Printing width

48 mm

Printing speed

80 mm/s

Paper width

58 mm

Paper thickness

60-100 um

Paper loading

Easy paper loading

Character size

12*24, 48 characters/line

24*24, 28 characters/line

8*16, 72 characters/line

16*16, 36 characters/line

Power supply

Printer head

4.2~8.5V, 0.87A (Average)

Dynamo

4.2~8.5V, 1A (max)

Logic voltage

2.7V~5.25V, 0.1A (max)

Dimensions (W*D*H)

70.1*21.8*31.0 mm

Weight

43 g

Electric life:

Wear life

More than 110,000,000 pulses

More than 100 km

Ambient condition

Operating temperature

-15 ℃~70℃

Operating humidity

10~85% RH

Storage temperature

-25℃~70℃

Storage humidity

10~90% RH

Sensor

TPH temperature

thermistor

Paper end detection

Photo interrupter

Controlling board

ARM

72MHz

NV flash

2 M bytes

SRAM

20k

Interfaces

RS-232/TTL/USB

Input voltage

5v-9v

Driving printer mechanism:

M-T173, LTP-Z245, FTP628MCL101

Dimension

56*30 mm

Weight

2.3 g

Application:

Handheld pos terminals, mobile printers, PDA, voting machine, medical instruments, pad printer and more.

Competitive Advantage:

Low cost

Product performance

Small order accepted

Customized offer

Buyer label offer

Prompt delivery

OEM offer

Low Cost 58mm Thermal Printer Module For 2-Inch Thermal Receipt PrinterThank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
