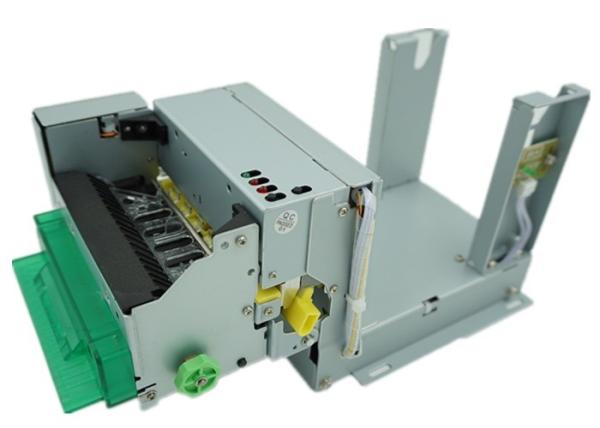

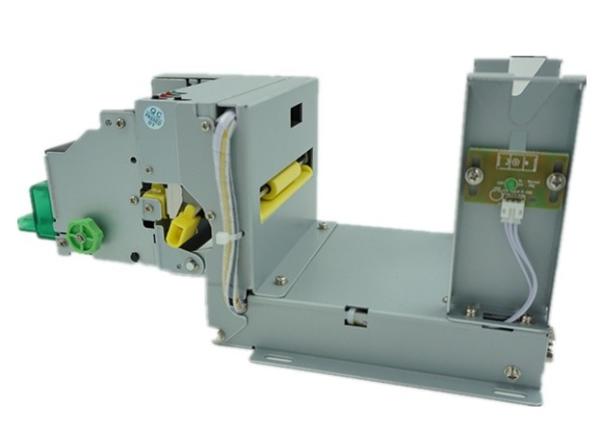

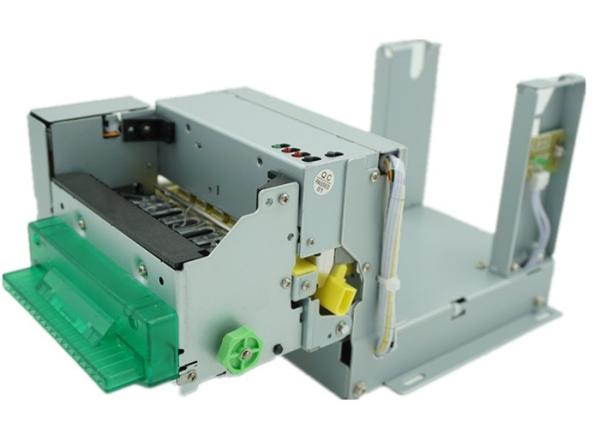

Original Printer Mechanism 3 Inch Kiosk Receipt Printer With Paper Jam Dragged Detection
Original Printer Mechanism 3 Inch Kiosk Receipt Printer With Paper Jam Dragged Detection
Original Printer Mechanism 3 Inch Kiosk Receipt Printer With Paper Jam Dragged Detection
Original Printer Mechanism 3 Inch Kiosk Receipt Printer With Paper Jam Dragged Detection
Original Printer Mechanism 3 Inch Kiosk Receipt Printer With Paper Jam Dragged Detection
Original Printer Mechanism 3 Inch Kiosk Receipt Printer With Paper Jam Dragged Detection
Original Printer Mechanism 3 Inch Kiosk Receipt Printer With Paper Jam Dragged Detection
Original Printer Mechanism 3 Inch Kiosk Receipt Printer With Paper Jam Dragged Detection
Specifications
Brand Name :
MASUNG
Model Number :
MS-D347-TLP
Certification :
CE; ROSH
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T/Paypal/Western union
Supply Ability :
2,000 units/monthly
Delivery Time :
5~8 days
Packaging Details :
carton
mechanism: :
CAPD347
Dots/line :
576 dots/line
Paper width :
80 mm
Paper thickness :
54~78 um
Paper loading :
Easy loading
Dimension (L*W*H) :
119.45*96.13*80.60mm
Type :
3 inch thermal printer
Paper feed direction :
180° horizontal
Interface :
RS-232 /USB/Parallel
Description

original printer mechanism with paper jam dragged detection 3 Inch Thermal Printer

Quick Detail:

  • Brand printer mechanism CAPD347
  • Ultra high speed max200 mm/s
  • Full /partial cutting mode (by adjustable)
  • Windows/Android/Linux system support
  • Paper jam prevention support
  • original printer mechanism
  • with paper jam dragged detection

Description:

MS-D347-TLP is one type panel mount printer which support barcode label printing. QR code , logo and diagram are all available.


Specification:

mechanism:

CAPD347

Printing method

Thermal dot line printing

Dots/line

576 dots/line

Dot pitch

8 dot/mm

Paper width

80 mm

Printing width

72 mm

Paper thickness

54~78 um

Printing speed

170 mm/s

Paper feed direction

180° horizontal

Sensors

Head temperature

Thermistor

Paper press shaft

Mechanical switch

Paper end

Photo interrupter

Paper loading

Easy loading

Font size

ASCII:9*17;12*24;

Chinese: 24*24

Power supply

Logic circuit

4.75~5.25 V

Motor

21.6~26.4 V

Dimension (L*W*H)

119.45*96.13*80.60mm

Weight

Approx 1.92 kg

Reliability

Circuit: over 1,000,000,000 pulses

Cutter: over 7,000,000 cuts

Thermal head: over 100 km

MCBF: 37,000,000 lines

Ambient environment

Work temperature

-10 ℃~50℃

Work humidity

20~85% RH

Storage temperature

-25℃~70℃

Storage temperature

10~90% RH

Controlling board:

Interface

RS-232 /USB/Parallel

power supply

DC 24V/2.5A

Command set

ESC/POS

Barcode

supported

Firmware location

512KB Flash memory

Buffer

32 KB

SRAM

64KB (extra)

Driver

Parallel/USB driver

System

WindowsXP/Win7(32bits or 64 bits)/

Win8/Android/Linux OS

Accessories:

Sensors

paper near end sensor;

paper jam sensor;

dragging paper sensor;

Paper holding unit

Paper guide mouth

Interface connector

Power supply unit

Cable

Application:

Self-service terminal; ATM; CDM; parking system; payment kiosk; coupon machine; automatic call distributor; ticket vendor; inquiry machine; multimedia kiosk, and more

Competitive Advantage:

  • OEM offer
  • Brand-name printer parts
  • Android system support
  • Customization offer
  • Prompt delivery
  • Small order accepted
  • Product performance

Original Printer Mechanism 3 Inch Kiosk Receipt Printer With Paper Jam Dragged DetectionThank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
