Specifications
Brand Name :
MASUNG
Model Number :
MS-FPT301K
Certification :
CE/ROHS
Place of Origin :
CHIAN
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
2000 set per month
Packaging Details :
carton and foam materials
Model :
MS-FPT301K
Printing method :
Thermal dot line printing
Paper width :
80 mm
Print speed :
170 mm/s( max)
Dot density :
8 dots/mm
Total dots per line :
576dots
Printing width :
72mm
Cut method :
Partial cut
Description

Support Windows System Serial USB Ports High Quality Panel Thermal Printer

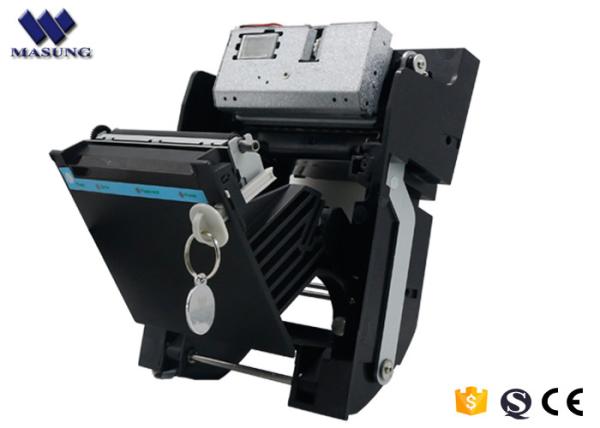

MS-FPT301K 80mm thermal panel printer with “paper roll bucket opening & closing by key"

Features:

Brand name printer mechanism

Super big roll bucket diameter Max 80 mm

Compact front panel mounting

Ultra high printing speed max 200 mm/s

Unique heat dissipation system

Multiple panel LED indication

Available customization case color

Attention:

Before plug in or plug out any interface and sockets, please make sure the printer power is off

Specification:

Model MS-FPT301K

Print

 Printing method Thermal dot line printing
Paper width 80 mm
Print speed 170 mm/s( max)
Dot density 8 dots/mm

Total dots per

line

 576dots
Printing width 72mm
Paper feed method Easy loading
Cutter Cut method Partial cut
Paper thickness 60～120um
Activation pulse resistance 500,000
Detection Thermal head temperature detection Thermal resistance
Out of paper detection Photo interrupter

Operation

voltage

 Working voltage 24±10% V
Power consumption Mean 1.75A(25% of maximum printing dots)

environment

 Operation temperature -10~50 ℃(no condensation)
Operation humidity 20%~85%RH(40℃/85%RH)
Storage temperature -20~60℃(no condensation)
Storage humidity 10%~90%RH(50℃/90%RH)
Mass 780g
Interface Serial/TTL/USB
Current 3A (max)
Abrasion resistance 150 km
Paper roll diameter(max) 80 mm
Dimension (without panel) D139.99mm*W84.31mm*H186.42mm

Application:

Queue management system, visitor attendance terminal, ticket vendor, POS, medical instrument, body scales and more
