Multiple Sensors USB Kiosk Thermal Printer Inverse For Sports Betting Terminal
Multiple Sensors USB Kiosk Thermal Printer Inverse For Sports Betting Terminal
Multiple Sensors USB Kiosk Thermal Printer Inverse For Sports Betting Terminal
Multiple Sensors USB Kiosk Thermal Printer Inverse For Sports Betting Terminal
Multiple Sensors USB Kiosk Thermal Printer Inverse For Sports Betting Terminal
Multiple Sensors USB Kiosk Thermal Printer Inverse For Sports Betting Terminal
Multiple Sensors USB Kiosk Thermal Printer Inverse For Sports Betting Terminal
Multiple Sensors USB Kiosk Thermal Printer Inverse For Sports Betting Terminal
Specifications
Brand Name :
MASUNG
Model Number :
EP802-TM(0A)
Certification :
CE/ROHS
Place of Origin :
CHIAN
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
2,500 units/monthly
Packaging Details :
carton and foam materials
Printing method :
Dot line thermal printing
Printing width :
80mm
Paper width :
80/82.5 mm
Paper thickness :
0.06~0.2 mm
Speed :
250mm/s
Cutting method :
Full/partial
Print head life :
Over 100KM
Printing format :
inverse、underline、italic、bold
Description

80mm Multiple Sensors USB Kiosk Thermal Printer For Gaming Machine

High speed heavy duty kiosk thermal printer

Features:

Sturdy adjustable paper roll bracket (horizontal & vertical mounting)

Wide range paper thickness: from 0.06 ~ 0.2 mm

Brand name thermal head & auto cutter

Ultra Highly printing speed Max 250 mm/s

Smart paper bezel with LEDs

Specification:

Control board EP802_3
Thermal printer head Brand name: ROHM
Auto cutter Brand name: OYANE

Printing

 Printing method Thermal dot line
Dots 640dots
Speed 250mm/s (max)
Printing width 80mm (max)
Paper width 80/82.5 mm
Paper thickness 0.06~0.2 mm
Paper loading Easy loading ( horizontal 180°)
Cutting method Full/partial
Print head life Over 100KM
Printing format inverse,underline,italic,bold

Cutter life

 60μm paper 1,000,000 cuts
200μm paper 500,000 cuts
Baud rate 9600,19200,38400,115200
Font ASCII 9*17,12*24
Chinese 24*24dots
Detection TPH temperature Temperature sensor
Mechanism open detection Micro switch
“anti-drag ticket detection Mechanical sensor
Paper blocked detection
Paper near end detection Photo-interrupter
Black mark detection
Paper cutting detection
Paper presence detection
Conditions Power supply DC24±10% V
Load current

1.5A continuous

61mA Standby

3.2 A Peak
Interfaces RS232,USB
Paper Paper type Thermal paper roll
Recommended paper type

KANZAN KF50

KP460

MITSUBISHIPG5075

TL4000
Environment operating temperature -10~60℃(no condensation)
operating humidity 20%~80%RH(40℃,85%RH)
Storage temperature -20~70℃(no condensation)
Storage humidity 10%~90%RH(50℃,90%RH)
Dimension Paper holder 45° upward ( 150mm paper roll) L*W*H=219.5*119.30*87.3mm
Paper holder horizontal (150 mm paper roll) L*W*H=294.5*119.30*87.5mm
Paper roll vertical (150 mm paper roll) L*W*H=154.2*119.30*258.6mm
Weight Approx 1.45kg (without paper roll )

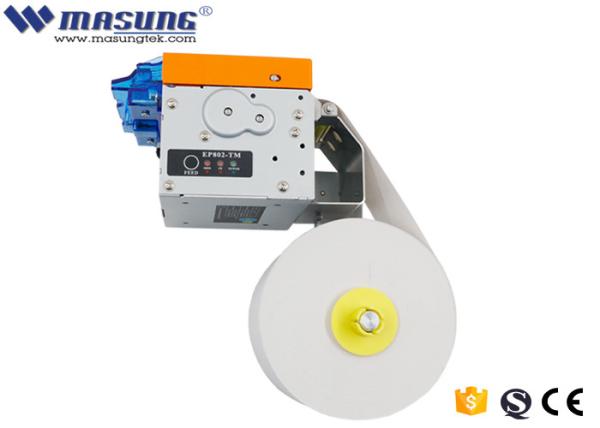

The EP802-TM printing module use ROHM thermal head, which has high print speed, low noise, high reliability and good print quality, Also it can cut thicker paper. Besides so many advantages, its compact structure makes it easy to be installed and maintained.

USB support USB2.0 high-speed and full-speed .Standard USB ports are implemented using the standard series B socket defined in the USB specification.

Multiple Sensors USB Kiosk Thermal Printer Inverse For Sports Betting Terminal

Application:

Sports betting terminal; video lottery machine; gaming kiosk, payment kiosks; ATM; parking system; ticket vendor, airport boarding check printer, ATB tags printer and more
