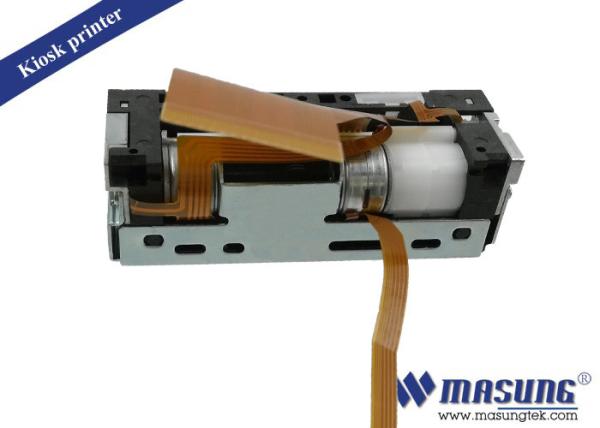

Low Noise Thermal Printer Mechnism Small Size 48mm For Weighing Scales
Low Noise Thermal Printer Mechnism Small Size 48mm For Weighing Scales
Low Noise Thermal Printer Mechnism Small Size 48mm For Weighing Scales
Low Noise Thermal Printer Mechnism Small Size 48mm For Weighing Scales
Low Noise Thermal Printer Mechnism Small Size 48mm For Weighing Scales
Low Noise Thermal Printer Mechnism Small Size 48mm For Weighing Scales
Low Noise Thermal Printer Mechnism Small Size 48mm For Weighing Scales
Low Noise Thermal Printer Mechnism Small Size 48mm For Weighing Scales
Specifications
Brand Name :
MASUNG
Model Number :
MS-2R-22
Certification :
ROSH/3C/OS
Place of Origin :
China
MOQ :
1
Price :
USD 39~89 /piece
Supply Ability :
50000 pieces /month
Delivery Time :
3~5 work days
Packaging Details :
Foam+carton +printer mechanism +standard accessories
Print method :
Thermal dot line printing
Effective printing width :
48mm
Heater resolution :
8 dot/mm
Printing dots of per line :
384 dots
Paper width :
58 mm
Printing speed :
100 mm/s
Paper out detection :
Via photo interrupter
Tractive force to paper :
≥50gf ( 0.49N)
Description

1.Details of Thermal Printer Mechanism

It makes the printing more evenly and operating more stable. This printer mechanism is with the features of small size, wide operating voltage, fast printing speed, high printing efficiency, long printing life, low noise, special vertical structure design etc. These features make the printer easy paper loading, high reliability and saving the product space.

2.Highlights of Thermal Printer Mechanism

Easy paper loading

Automatic paper cutting

High printing speed: Max 100mm/s (motor driving voltage is DC 8.5V)

Wide printing voltage (3.5～8.5 DC V)

Long mechanical wear life(more than 50km)

High printing precision (8dots/mm)

Low noise:brushless magnetic excitation step motor driving, composed of special engineering plastic gears with High Abrasion Proof and High and low temperature resistance, make the extremely low transmitting noise.

Applicability: this mechanism is compatible with Seiko CAPD245-E on installation structure and electrical interface; it can be used in Mini Thermal Paper Printer, Thermal Paper Printing ECR etc.

3.Specifications of Thermal Printer Mechanism

Item Specification
Print Method Thermal dot line printing
Print width(mm) 48
Precision(dots/mm) 8
Dots per line 384dots/line
Paper width(mm) 58
Dot pitch (mm) 0.125
Dot sizes 0.125mmx0.12mm
Max print speed 100mm/s (motor driving voltage is 8.5 V. )
Feeding accuracy 0.03125mm
Head temperature detection Via Thermistor
Paper out Detection Via photo interrupter
Printer roller in place detection Mini detection switch
Cutter reset detection Photoelectric switch
Head driving voltage(DCV) 3.13~8.5
Head logic voltage(DCV) 2.7～5.25
Motor driving voltage(DCV) 3.5~8.5
Operation temperature +0℃~50℃(No condensation)
Operation humidity 20%~85%RH(No condensation)
Storage temperature -20℃~60℃(No condensation)
Storage humidity 5%~95%RH(No condensation)
Noise Less than 60dB(A-weighted RMS)
Tractive force to paper ≥50gf ( 0.49N)
Grasping braking force to paper ≥80gf ( 0.49N)
Working life Mechanical structure and print head Wear life is more than 50km, electrical life of the print head is 100 million pulses or more ( In the rated condition)
Automatic cutter 500 thousand times
Weight(g) 120g
Dimensions(L*W*H) (83.1±0.2mm )* (43.9±0.2mm )* (27.4±0.2mm )

4.Applications

Low Noise Thermal Printer Mechnism Small Size 48mm For Weighing ScalesLow Noise Thermal Printer Mechnism Small Size 48mm For Weighing ScalesLow Noise Thermal Printer Mechnism Small Size 48mm For Weighing Scales
