Specifications
Brand Name :
MASUNG
Model Number :
MS-3R-01RS
Certification :
ROSH/3C/OS
Place of Origin :
China
MOQ :
1
Price :
USD 39~89 /piece
Supply Ability :
50000 pieces /month
Delivery Time :
3~5 work days
Packaging Details :
Foam+carton +printer mechanism +standard accessories
Printing width :
72 mm
Printing Speed :
60 mm/s
Dot pitch :
0.125 mm
Paper accuracy :
0.0625
Paper head working Voltage :
4~8.5 v
Motor Voltage :
4.2~8.5 V
Description

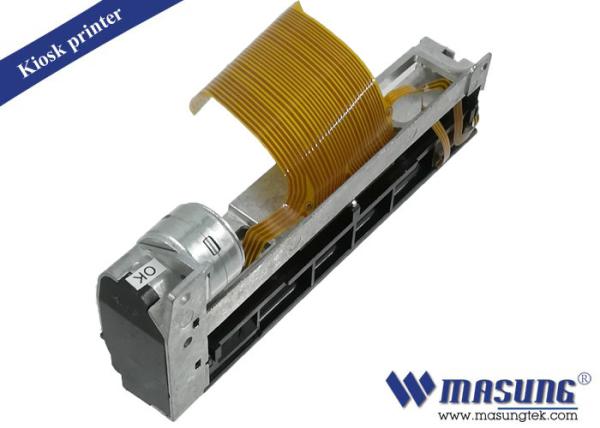

1.Details of Thermal Printer Mechanism

It is a compact size 3 inch thermal printer mechanism .Easy paper loading ,high printing speed make it very popular .Moreover ,this thermal printer mechanism also supports QR CODE ,BARCODE and bitmap printing.

2.Highlights of Thermal Printer Mechanism

Easy paper loading

Automatic paper cutting

High printing speed: Max 100mm/s (motor driving voltage is DC 8.5V)

Wide printing voltage (3.5～8.5 DC V)

Long mechanical wear life(more than 50km)

High printing precision (8dots/mm)

3.Specifications of Thermal Printer Mechanism

Item Specifications
Print method Thermal dot line printing
Printing width(mm) 72
Heater resolution(dot/mm) 8
Printing Dots of per line 576dots/linej
Paper width (mm) 80
Dot pitch(mm) 0.125mm
Dot size 0.125mm x 0.12mm
Printing speed(MAX) 60mm/s(at 8.5 V motor voltage)
Paper accuracy 0.0625mm
Thermal head temperature detection Via thermistor
Paper detection Via photo interrupter
Printer head working voltage(V) 4~8.5
Logic voltage(V) 2.7~5.25
Motor voltage 4.2~8.5
Operating temperature +0℃~50℃(no gel)
Operating humidity 20%~85%RH(no gel)
store temperature -20℃~60℃(no gel)
store humidity 5%~95%RH(no gel)
Machine noise <60dB
Platen open-close times >5000 times
Thermal paper traction force ≥50g
Thermal paper grasp brake force ≥80g
Printing life >50km
Electric life One hundred-million pulses (under our standard printing conditions.)
Mass(g) About 50g
Outline dimension(D x W x H) 92.4mm x 32.9mm x 15.4mm


Metal Frame Ticket Printer Mechanism Easy Paper Loading For Medical EquipmentMetal Frame Ticket Printer Mechanism Easy Paper Loading For Medical EquipmentMetal Frame Ticket Printer Mechanism Easy Paper Loading For Medical Equipment
