Specifications
Brand Name :
MASUNG
Model Number :
EP802-TMP
Certification :
CE/ROHS
Place of Origin :
CHIAN
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
2,500 units/monthly
Packaging Details :
carton and foam materials
Paper thickness :
0.06~0.2 mm
Printing width :
80mm
Cutting method :
Full/partial
Printing method :
Dot line thermal printing
Speed :
250mm/s
Paper width :
60/80/82.5 mm
Print head life :
100Km
Weight :
About 1.49 KG
Description

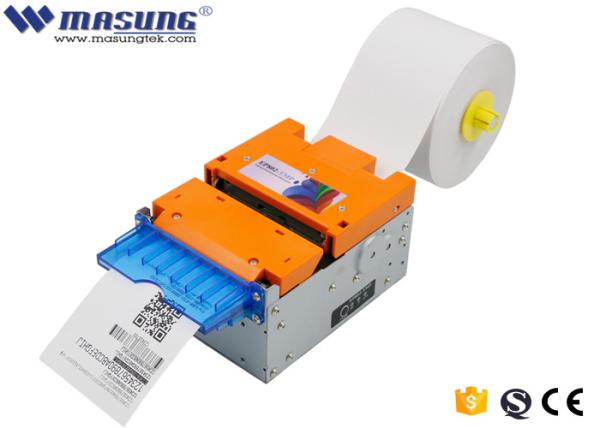

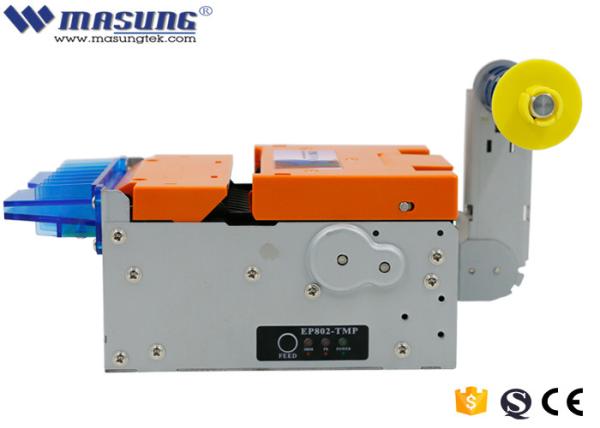

Multiple installing angles 80mm kiosk thermal printer for self kiosks

The Masung EP802-TMP has been developed for a wide range of applications to meet all Customers’ needs ,across the Sports Betting ,Gaming and Lottery ,Kiosks ,Parking Systems and other sectors

The TMP offers flexibility for OEMs to provide users with the ideal printer to suit multiple cabinet styles .With a fully integrated presenter ,the EP802-TMP ensures delivery of the perfect ticket or receipt .

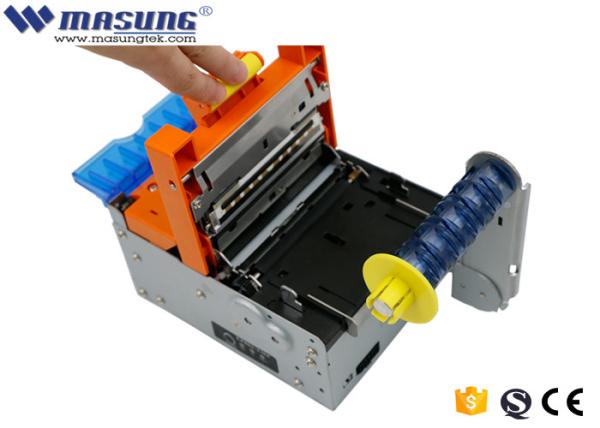

EP802-TMP users benefits from easy accessibility to the rear of the printer ,ensuring auto paper loading ,and the routine service is simple &time-efficient.

Features:

Brand name thermal head &auto cutter

Ultra highly printing speed Max 250 mm/s

Variable length ticket presenter

Ticket retracting capability

Smart LED bezel

Specification:

Module EP802-TMP
Control board EP802_3
Thermal printer head Brand name: ROHM
Auto cutter Brand name: OYANE

Printing

 Printing method Thermal dot line
Dots 640dots
Speed 250mm/s (max)
Printing width 80mm (max)
Paper width 60/80/82.5 mm
Paper thickness 0.06~0.2 mm
Paper loading Easy loading ( horizontal 180°)
Cutting method Full
Print head life 100KM
Printing format inverse,underline,italic,bold

Cutter life

 60μm paper 1,000,000 cuts
200μm paper 500,000 cuts
Baud rate 9600,19200,38400,115200
Font ASCII 9*17,12*24
Chinese 24*24dots
Detection TPH temperature Temperature sensor
Mechanism open detection Micro switch
Paper presence detection Mechanical sensor
Ticket out detection
Paper near end detection Photo-interrupter
Black mark detection
Paper cutting detection
Paper retracting detection
Conditions Power supply DC24±10% V
Load current

1.5A continuous

61mA Standby

3.2 A Peak
Interfaces RS232,USB
Paper Paper type Thermal paper roll
Recommended paper type

KANZAN KF50

KP460

MITSUBISHIPG5075

TL4000
Environment operating temperature -10~60℃(no condensation)
operating humidity 20%~80%RH(40℃,85%RH)
Storage temperature -20~70℃(no condensation)
Storage humidity 10%~90%RH(50℃,90%RH)
Dimension Paper holder 45° upward ( 150mm paper roll) L*W*H=328*122.3*163 mm
Paper holder horizontal (150 mm paper roll) L*W*H=355*122.3*288 mm
Paper roll vertical (150 mm paper roll) L*W*H=196*122.3*288 mm
Weight Approx 1.49kg(without paper roll )

Application:

Sports betting terminal; video lottery machine; gaming kiosk;ATM; parking system; ticket vendor, airport boarding check Printer and more.
