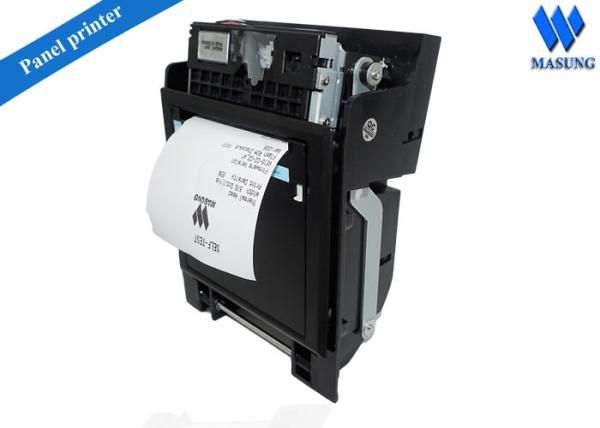

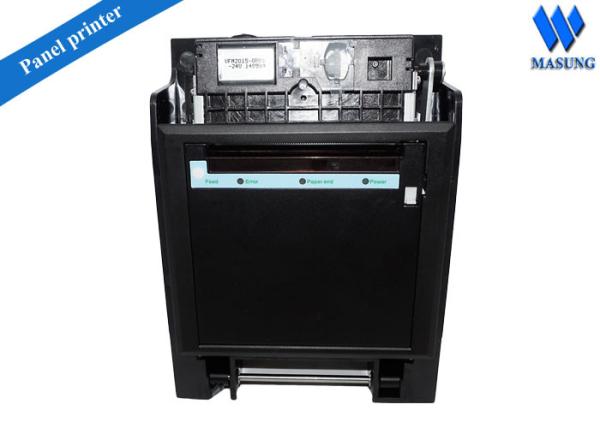

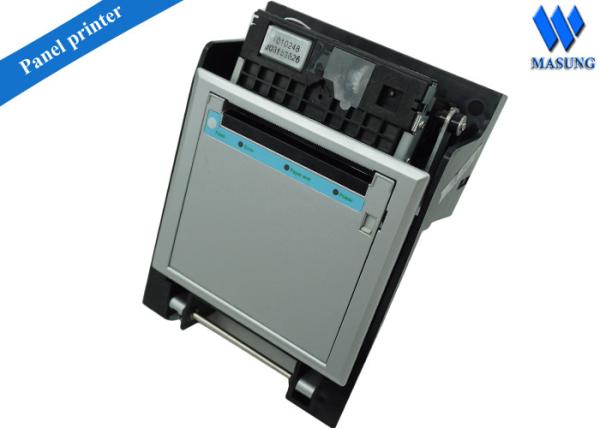

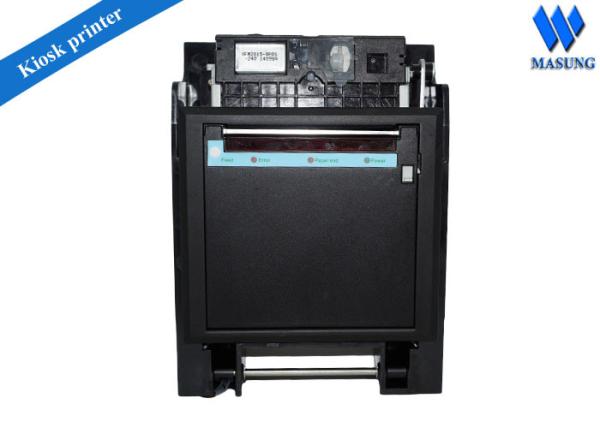

3 Inch Thermal Kiosk Printer / 58mm Portable Mini Thermal Printer Front Panel Mounted Structure
3 Inch Thermal Kiosk Printer / 58mm Portable Mini Thermal Printer Front Panel Mounted Structure
3 Inch Thermal Kiosk Printer / 58mm Portable Mini Thermal Printer Front Panel Mounted Structure
3 Inch Thermal Kiosk Printer / 58mm Portable Mini Thermal Printer Front Panel Mounted Structure
3 Inch Thermal Kiosk Printer / 58mm Portable Mini Thermal Printer Front Panel Mounted Structure
3 Inch Thermal Kiosk Printer / 58mm Portable Mini Thermal Printer Front Panel Mounted Structure
3 Inch Thermal Kiosk Printer / 58mm Portable Mini Thermal Printer Front Panel Mounted Structure
3 Inch Thermal Kiosk Printer / 58mm Portable Mini Thermal Printer Front Panel Mounted Structure
Specifications
Brand Name :
MASUNG
Model Number :
MS-FPT301
Certification :
CE; ROSH
Place of Origin :
China
MOQ :
1
Price :
USD1~200/piece
Payment Terms :
T/T/Western union
Supply Ability :
5,000 units/monthly
Delivery Time :
5~8 days
Packaging Details :
cartons and foam materials
Printing method :
Thermal dot line
Dot numbers（dots/line） :
640 dots/line
Resolution （dots/mm） :
8 dot/mm
Printing speed（mm/s）max :
200 mm/s
Paper thickness :
60～80 μm
Auto cutting :
YES
Working voltage(Vp) :
DC 24V
Cutter life (cuts) :
1,200,000
Interface :
RS-232C/USB
Driver :
Windows/Linux/Android OS
Description

3 Inch Thermal Kiosk Printer / 58mm Portable Mini Thermal Printer Front Panel Mounted Structure

Features:

  • Unique locker design
  • Brand name printer mechanismLTP347
  • Super big roll bucket diameter Max 80 mm
  • Compact front panel mounted structure
  • Ultra high printing speed max 200 mm/s
  • “anti-static” circuit design
  • Multiple panel LED indication
  • Available customization shell color
  • 3inch paper width
  • OEM&ODM offer

Specification

Model MS-FPT301

Mechanism

 Printing method Thermal dot line
Dot numbers(dots/line) 640 dots/line
Resolution (dots/mm) 8 dot/mm
Printing speed(mm/s)max 200 mm/s
Paper width(mm) 80
Printing width(mm) 80
Roll diameter max Φ80 mm
Paper thickness 60～80 μm
Paper loading method Easy loading
Auto cutting YES
sensor Printer head thermistor
Paper end Photo interrupter
Power feature Working voltage(Vp) DC 24V
Power consumption 1.75A(average)
Peak current 4.64A
Environment Working temperature 5～45℃
Working humidity 20～85%RH
Storage temperature -20～60℃
Storage humidity 5～95%RH
Reliability Cutter life (cuts) 1,200,000
Pulse 100,000,000
Printing length(km) Over 150
Property Dimension (mm) 84×139×186
Weight (g) 760 ±10
Support Interface RS-232C/USB
Commands ESC/POS
Driver Windows/Linux/Android OS

Application:

Queue management system, visitor attendance terminal, ticket vendor, POS, medical instrument, body scales and more

3 Inch Thermal Kiosk Printer / 58mm Portable Mini Thermal Printer Front Panel Mounted Structure!Thank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
