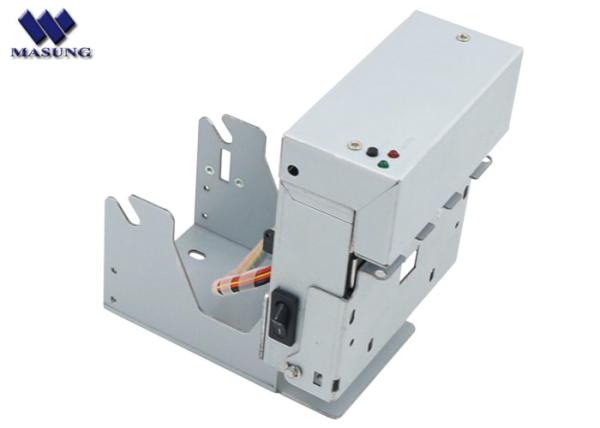

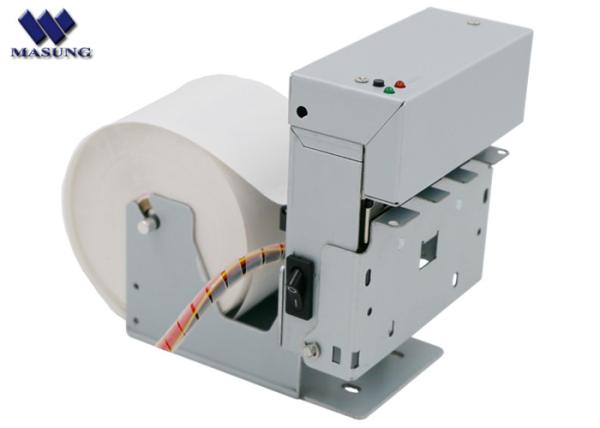

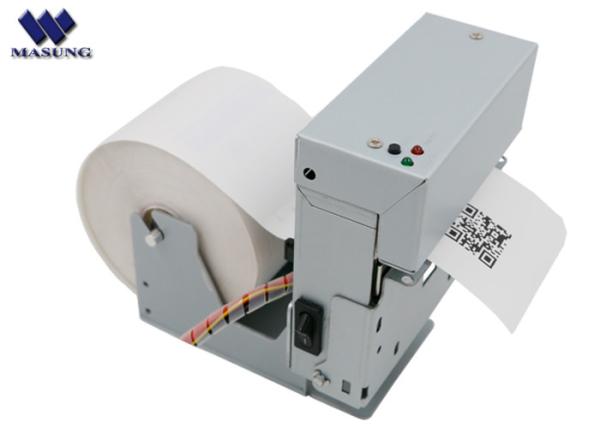

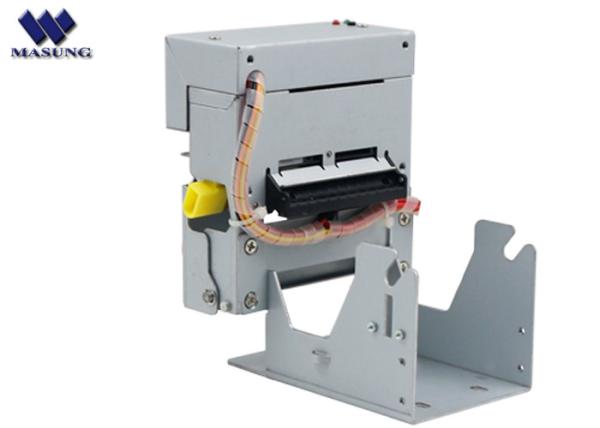

2 Inch Ultra High Speed Kiosk Receipt Printer Auto Cutter Thermal Printer
2 Inch Ultra High Speed Kiosk Receipt Printer Auto Cutter Thermal Printer
2 Inch Ultra High Speed Kiosk Receipt Printer Auto Cutter Thermal Printer
2 Inch Ultra High Speed Kiosk Receipt Printer Auto Cutter Thermal Printer
2 Inch Ultra High Speed Kiosk Receipt Printer Auto Cutter Thermal Printer
2 Inch Ultra High Speed Kiosk Receipt Printer Auto Cutter Thermal Printer
2 Inch Ultra High Speed Kiosk Receipt Printer Auto Cutter Thermal Printer
2 Inch Ultra High Speed Kiosk Receipt Printer Auto Cutter Thermal Printer
Specifications
Brand Name :
MASUNG
Model Number :
MS-D247
Certification :
CE;ROHS
Place of Origin :
CHIAN
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
2500 set per month
Packaging Details :
carton and foam materials
Printing method :
Dot line thermal printing
FONT A :
12*24dots
FONT B :
9*17dots
Thermal head temperature :
Thermal sensors
Thermal head switch :
Mechanical switch
Working voltage :
24V±10%
Power consumption :
Mean 2.5A
Paper feed :
Auto loading
Description

2 Inch Ultra High Speed High Quality Auto Cutter Thermal Printer

MS-D245 / MS-D247 are thermal dot line printers. They are all have many practical functions and very wide rang of applications.

Features:
Dot line thermal printing
Auto loading
Full cut/partial cut
Windows/Android/Linux system support

Specification:

Model

MS-D245

MS- D247


print

Printing method

Dot line thermal printing

Total dots per
line

384 dots

432dots

Printing speed

100mm/s

200mm/s

Printing width

48mm

54mm

Paper width

58±0.5mm

Paper thickness

56～105μm

character

FONT A

12*24dots

FONT B

9*17dots

GB18030 Chinese

24*24dots

GB2312 Chinese

16*16dots

Detection

Thermal head temperature

Thermal sensors

Thermal head switch

Mechanical switch

Out of Paper detection

Reflective infrared light sensor

Cutter detection

photoelectric sensor

condition

Working voltage

9～24V

24V±10%

Power consumption

Mean 1.75A

Mean 2.5A

Transient maximum current

5.5A(max)

6.0A(max)

Paper

Paper feed

Auto loading

Paper cut

Full cut/partial cut

environment

Operation temperature

-10～60°C(no condensation)

-10～50°C(no condensation)

Storage temperature(240hours)

-20～70°C(no condensation)

-20～60°C(no condensation)

Humidity

10%～85%RH(40°C/85%RH)

Daily storage

5～35℃,
40%～70%RH

Service life

Activation pulse
resistance

100,000000

Abrasion
resistance

50KM

100km

Dimension

About W127mm*D90mm*H103.5mm
(width*depth*height)

About W91.4mm*D52mm*H97.5mm
(width*depth*height)

Mass

125g

125g

Communication interface

Serial & USB


Attention:
Before plug in or plug out any interface and sockets, please make sure the printer power switch is off.
