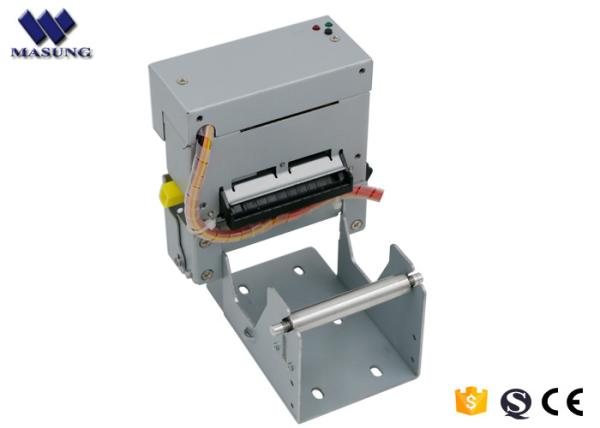

Fast Speed 2 Inch Ticket Printing Machine Support Serial Interface Type Thermal
Fast Speed 2 Inch Ticket Printing Machine Support Serial Interface Type Thermal
Fast Speed 2 Inch Ticket Printing Machine Support Serial Interface Type Thermal
Fast Speed 2 Inch Ticket Printing Machine Support Serial Interface Type Thermal
Fast Speed 2 Inch Ticket Printing Machine Support Serial Interface Type Thermal
Fast Speed 2 Inch Ticket Printing Machine Support Serial Interface Type Thermal
Fast Speed 2 Inch Ticket Printing Machine Support Serial Interface Type Thermal
Fast Speed 2 Inch Ticket Printing Machine Support Serial Interface Type Thermal
Specifications
Brand Name :
MASUNG
Model Number :
MS-D247
Certification :
CE/ROHS
Place of Origin :
CHIAN
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
2000 set per month
Packaging Details :
carton and foam materials
Model :
MS- D247
Printing method :
Dot line thermal printing
Total dots per line :
432dots
Printing speed :
200mm/s
Printing width :
54mm
Paper width :
58±0.5mm
Paper thickness :
56～105μm
Activation pulse resistance :
100,000000
Description

Support Serial Interface Type Thermal Fast Speed 2 Inch Ticket Printing Machine

Features:

Dot line thermal printing

Auto loading

Full cut/partial cut

Windows/Android/Linux system support

Specification:

Model MS-D245 MS- D247

print

 Printing method Dot line thermal printing

Total dots per

line

 384 dots 432dots
Printing speed 100mm/s 200mm/s
Printing width 48mm 54mm
Paper width 58±0.5mm
Paper thickness 56～105μm
character FONT A 12*24dots
FONT B 9*17dots
GB18030 Chinese 24*24dots
GB2312 Chinese 16*16dots
Detection Thermal head temperature Thermal sensors
Thermal head switch Mechanical switch
Out of Paper detection Reflective infrared light sensor
Cutter detection photoelectric sensor
condition Working voltage 9～24V 24V±10%
Power consumption Mean 1.75A Mean 2.5A
Transient maximum current 5.5A(max) 6.0A(max)
Paper Paper feed Auto loading
Paper cut Full cut/partial cut
environment Operation temperature -10～60°C(no condensation) -10～50°C(no condensation)
Storage temperature(240hours) -20～70°C(no condensation) -20～60°C(no condensation)
Humidity 10%～85%RH(40°C/85%RH)
Daily storage

5～35℃,

40%～70%RH
Service life

Activation pulse

resistance

 100,000000

Abrasion

resistance

 50KM 100km
Dimension

About W127mm*D90mm*H103.5mm

(width*depth*height)

About W91.4mm*D52mm*H97.5mm

(width*depth*height)
Mass 125g 125g
Communication interface Serial & USB

Special attention:
MS-D245 and MS-D247 are thermal dot line printers. They are all have many practical functions and very wide rang of applications.
