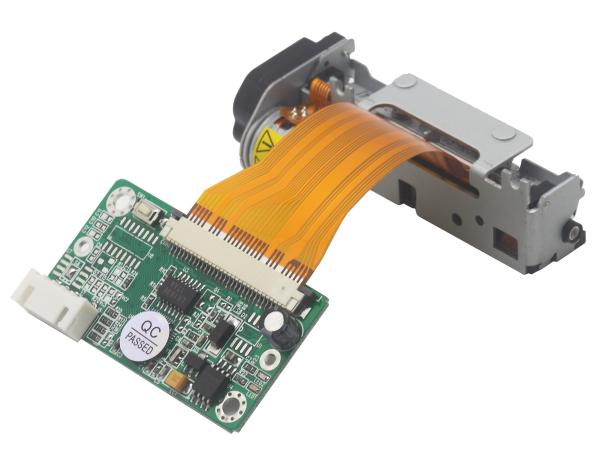

Compact 2 Inch Mechanism MS628 USB Thermal Printer Module With LAN / RS-232 Interface

Specifications

Place of Origin :

China

Brand Name :

MASUNG

Certification :

CE; ROSH

Model Number :

MS-C628

MOQ :

Packaging Details :

carton and foam materials

Delivery Time :

5~8 days

Payment Terms :

T/T/Paypal/Western union

Supply Ability :

5,000 units/monthly

Price :

USD20~50/piece

Printing method :

Thermal dot line printing

Dot structure :

384 dots/line

Printing width :

48 mm

Printing speed :

80 mm/s

Paper width :

58 mm

Paper thickness :

60-100 um

Dimensions (W*D*H) :

70.1*21.8*31.0 mm

Interfaces :

RS-232/TTL/USB

Input voltage :

5v-9v

Electric life: :

More than 110,000,000 pulses

Description

Compact 2 Inch Mechanism MS628 USB Thermal Printer Module With LAN / RS-232 Interface

Quick Detail:

► Barcodes support

► Compact and light design

► Circuit production design

► Width work voltage DC5~8.5V

► Flexibly integrate in mother system

► TTL/RS-232/USB interfaces are available

Description:

MS-C628(a) is designed as 2 inch thermal printer solution, it meet all mobile and portable device which needs printer application. it is easily integrated with handheld pos terminal with TTL port.

Specification:

Mechanism			MS628
Printing method			Thermal dot line printing
Dot structure			384 dots/line
Dot pitch			8 dots/mm
Printing width			48 mm
Printing speed			80 mm/s
Paper width			58 mm
Paper thickness			60-100 um
Paper loading			Easy paper loading
Character size			12*24, 48 characters/line
			24*24, 28 characters/line
			8*16, 72 characters/line
			16*16, 36 characters/line
Power supply	Printer head		4.2~8.5V, 0.87A (Average)
	Dynamo		4.2~8.5V, 1A (max)
	Logic voltage		2.7V~5.25V, 0.1A (max)
Dimensions (WDH)			70.121.831.0 mm
Weight			43 g
Electric life: Wear life			More than 110,000,000 pulses More than 100 km
Ambient condition	Operating temperature		-15 ℃~70℃
	Operating humidity		10~85% RH
	Storage temperature		-25℃~70℃
	Storage humidity		10~90% RH
Sensor	TPH temperature		thermistor
	Paper end detection		Photo interrupter
Controlling board
ARM		72MHz
NV flash		2 M bytes
SRAM		20k
Interfaces		RS-232/TTL/USB
Input voltage		5v-9v
Driving printer mechanism:		M-T173, LTP-Z245, FTP628MCL101
Dimension		56*30 mm
Weight		2.3 g

Application:

Handheld pos terminals, mobile printers, PDA, voting machine, medical instruments, bluetooth printer and more.

Competitive Advantage:

ODM offer
Buyer label offer
Prompt delivery
Product performance
Small order accepted
Customized offer

Compact 2 Inch Mechanism MS628 USB Thermal Printer Module With LAN / RS-232 Interface Thank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
